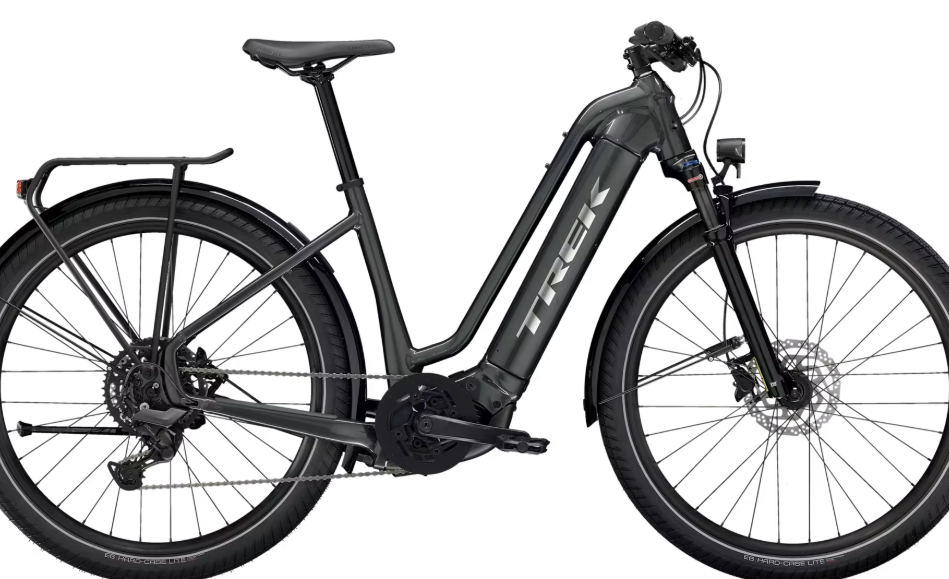

2025 Trek Allant+ 7 Lowstep Gen 2 – Electric Hybrid Bike
Specifications
|
Specification |
Details |
|
Model |
Allant+ 7 Lowstep Gen 2 |
|
Vehicle Category |
Electric Hybrid Bike |
|
Application |
Commuting, city riding, light off-road adventures |
|
Starting Price (2025) |
$3,299.99 USD |
|
Color Options |
Lithium Grey, Greydark |
|
Sizes |
S, M, L |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Alpha Platinum Aluminum, lowstep, internal cable routing, flat mount disc, rack and fender mounts, 12x148mm thru axle |
|
Fork |
SR Suntour Mobie 45, coil spring, 60mm travel, 15x100mm thru axle |
|
Drivetrain Compatibility |
Shimano Deore, 1x10-speed, mechanical |
|
Dropouts |
15x100mm thru axle (F), 12x148mm thru axle (R) |
|
Crank |
FSA Bosch CK-220, 36T, 170mm (S, M, L) |
|
Chain |
Shimano LG500, 9/10/11-speed |
|
Rear Derailleur |
Shimano Deore M5120, 10-speed, mechanical |
|
Shifters |
Shimano Deore M4100, 10-speed, mechanical |
|
Cassette |
Shimano Deore M4100, 11-46T, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
Bontrager Commuter, 165mm width |
|
Fuel Type |
Electric (Bosch Performance Line CX motor) |
|
Cargo Capacity |
MIK-compatible rear rack (25kg capacity), front rack mounts, fender mounts, downtube water bottle mounts |
|
Wheels/Tyres |
Bontrager H2 Comp, 27.5x2.00", puncture-resistant |
|
Wheel Size |
27.5" in |
|
Brakes |
Shimano MT200, hydraulic disc, flat mount, 180mm rotor (F, R) |
|
Brake Levers |
Shimano MT201, hydraulic |
|
Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 660mm width (S), 690mm width (M, L) |
|
Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm (S), 70mm (M), 80mm (L) |
|
Headset |
1-1/8" threadless, sealed cartridge bearings |
|
Saddle |
Bontrager Commuter, 165mm width |
|
Seatpost |
Bontrager alloy, 31.6mm, 12mm offset, 330mm length (S, M), 400mm length (L) |
|
Seatpost Clamp |
Integrated, internal |
|
Grips |
Bontrager Satellite, ergonomic |
|
Front Hub |
Bontrager alloy, sealed bearing, 15x100mm thru axle |
|
Rear Hub |
Bontrager alloy, sealed bearing, 12x148mm thru axle |
|
Rims |
Bontrager H2 Comp, 27.5", 32-hole |
|
Spokes |
14g stainless steel |
|
Pedals |
Wellgo VPE-537, platform, plastic |
|
Exterior Features |
MIK-compatible rear rack (25kg capacity), front rack mounts, fender mounts, downtube water bottle mounts, integrated lights, kickstand mount |
|
Motor |
Bosch Performance Line CX, 85Nm, 250W continuous power, 20mph/32kph max assist (Class 1) |
|
Battery |

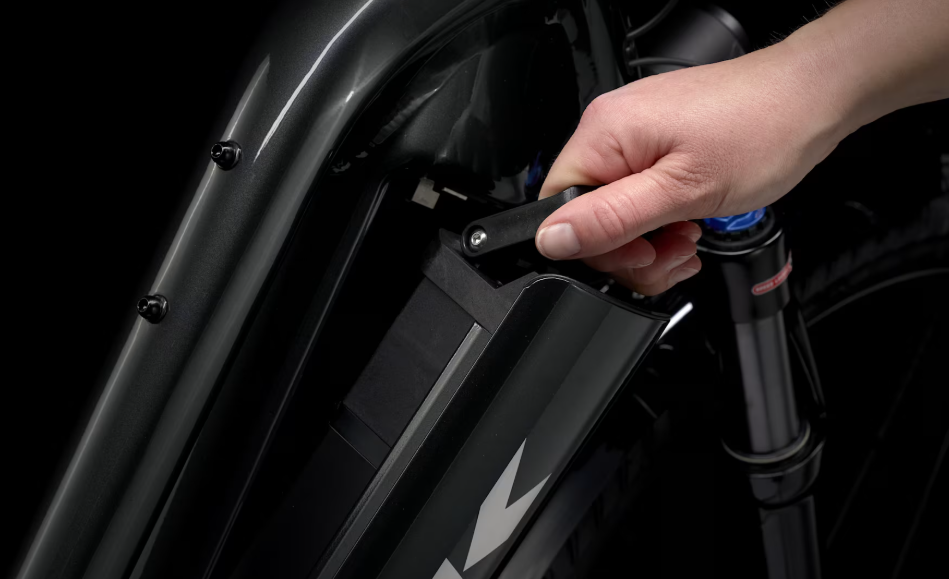

Bosch PowerTube 500Wh, integrated, removable |
|
Controller |

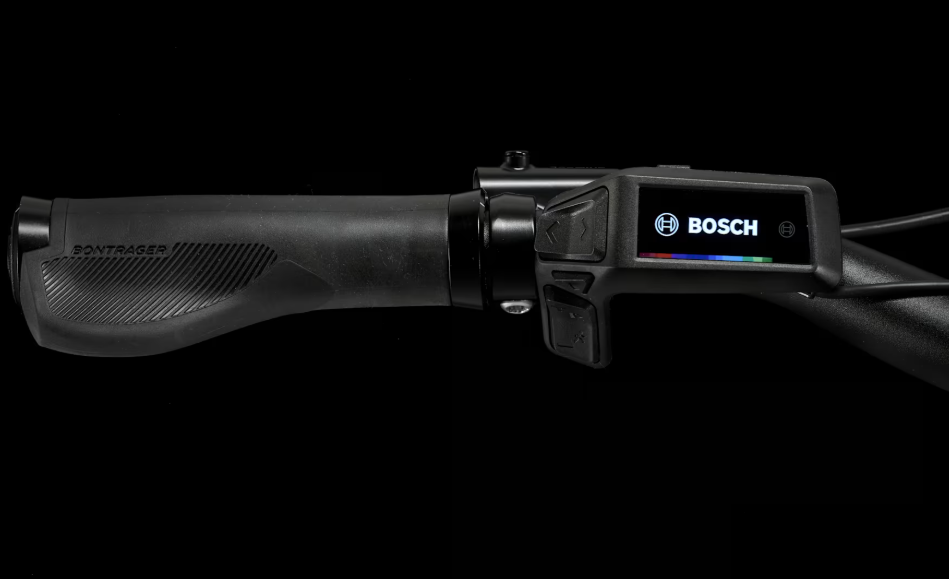

Bosch SmartphoneGrip with Kiox 300 display, 4 assist modes (Eco, Tour, eMTB, Turbo), walk assist |
|
Charger |
Bosch 4A charger |
