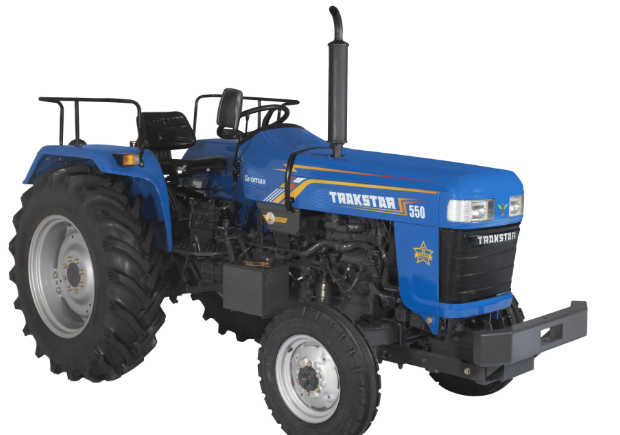

Trakstar 550 – Agricultural Tractor by Trakstar
Specifications
|
Specification |
Details |
|
Tractor Model |
550 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Cylinder, Liquid Cooled |
|
Engine Power |
50 HP |
|
Number of Cylinders |
Four |
|
Bore/Stroke |
88.9/120 mm |
|
Engine Capacity |
2979 CC |
|
Engine Rated RPM |
2200 |
|
Air Cleaner |
Dry Type |
|
Clutch |
Single Diaphragm / Dual Clutch |
|
Transmission Type |
Partial Constant Mesh |
|
Number of Gears |
8 Forward + 2 Reverse with High-Low Selector |
|
Speed Range |
Forward: 3.2–32.4 km/h (with 14.9 x 28 tyres) |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Multi-Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 inches / 7.50 x 16 inches |
|
Rear Tyres |
14.9 x 28 inches / 16.9 x 28 inches |
Components & Features
|
Specification |
Details |
|
Drive |
2WD |
|
Maximum Lifting Capacity |
1590 kg |
|
Hydraulics Type |
High-Tech, Fully Live with Position and Draft Control Lever |
|
Power Take Off |
Rear-Mounted, 6 Splines, 540 RPM |
|
Total Weight |
1930/2020 kg ± 25 (Unballasted) |
|
Fuel Tank Capacity |
50 Litres |
|
Additional Features |
Ergonomic Controls |
|
Wheel Base |
1940 mm |
|
Overall Length |
3450 mm |
|
Overall Width |
1830 mm |
|
Height |
2295 mm ± 25 |
