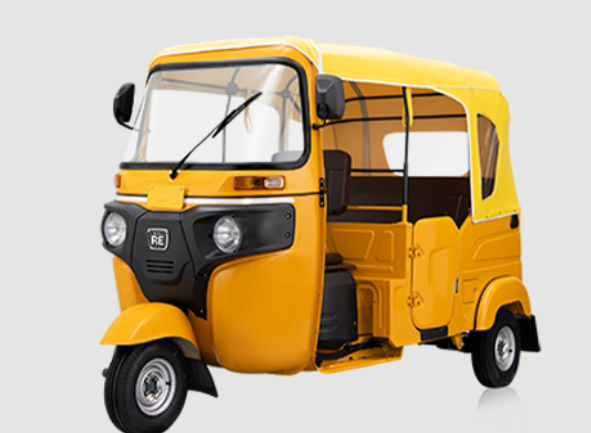

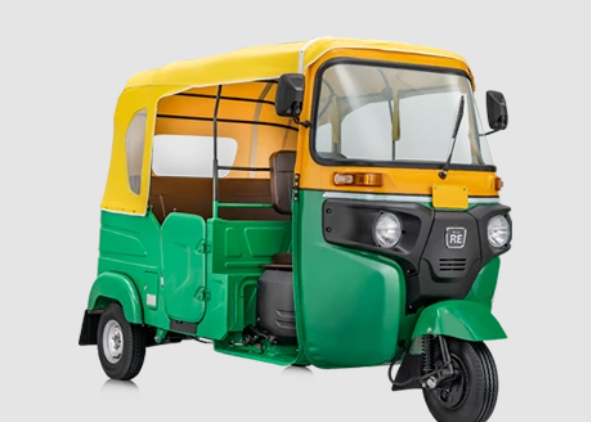

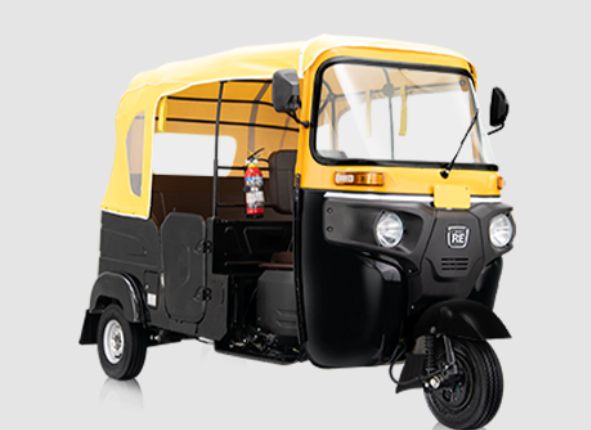

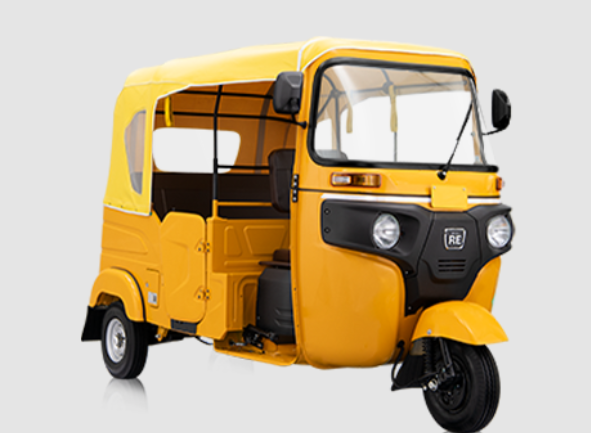

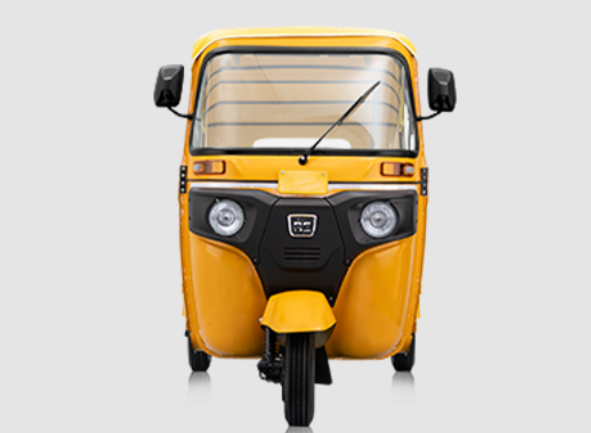

Bajaj RE Compact 4S 2025 – Reliable Passenger Three-Wheeler for Urban Mobility
Full Specifications
|
Specification |
Details |
|
Engine |
236.2cc (Petrol/CNG/LPG), 470.5cc (Diesel), 4-stroke,
single-cylinder, BS6 Phase 2 |
|
Power |
10.2 hp (Petrol), 9.25 hp (CNG/LPG), 8.37 hp (Diesel) |
|
Torque |
19.2 Nm (Petrol), 16.7 Nm (CNG), 19.2 Nm (LPG), 23 Nm (Diesel) |
|
Transmission |
4-speed manual |
|
Mileage |
40 kmpl (Petrol), 35 kmpl (LPG), 30–35 km/kg (CNG), 35 kmpl (Diesel) |
|
Fuel Tank Capacity |
8L (Petrol), 4L (CNG), 8L (LPG), 8L (Diesel) |
|
Kerb Weight |
672 kg (Petrol), 687 kg (LPG), 708 kg (CNG), 702 kg (Diesel) |
|
Dimensions (LxWxH) |
2635x1300x1700 mm |
|
Wheelbase |
2000 mm |
|
Ground Clearance |
170 mm |
|
Seating Capacity |
Driver + 3 passengers |
|
Suspension (Front/Rear) |
Single-sided hydraulic fork/Coil springs with shock absorbers |
|
Brakes (Front/Rear) |
Drum (RH foot-operated hydraulic)/Drum |
|
Tyres (Front/Rear) |
4.00-8, 4PR (tubeless) |
|
Variants |
Petrol, CNG, LPG, Diesel |
|
Price (Ex-Showroom, Delhi) |
₹2,34,000–₹2,36,000(Year-2025) |
Engine & Transmission
|
Specification |
Details |
|
Engine Type |
Air-cooled, 4-stroke, single-cylinder, Fuel Injection
(Petrol/CNG/LPG), CI (Diesel) |
|
Displacement |
236.2cc (Petrol/CNG/LPG), 470.5cc (Diesel) |
|
Bore & Stroke |
54 mm x 51 mm (Petrol/CNG/LPG), 67 mm x 66 mm (Diesel) |
|
Compression Ratio |
9.7:1 (Petrol/CNG/LPG), 22:1 (Diesel) |
|
Maximum Power |
10.2 hp @ 4500 rpm (Petrol), 9.25 hp @ 4500 rpm (CNG/LPG), 8.37 hp @
3400 rpm (Diesel) |
|
Maximum Torque |
19.2 Nm @ 3250 rpm (Petrol), 16.7 Nm @ 3250 rpm (CNG), 19.2 Nm @ 3250
rpm (LPG), 23 Nm @ 2000 rpm (Diesel) |
|
Fuel System |
Fuel Injection (Petrol/CNG/LPG), Direct Injection (Diesel) |
|
Transmission |
4-speed manual |
|
Clutch |
Wet, multi-plate |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
2635 mm |
|
Overall Width |
1300 mm |
|
Overall Height |
1700 mm |
|
Wheelbase |
2000 mm |
|
Ground Clearance |
170 mm |
|
Kerb Weight |
672 kg (Petrol), 687 kg (LPG), 708 kg (CNG), 702 kg (Diesel) |
|
Payload Capacity |
398 kg |
|
GVW |
672–708 kg |
Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Tubular steel frame |
|
Front Suspension |
Single-sided hydraulic fork |
|
Rear Suspension |
Coil springs with shock absorbers |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
Hydraulic drum, RH foot-operated |
|
Rear Brake |
Drum |
|
Front Tyre |
4.00-8, 4PR, tubeless |
|
Rear Tyre |
4.00-8, 4PR, tubeless |
|
Wheels |
8-inch steel |
Electricals & Features
|
Specification |
Details |
|
Battery |
12V, 32Ah |
|
Starting Method |
Electric |
|
Instrumentation |
Analogue (speedometer, fuel gauge) |
|
Lighting |
Halogen headlamps, halogen indicators, tail lamps |
|
Features |
Improved legroom, safety doors, redesigned dashboard, provision for
aftermarket music system, lockable side panels, flared wheel arches, E20 fuel
compatible (Petrol), BS6-compliant engine, high resale value |
|
E20 Fuel Compatible |
Yes (Petrol) |
Available Colors
|
Specification |
Details |
|
Colors |
Yellow, Black |
