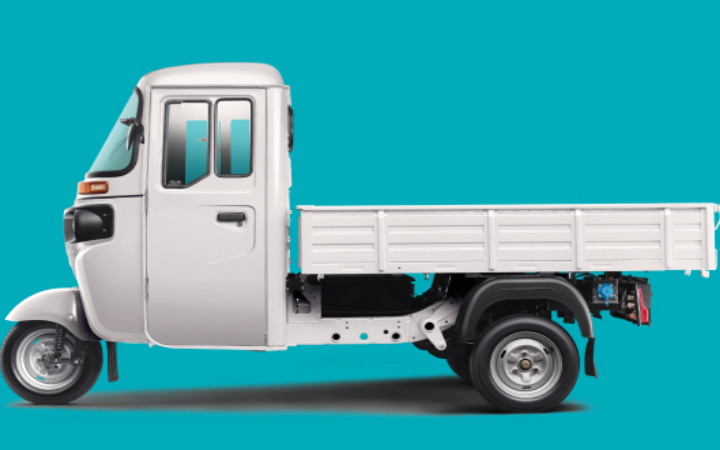

Bajaj Maxima XL Cargo E-TEC 12.0 2025 – Electric Three-Wheeler for Heavy-Duty Cargo
Full Specifications
|
Specification |
Details |
|
Motor |
Permanent Magnet Synchronous (PMS) Motor, electric |
|
Power |
7.37 hp (5.5 kW) |
|
Torque |
36 Nm |
|
Battery |
11.8 kWh Lithium-ion LFP, IP67-rated |
|
Range |
183 km (ARAI-claimed) |
|
Charging Time |
5 hr 50 min (full), 5 hr (80%) |
|
Transmission |
2-speed automated |
|
Top Speed |
40 km/h (Power mode), 30 km/h (Eco mode) |
|
Gradeability |
29% |
|
Kerb Weight |
Not specified (est. 450–500 kg) |
|
Dimensions (LxWxH) |
1840x1275x1425 mm |
|
Wheelbase |
2274 mm |
|
Ground Clearance |
180 mm |
|
Payload Capacity |
500 kg |
|
Suspension (Front/Rear) |
Twin shock absorbers with spring/Independent trailing arm with
helical springs |
|
Brakes (Front/Rear) |
Drum/Drum |
|
Tyres (Front/Rear) |
130/80 R12, radial, tubeless |
|
Variants |
Single (Electric) |
|
Price (Ex-Showroom, Delhi) |
₹3,77,391–₹4,68,000(Year-2025) |

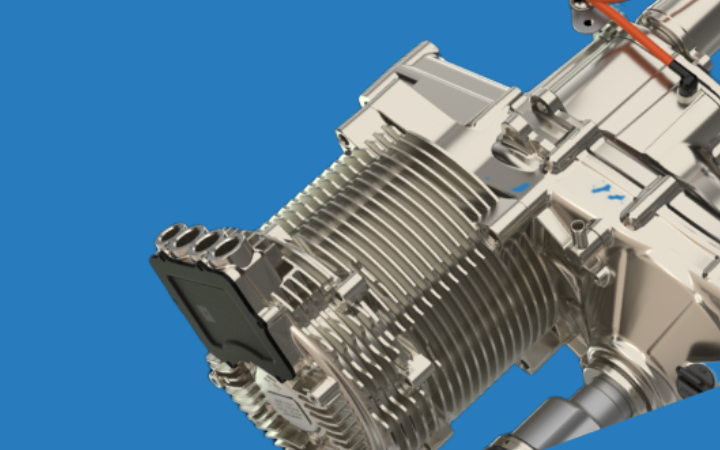

Motor & Transmission
|
Specification |
Details |
|
Motor Type |
Permanent Magnet Synchronous (PMS) Motor |
|
Power Output |
5.5 kW (7.37 hp) |
|
Torque |
36 Nm |
|
Battery Type |
Lithium-ion LFP, 11.8 kWh, IP67-rated |
|
Battery Warranty |
5 years (est.) |
|
Transmission |
2-speed automated |
|
Drive Modes |
Eco, Power |
Dimensions & Weight
|
Specification |
Details |
|
Overall Length |
1840 mm |
|
Overall Width |
1275 mm |
|
Overall Height |
1425 mm |
|
Wheelbase |
2274 mm |
|
Ground Clearance |
180 mm |
|
Kerb Weight |
450–500 kg (est.) |
|
Payload Capacity |
500 kg |
|
GVW |
805 kg |

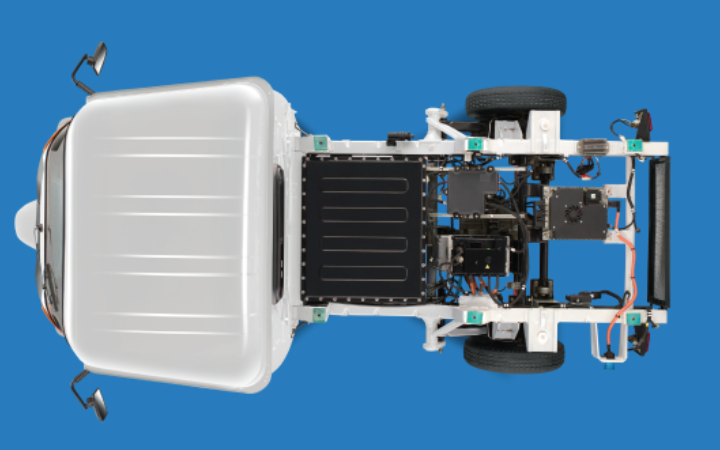

Chassis & Suspension
|
Specification |
Details |
|
Frame Type |
Tubular steel chassis, wide body |
|
Front Suspension |
Twin shock absorbers with spring |
|
Rear Suspension |
Independent trailing arm with helical springs |
Brakes & Tyres
|
Specification |
Details |
|
Front Brake |
Drum |
|
Rear Brake |
Drum |
|
Front Tyre |
130/80 R12, radial, tubeless |
|
Rear Tyre |
130/80 R12, radial, tubeless |
|
Wheels |
12-inch steel |

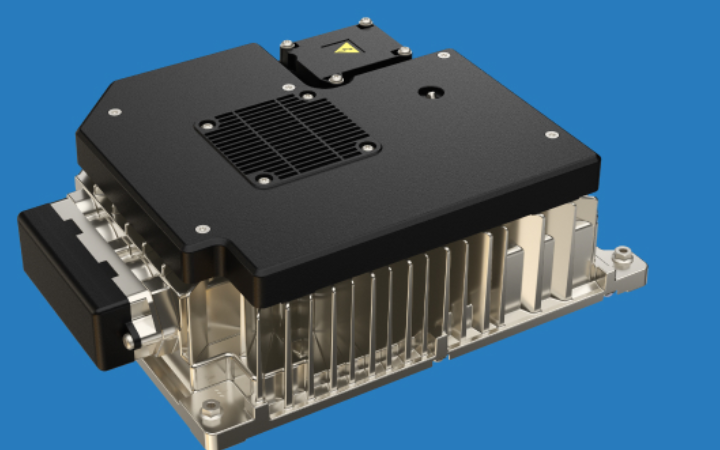

Electricals & Features
|
Specification |
Details |
|
Battery |
12V auxiliary (for electronics) |
|
Charging |
Onboard, 3-pin 16A socket |
|
Instrumentation |
Digital cluster with warning lights |
|
Lighting |
Twin halogen headlamps, LED indicators, LED tail lamps |
|
Features |
Hill Hold Assist, regenerative braking, 2-speed automated transmission,
12V mobile charging port, mobile holder, provision for aftermarket music
system, residual-current device, tough cables, IP67-rated battery,
well-cushioned seats |
Safety Features
|
Specification |
Details |
|
Safety Features |
Hill Hold Assist, regenerative braking, residual-current device |
Available Colors
|
Specification |
Details |
|
Colors |
Grey (commercial livery) |
