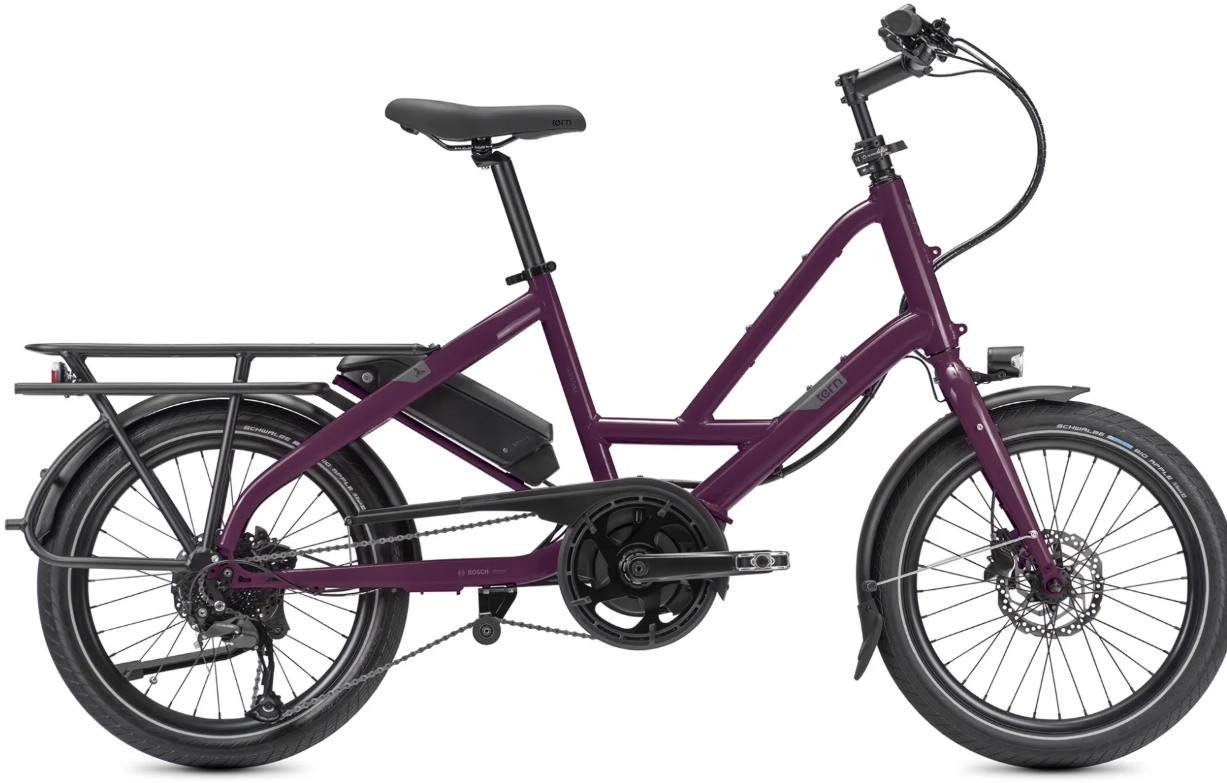

Tern Quick Haul P9 – Compact Cargo E-Bike
Specifications
|
Specification |
Details |
|
Model |
Quick Haul P9 |
|
Application |
Cargo, Utility, Family |
|
Vehicle Category |
Compact Longtail Cargo E-Bike |
|
Price (2025) |
$3,299–$3,699 USD |
|
Wheel Size |
20" |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Tern Quick Haul, 6061-AL, EFBE Approved 150 kg |
|
Fork |
Cargo Steel, EFBE Approved 150 kg |
|
Motor |
Bosch Performance Line Cruise, 65 Nm Torque |
|
Battery |
Bosch PowerPack 400Wh |
|
Display |
Bosch Purion |
|
Groupset |
Shimano Alivio 1×9 |
Components & Features
|
Specification |
Details |
|
Speeds |
1 x 9 |
|
Weight |
22.9 kg (50.5 lb) |
|
Suggested Rider Height |
160 - 195 cm (5’3” - 6’5”) |
|
Max Gross Vehicle Weight |
150 kg (330.7 lb) |
|
Max Rider Weight |
120 kg (264.6 lb) |
|
Brakes |
Shimano Hydraulic Disc |
|
Tires |
Schwalbe Big Apple 55-406 |
|
Rack Capacity |
50 kg Rear + 20 kg Optional Front |
|
Range |
53 - 105 km (400Wh) |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
