2025 Tern Orox S12 (27.5") – E-Adventure Bike

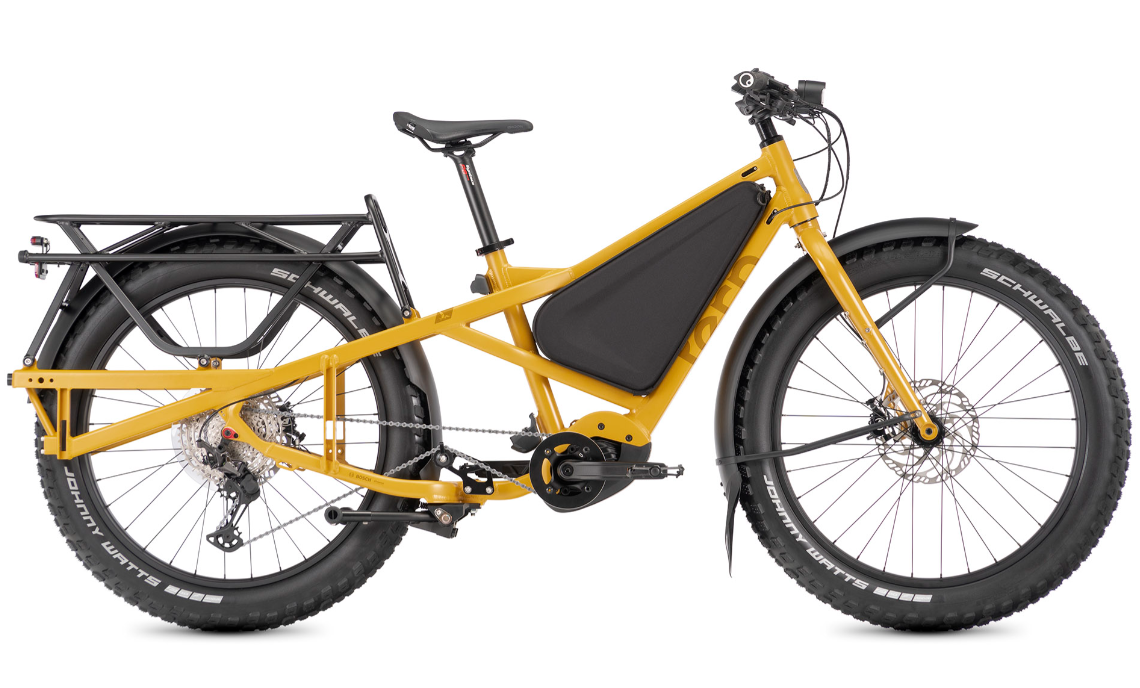

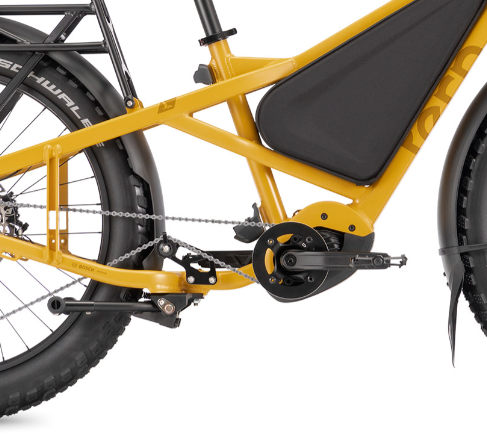

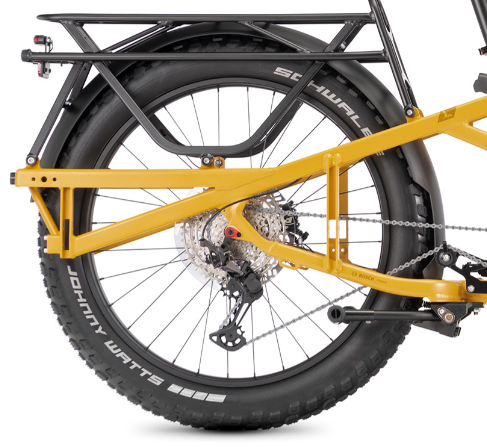

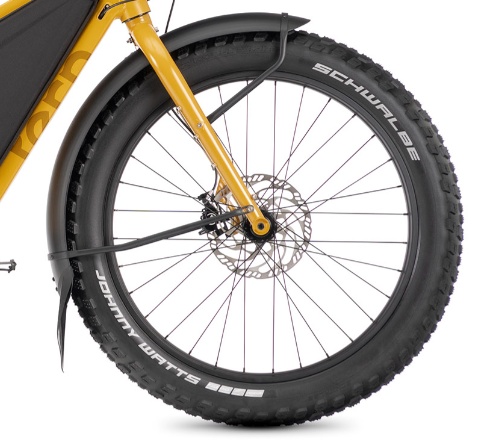

Images:

1

2

3

4

5

Specifications

Specification	Details
Model	Orox S12 (27.5") E-Adventure Bike
Vehicle Category	E-Adventure / Off-Road Touring
Application	Bikepacking, All-Terrain Touring, Adventure
Price (2025)	$6,999 USD
Wheel Size	27.5"

Frame & Drivetrain

Specification	Details
Frame	Tern Orox, 6061-AL Patented Design
Fork	Atlas X Butted Chromoly
Motor	Bosch Performance Line CX (85 Nm, 340% Support)
Battery	Bosch 725/800 Wh (Dual up to 1,600 Wh)
Display	Bosch Kiox 300 Smart System
Drivetrain	Shimano Deore XT 1x12-speed
Cassette	Shimano 10-51T
Brakes	Magura MT5 4-piston hydraulic disc
Rotors	203 mm front & rear
Tires	Vee Snow Ball 27.5 x 4" or Schwalbe Johnny Watts 27.5 x 4"

Components & Features

Specification	Details
Weight	M: 37.1 kg (81.8 lb)
Speeds	1 x 12
Gear Inches	18" - 95" (1.48 - 7.54 m)
Suggested Rider Height	M: 155 - 185 cm ; L: 165 - 195 cm
Max Gross Vehicle Weight	On-road: 210 kg ; Off-road: 180 kg
Max Rider Weight	130 kg
Handlebar	Level Nine AL-7050 800 mm Riser
Stem	Level Nine Adjustable
Lighting	Ignis 700 Lumens Hi/Lo Beam front / LED Brake Light rear
Rack	Atlas X 100 kg Capacity
Smart Features	Bosch Connect Module (Alarm/Tracking)

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
