Specification

Details

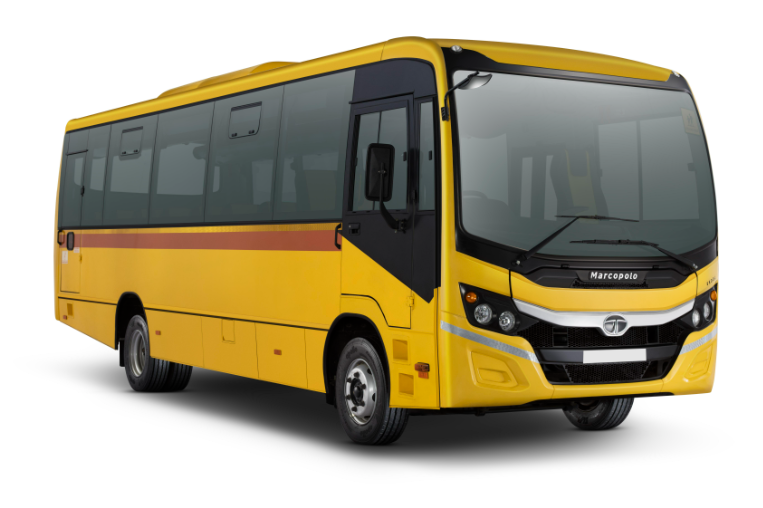

Bus Model

LP 410/29

Wheelbase

2955 mm

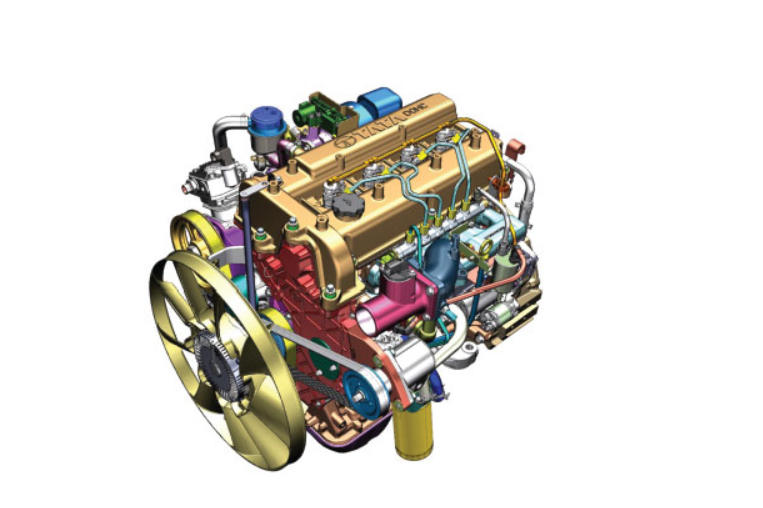

Engine

TATA 4SP CR

Power

74 kW @ 2800 r/min

Torque

300 Nm @ 1400-2200 r/min

Clutch Diameter

280 mm

Transmission

GB400 - Cable Shift

Brakes

All wheel Disc with Hydraulic Brake

Suspension

Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

12 V, 100 Ah

Alternator

75 A / 150 A

Tyres

215/75 R17.5

Fuel Tank Capacity

60 litres (Plastic)

Fuel Tank Material

Plastic

DEF Tank Capacity

18 litres

Max. GVW

4950 kg

Seating Capacity

SKL: 16 & 20, STD: 12 & 14; 24-41

Length

5535 mm

Rear Overhang

1650 mm

Front Overhang

930 mm

Overall Height

2785/3005 mm

Max. Width

2200 mm

TCD

11.3 m

Ground Clearance

200 mm

AC / Non-AC Option

Both

Fuel Type

Diesel

Application

School Buses

Specification

Details

Warranty Feature

5 Years/5 Lakh kms Warranty

Bus Body Warranty Feature

3 Years/3 Lakh kms Bus Body Warranty

Body Width Feature

Multiple Body Width Option 2340 MM / 2550 MM

Engine Feature

Fuel Efficient 3.3 Ltr Engine with Balanced Power & Torque

Cooling Feature

E-Viscous Fan

Tyre Feature

Low CRR Radial Tubeless & Tubetype Tyre

Telematics Feature

4G Telematic Solution with FOTA

Steering Feature

Modular Steering Wheel with Cruise Control

Fuel System Feature

Plastic Fuel Tank with Fuel Monitoring system

Safety Feature

Fire Detection and Separation System; Exceeds CMVR, AIS 052, AIS 063, AIS 153 standards; Advanced braking systems; Impact-resistant materials; Strategic emergency exits

Efficiency Feature

Multi-Mode Fuel Economy Switch

Stability Feature

Electronic Stability Control with Hill Start Assist

Driver Comfort Feature

Driver Suspended Seats

Transmission Feature

Torque Based Gear Shift Advisor

Seating Feature

Wider seats, armrests, mobile chargers, added leg space, reclining seats

Suspension Feature

Improved suspension

NVH Feature

Reduced Noise, Vibration & Harshness

Body Design Feature

Superior bus body design in collaboration with ACGL, prioritizing structural integrity and aesthetics

Service Interval Feature

40,000 km

Benefit: Safety

Sturdy build quality for passenger & driver safety

Benefit: Performance

More reliable, better performance, more profits to customers

Benefit: Capacity

Increased number of seats and seat width for seating comfort

Benefit: Efficiency

More trips with highest fuel economy

Benefit: Aesthetics

Refreshed look, end customer preference

Benefit: Passenger Comfort

Increased comfort and convenience to passengers

Benefit: Resale Value

Better resale value

Benefit: NVH

Low noise, vibration & harshness

Benefit: Maintenance

Low maintenance with value-added service options
