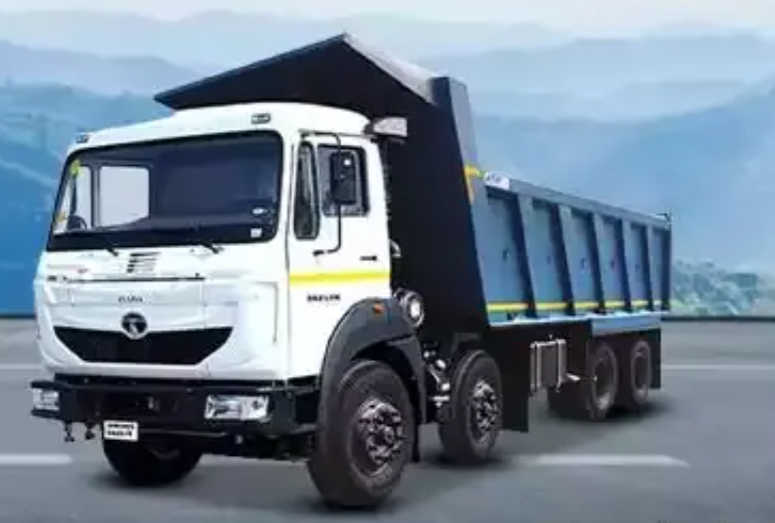

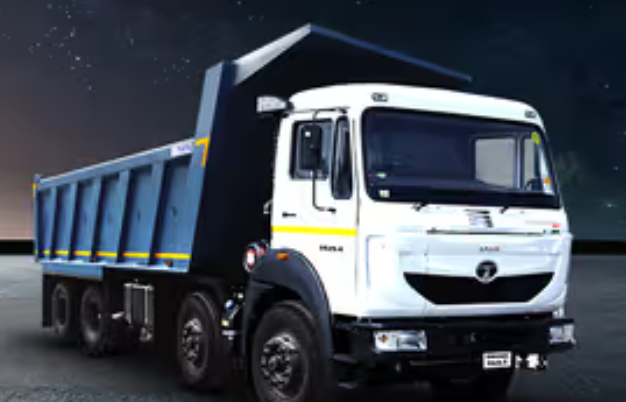

Tata Signa 3523.TK 2025 – Heavy-Duty Tipper Truck
Specifications
|
Specification |
Details |
|
Engine |
5635 cc, Cummins ISBe 5.6L, 6-cylinder, BS6 Phase 2, diesel, intercooled |
|
Power |
220 hp (164 kW) @ 2300 rpm |
|
Torque |
850 Nm @ 1000–1600 rpm |
|
Transmission |
9-speed manual, Tata G1150, synchromesh with crawler gear |
|
Brakes |
Full air S-cam brakes, dual-circuit, ABS, ICGT braking system |
|
Suspension |
Front: Parabolic leaf spring with shock absorbers; Rear: Semi-elliptical leaf spring with bell crank |
|
Wheel Size |
20-inch |
|
Tyres |
295/90R20, radial, tubeless (10+1) |
|
Weight |
GVW: 35000 kg; Payload: ~26000 kg (20 cum box) |
|
Dimensions (LxWxH) |
9800 x 2550 x 3100 mm (20 cum box, 5580 mm wheelbase) |
|
Seat Height |
Not applicable |
|
Fuel Tank Capacity |
300 litres (HDPE) |
|
Mileage |
2.5–3.5 kmpl (claimed); ~2–3 kmpl (user-reported) |
|
Ground Clearance |
230 mm |
|
Price (Ex-Showroom, Delhi) |
₹44.23–55.23 lakh(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder-type heavy-duty frame with riveted/bolted cross members |
|
Engine Type |
Inline 6-cylinder, common-rail diesel, BS6, intercooled |
|
Clutch |
380 mm dia, push-type single-plate dry friction |
|
Gearbox |
9-speed manual, Tata G1150, synchromesh with crawler gear |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf spring with hydraulic double-acting shock absorbers |
|
Rear Suspension |
Semi-elliptical leaf spring with bell crank mechanism |
|
Front Brake |
Full air S-cam drum brakes, dual-circuit, ABS, ICGT |
|
Rear Brake |
Full air S-cam drum brakes, dual-circuit, ABS, ICGT |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Steel, 20-inch |
|
Tyres |
295/90R20, radial, tubeless (10+1) |
|
Wheel Size |
20-inch |
Components & Features
|
Specification |
Details |
|

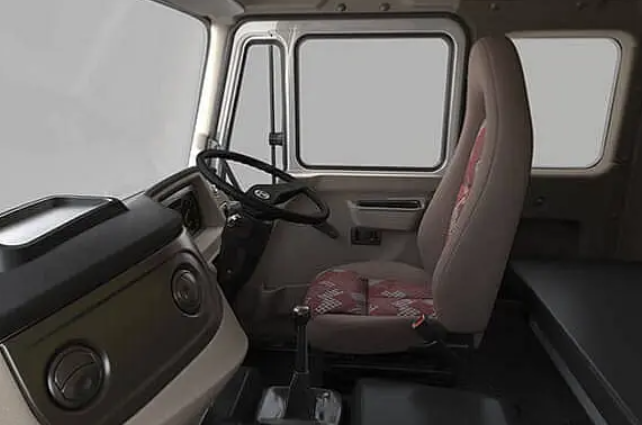

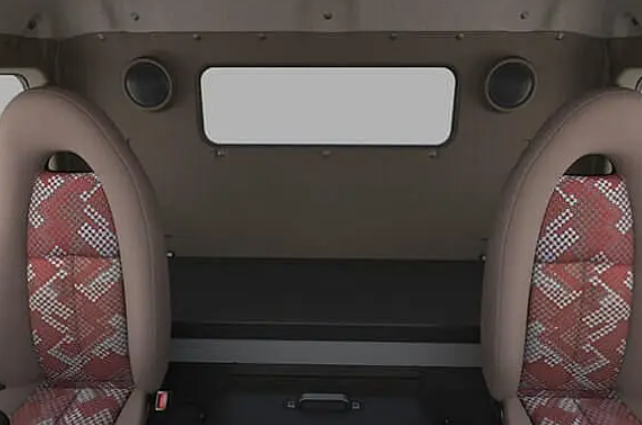

Seat |
Fabric, D+2 seating, 3-way adjustable driver seat |
|
Handlebar |
Tilt and telescopic power steering wheel |
|

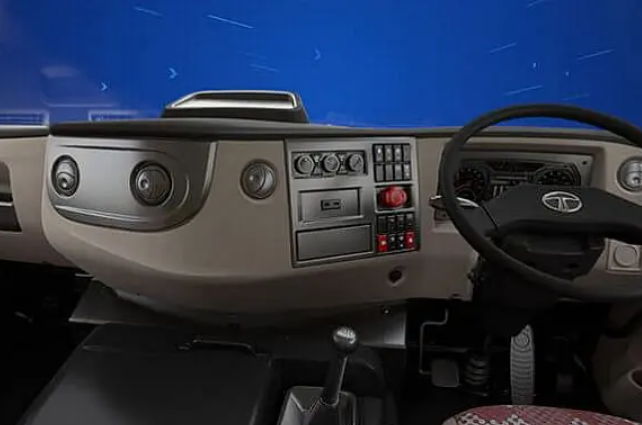

Instrument Cluster |
Digital, with gear shift advisor, fuel economy display, AdBlue gauge, battery voltage |
|
Features |
Fleet Edge telematics, 3-mode fuel economy switch, air-conditioning, USB charging ports, electronic anti-fuel theft, 20 cum box body |
|
Safety Features |
ABS, engine brake, hill start assist, reverse parking sensors, LED tail-lights, seat belts |
Available Colors
|
Specification |
Details |
|
Colors |
Arctic White, Mineral Red |
