Tata Magic Microvan 2025 – Affordable Passenger Van
Specifications
|
Specification |
Details |
|
Engine |
702 cc 2-cylinder diesel/CNG |
|
Power |
16 hp (diesel) / 22 hp (CNG) @ 3200 rpm |
|
Torque |
38 Nm (diesel) / 55 Nm (CNG) |
|
Transmission |
4-speed manual |
|
Brakes |
Front: Disc; Rear: Drum |
|
Suspension |
Front: MacPherson strut; Rear: Parabolic leaf spring |
|
Wheel Size |
13-inch |
|
Tyres |
145/80 R13 |
|
Weight |
GVW: 1600 kg |
|
Dimensions (LxWxH) |
3790 x 1500 x 1845 mm |
|
Wheelbase |
2100 mm |
|
Ground Clearance |
150 mm |
|
Seating Capacity |
7–10 passengers |
|
Payload |
600 kg (Express) |
|
Fuel Tank |
30 L (diesel) / 60 L (CNG) |
|
Mileage |
20–21.12 kmpl (diesel) / 36.2 km/kg (CNG) |
|
Gradeability |
22–38% |
|
Turning Radius |
4.3 m |
|
Variants |
Express, Mantra, School Van |
|
Price (Delhi Ex-Showroom) |
₹5.65–7.34 lakh (Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Monocoque all-steel body |
|
Engine Type |
2-cylinder diesel/CNG |
|
Drivetrain |
Rear-wheel drive (RWD) |
|
Gearbox |
4-speed manual, synchromesh |
|
Clutch |
Single-plate dry friction |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
MacPherson strut with coil spring |
|
Rear Suspension |
Parabolic leaf spring |
|
Front Brake |
Disc |
|
Rear Brake |
Drum |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
13-inch steel |
|
Tyres |
145/80 R13 |
|
Wheel Size |
13-inch |
Components & Features
|
Specification |
Details |
|
Seating |
7–10 passengers, fabric seats |
|
Steering |
Manual (power steering in select variants) |
|
Instrument Cluster |
Analogue (digital in Express) |
|
Features |
Mobile charging point, hardtop/soft-top, side-impact beams |
|
Safety Features |
Seat belts, rigid all-steel body, side-impact beams |

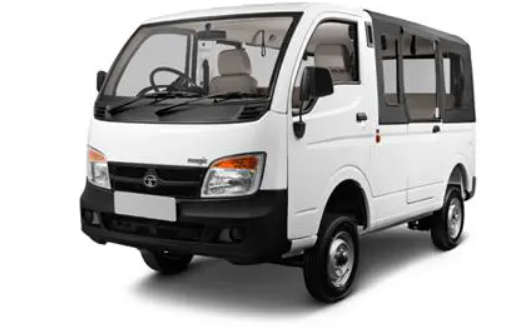

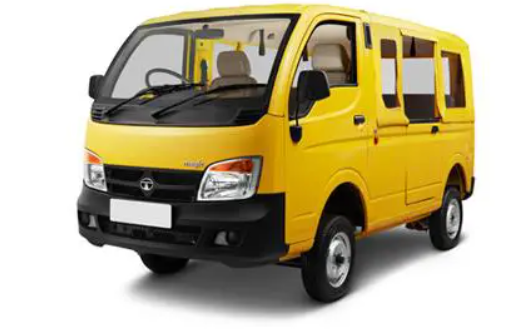

Available Colors
|
Specification |
Details |
|
Colors |
Arctic White, Yellow (School Van) |
