Specification

Details

Bus Model

LP 916/52

Wheelbase, mm

5200

Engine

3.3 LTR

Engine Power, kW@RPM

117 kW @ 2600 RPM

Engine Torque, Nm@RPM

475 Nm @ 1600-2000 RPM

Fuel Type

Diesel

Clutch Diameter, mm

330

Gearbox

G 550 6 Speed Cable Shift

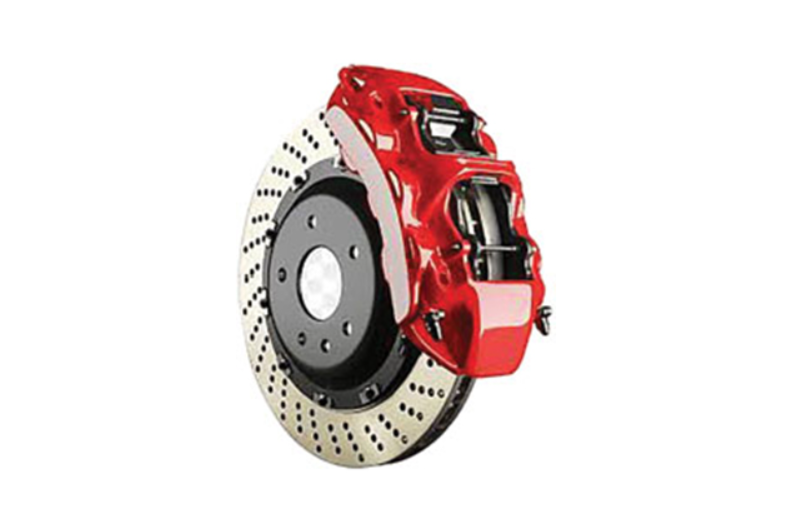

Brakes

Air Brakes

Suspension

Parabolic Suspension

Steering

Power-Steering, Tilt - Telescope

Battery

12 V/24 V, 120 Ah

Alternator

120 A/150 A

Tyres

235/75 R17.5

Fuel Tank Capacity, Litres

120 Plastic

DEF Tank Capacity, Litres

18/25

Max. GVW, kg

10200

Seating Capacity

SKL: 42 / 50 & 59, STD: 40 & 50

Length, mm

9750

Rear Overhang, mm

3120

Front Overhang, mm

1430

Overall Height, mm

2910/3120

Max. Width, mm

2340/2550

TCD, m

18

Ground Clearance, mm

180

AC / Non-AC Option

Both

Application

School Buses

Feature

Details

Feature: Warranty

4 Years/4 Lakhs kms Warranty; 3 Years/3 Lakhs kms Bus Body Warranty

Feature: Body Width Options

Multiple Body Width Option 2200 MM / 2340 MM

Feature: Engine

Fuel Efficient 3.3Ltr Engine with Balanced Power & Torque

Feature: Cooling

E Viscous Fan

Feature: Tyres

Low CRR Radial Tubeless & Tube Type Tyre

Feature: Telematics

4G Telematic Solution with FOTA

Feature: Steering

Modular Steering Wheel with Cruise Control

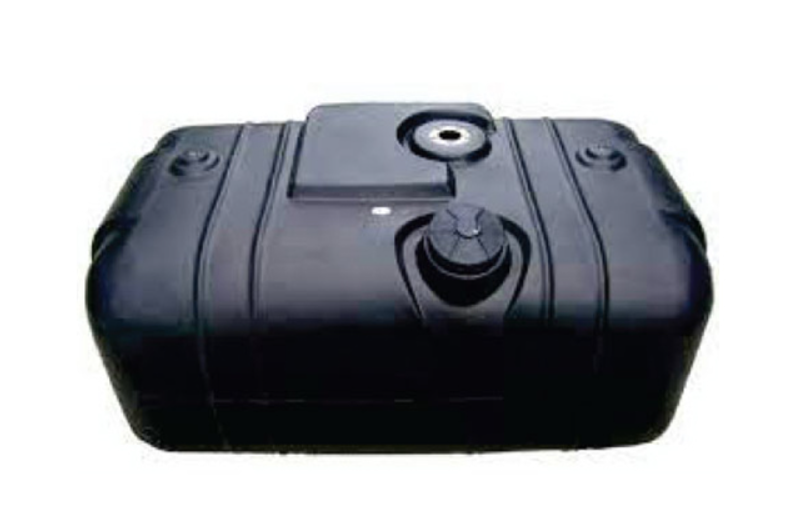

Feature: Fuel Tank

Plastic Fuel Tank with Fuel Monitoring System

Feature: Safety

Fire Detection and Alarm System

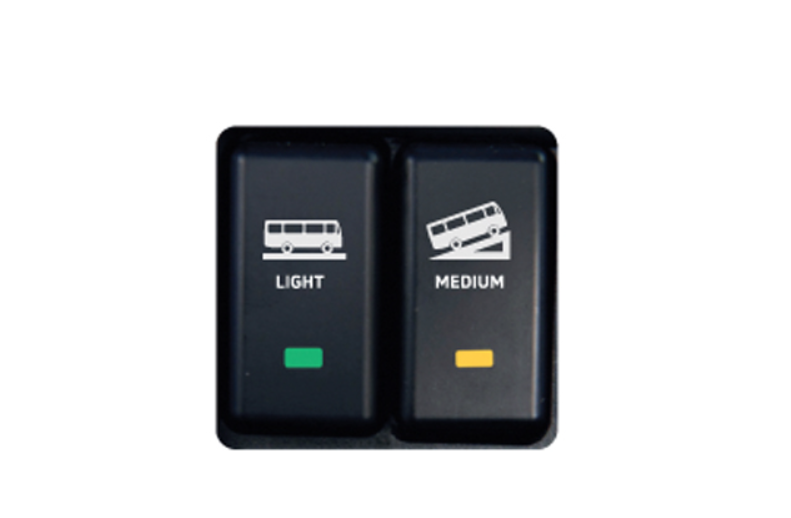

Feature: Fuel Efficiency

Multi Mode Fuel Economy Switch

Feature: Stability

Electronic Stability Control with Hill Start Assist*

Feature: Seating

Driver Suspended Seats

Feature: Gear Shift

Torque Based Gear Shift Advisor

Feature: Wheel Bearing

Unitised Wheel Bearing (THU)
