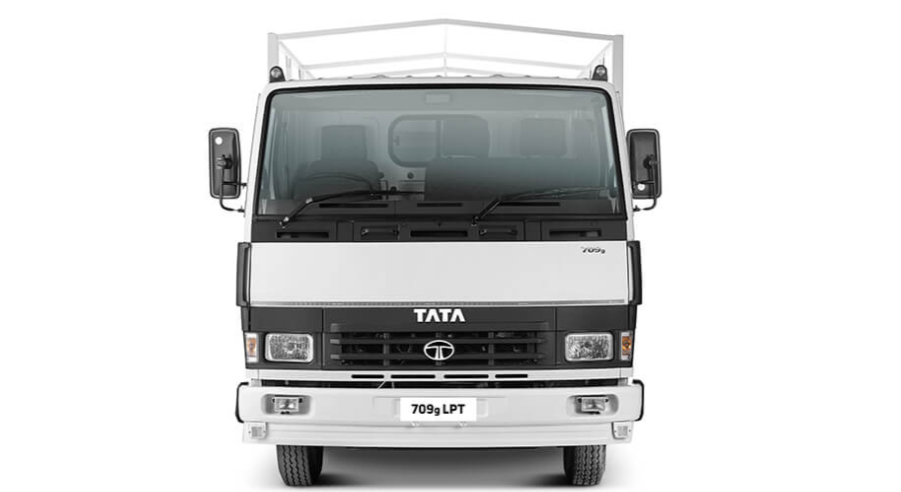

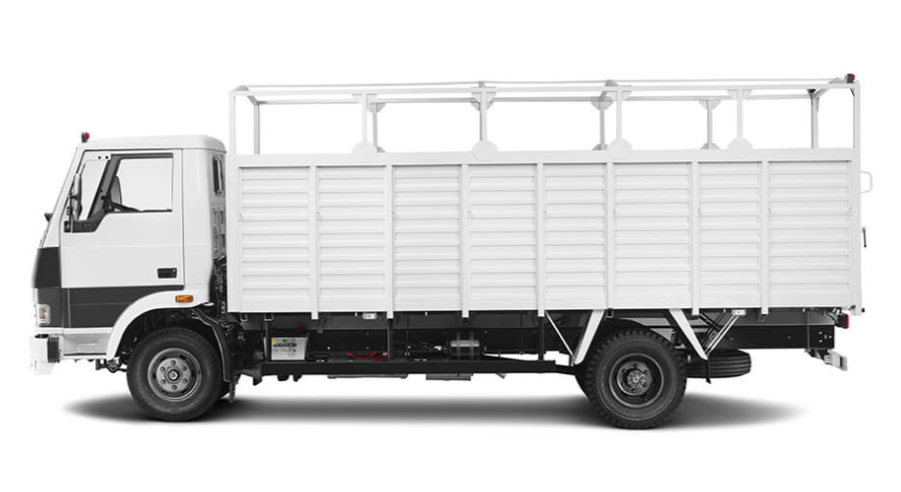

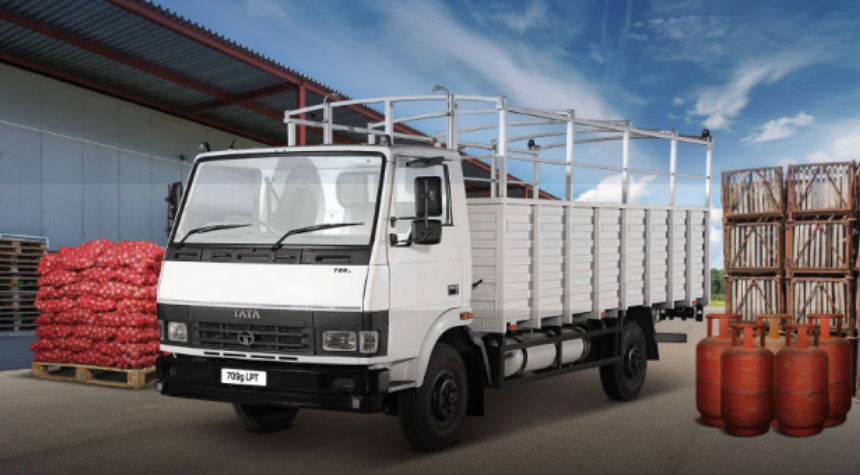

Tata 709g LPT 2025 – Medium Duty Truck
Specifications
|
Specification |
Details |
|
Engine |
3783 cc, 4-cylinder, 4SP CR diesel, BS6 Phase 2 |
|
Power |
125 hp (93 kW) @ 2400 rpm |
|
Torque |
400 Nm @ 1300–1800 rpm |
|
Transmission |
5-speed manual, synchromesh |
|
Brakes |
Full air brakes, dual-circuit, auto slack adjuster |
|
Suspension |
Front: Semi-elliptical leaf spring with hydraulic double-acting shock absorbers; Rear: Semi-elliptical leaf spring with auxiliary springs |
|
Wheel Size |
20-inch |
|
Tyres |
8.25 R20, radial, tubeless (6+1) |
|
Weight |
GVW: 7490 kg; Kerb: 2990 kg (CBC) |
|
Dimensions (LxWxH) |
6185 x 2255 x 6 mm (CBC) |
|
Seat Height |
Not applicable |
|
Fuel Tank Capacity |
160 liters |
|
Mileage |
7–9 kmpl (claimed); ~6–8 kmpl (user-reported) |
|
Ground Clearance |
220 mm |
|
Price (Ex-Showroom, Delhi) |
₹14.26–16.81 lakh(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis |
Ladder-type frame with riveted/bolted cross members |
|
Engine Type |
Inline 4-cylinder, common-rail diesel, turbocharged, BS6 Phase 2 |
|
Clutch |
Single-plate dry friction, 330 mm diameter |
|
Gearbox |
5-speed manual, synchromesh, cable shift |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Semi-elliptical leaf spring with hydraulic shock absorbers, 200 mm travel |
|
Rear Suspension |
Semi-elliptical leaf spring with auxiliary springs, 190 mm travel |
|
Front Brake |
Full air brakes, dual-circuit, drum |
|
Rear Brake |
Full air brakes, dual-circuit, drum |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Steel, 20-inch |
|
Tyres |
8.25 R20, radial, tubeless (6+1) |
|
Wheel Size |
20-inch |
Components & Features
|
Specification |
Details |
|
Seat |
Melba fabric, driver + 2 passengers, adjustable driver seat |
|
Handlebar |
Tilt and telescopic power steering wheel |
|
Instrument Cluster |
Electronic multi-info display, gear shift advisor |
|
Features |
Blaupunkt music system with Bluetooth, USB charger, telematics, side proximity mirrors, load body options (CBC, HDLB) |
|
Safety Features |
Seat belts, ABS, parking brake, reverse parking sensor, EBD (optional) |
Available Colors
|
Specification |
Details |
|
Colors |
Arctic White, Arizona Blue, Mineral Red |
