Tata 1512 LPT 2025 – Intermediate Commercial Truck
Specifications
|
Specification |
Details |
|
Engine |
3300 cc, 4-cylinder, 3.3L NG BS6, inline water-cooled direct injection diesel with intercooler |
|
Power |
168 hp (125 kW) @ 2600 rpm |
|
Torque |
390 Nm @ 1000–2200 rpm |
|
Transmission |
6-speed manual, GBS 40, synchromesh |
|
Brakes |
Dual-circuit full air S-cam brakes with auto slack adjuster, drum |
|
Suspension |
Front: Parabolic leaf spring with hydraulic double-acting telescopic shock absorbers; Rear: Semi-elliptical leaf spring with auxiliary springs |
|
Wheel Size |
20-inch |
|
Tyres |
9.00 R20-16PR, radial, tubeless (6+1) |
|
Weight |
GVW: 16020 kg; Payload: 10550 kg (FSD) |
|
Dimensions (LxWxH) |
6800 x 2425 x 2165 mm (4830 mm wheelbase, FSD) |
|
Seat Height |
Not applicable |
|
Fuel Tank Capacity |
160 litres |
|
Mileage |
5.5–6.5 kmpl (claimed); ~5–6 kmpl (user-reported) |
|
Ground Clearance |
225 mm |
|
Price (Ex-Showroom, Delhi) |
₹23.40–28.40 lakh(Year-2025) |
Frame & Drivetrain
|
Specification |
Details |
|

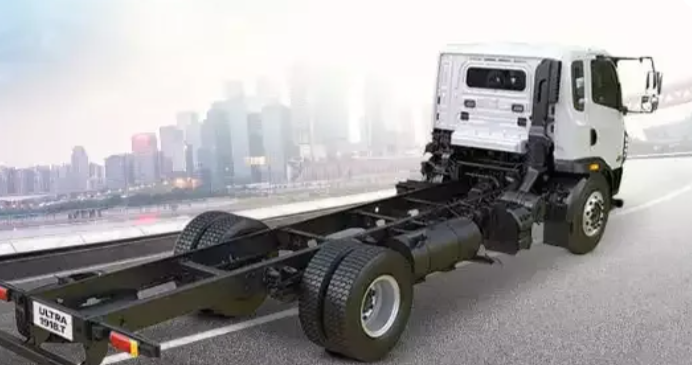

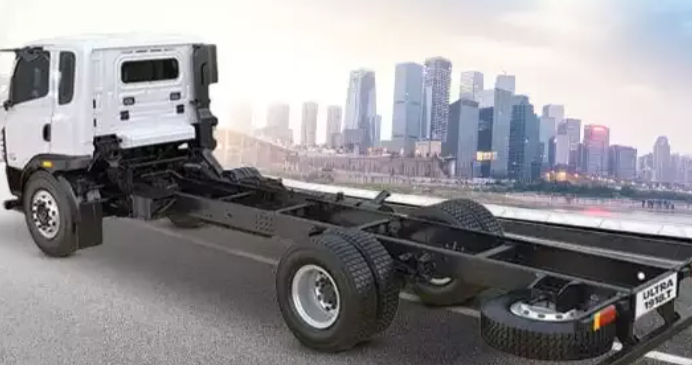

Chassis |
Ladder-type heavy-duty frame with riveted/bolted cross members |
|
Engine Type |
Inline 4-cylinder, common-rail diesel, BS6 Phase 2, intercooled |
|
Clutch |
Single-plate dry friction, 330 mm diameter |
|
Gearbox |
6-speed manual, GBS 40, synchromesh, cable shift |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Parabolic leaf spring with hydraulic double-acting telescopic shock absorbers |
|
Rear Suspension |
Semi-elliptical leaf spring with auxiliary springs |
|
Front Brake |
Dual-circuit full air S-cam drum brakes with auto slack adjuster |
|
Rear Brake |
Dual-circuit full air S-cam drum brakes with auto slack adjuster |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Steel, 20-inch |
|
Tyres |
9.00 R20-16PR, radial, tubeless (6+1) |
|
Wheel Size |
20-inch |
Components & Features
|
Specification |
Details |
|
Seat |
Melba fabric, driver + 1 passenger, adjustable driver seat |
|
Handlebar |
Tilt and telescopic power steering wheel |
|
Instrument Cluster |
Multi-function digital cluster with gear shift advisor, DEF gauge, fuel economy display |
|
Features |
Blaupunkt music system with USB/Bluetooth, high-speed USB charger, Fleet Edge telematics, reverse parking buzzer, load body options (CAB, FSD, HSD) |
|
Safety Features |
ABS, EBD, seat belts, auto slack adjuster, reverse parking sensors |
Available Colors
|
Specification |
Details |
|
Colors |
Arctic White, Arizona Blue, Mineral Red |
