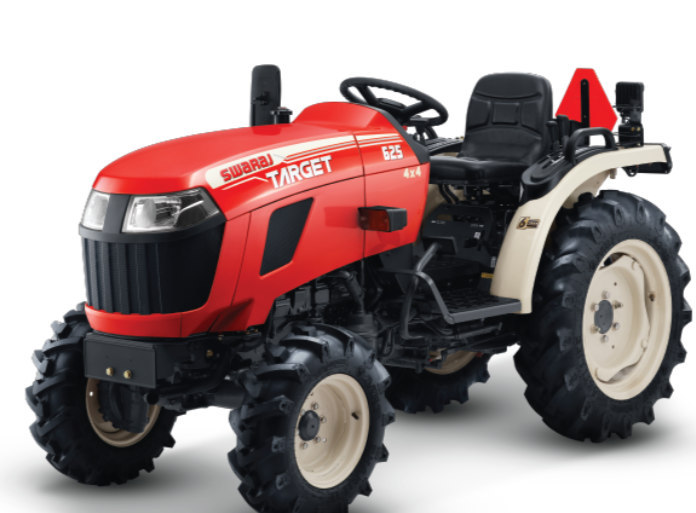

Swaraj Target 625 4WD – Lightweight Compact Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj Target 625 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Lightweight Compact Tractor |
Frame & Drivetrain
|
Specification |
Details |
|

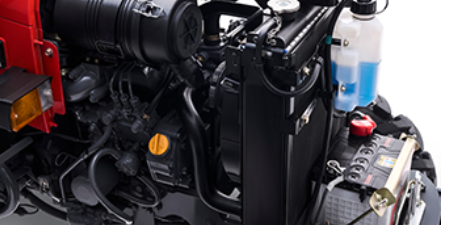

Engine Type |
Yanmar, Liquid Cooled, Direct Injection |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2400 |
|
Engine Power |
25 HP |
|
Engine Displacement |
1331 cc |
|
Maximum Torque |
83.1 Nm |
|
Transmission Type |
Synchromesh |
|
Drive Type |
4WD (Portal Type Front Axle) |
|
4WD Engagement Type |
Mechanical with Lever |
|
Number of Gears |
9 Forward + 3 Reverse |
|
Power Range |
25 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Balanced Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
180/85D12 (Standard), 180/85D12 Narrow Rim (Optional) |
|
Rear Tyre Size |
8.30 x 20 (Standard), 9.50 x 20, 9.50 x 20 High Lug (Optional) |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Automatic Depth & Draft Control (ADDC) |
|
Three Point Hitch Category |
Category 1 |
|
Max Lift Capacity |
980 kgf |
|
Transport Lock |
Yes |
|
PTO Type |
Dual PTO |
|
PTO Speeds |
540 & 540E / 540 + R |
|
PTO Power |
19 HP |
|
PTO On-Off Control |
Switch Operated |
|
Clutch Type |
Single Dry Clutch |
|
PTO Clutch |
Independent Wet Clutch (Optional) |
|
Wheelbase |
1555 mm |
|
Weight |
910 kg |
|
Air Cleaner Type |
Dry Type, Dual element |
|
Fuel Tank Capacity |
27 litres |
|
Differential Lock |
Mechanical |
|
Final Reduction |
Bull Gear Reduction |
|
Radiator |
20% Larger (MaxCool) |
|
Warranty |
4500 hours or 6 years |
|
Adjustable Track Width |
711.2 mm, 812.8 mm, 914.4 mm |
