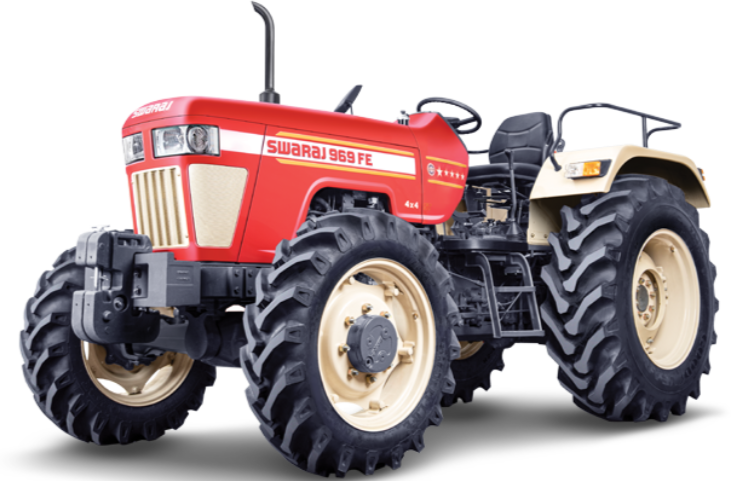

Swaraj 969 FE – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
969 FE |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Stroke, Direct Injection, Turbocharged |
|
Engine Displacement |
3478 cc |
|
Engine Power |
49.2-52.1 kW (66-70 HP) |
|
Number of Cylinders |
3 Cylinders |
|
Bore |
110 mm |
|
Stroke |
122 mm |
|
Rated RPM |
2000 RPM |
|
Air Cleaner |
Dry Type |
|
Cooling System |
Water Cooled with No-Loss Tank |
|
Clutch |
Mechanically Actuated Double Clutch (Independent PTO) with Cerametallic Friction Lining, 12-inch |
|
Transmission Type |
Sliding Mesh/PCM |
|
Number of Gears |
12 Forward + 3 Reverse |
|
Forward Speeds |
0.88 to 32.25 km/h |
|
Reverse Speeds |
2.0 to 24.86 km/h |
|
Rear Axle |
Planetary Reduction |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-Immersed Multi Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
7.50 x 16 in(190.50 x 406.40 mm) (2WD), 11.2 x 24 in(284.48 x 609.06 mm) (4WD) in |
|
Rear Tyres |
16.9 x 30 in(429.26 x 726 mm) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2200 kg |
|
Power Take Off |
540, 540E, Multispeed 8 Forward & 2 Reverse PTO |
|
Total Weight |
2850 kg (2WD), 3280 kg (4WD) |
|
Battery |
12 Volt, 100 Ah |
|
Instruments |
Digital Instrument Cluster |
|
Additional Features |
Built on Pillars of Power, Trust, and Reliability; Designed to Overcome Any Obstacle; Engineered with Expertise to Meet Farmers’ Needs |
|
Linkage |
Category-II with Fixed Type Lower Links |
|
Overall Length |
3740 mm (2WD), 4020 mm (4WD) |
|
Overall Width |
1925 mm (2WD), 1950 mm (4WD) |
|
Overall Height |
2280 mm |
|
Wheelbase |
2210 mm (2WD), 2245 mm (4WD) |
|
Wheel Track Front |
1415 mm (2WD), 1630 mm (4WD) |
|
Wheel Track Rear |
1485 mm (2WD), 1530 mm (4WD) |
|
Minimum Ground Clearance |
407 mm |
