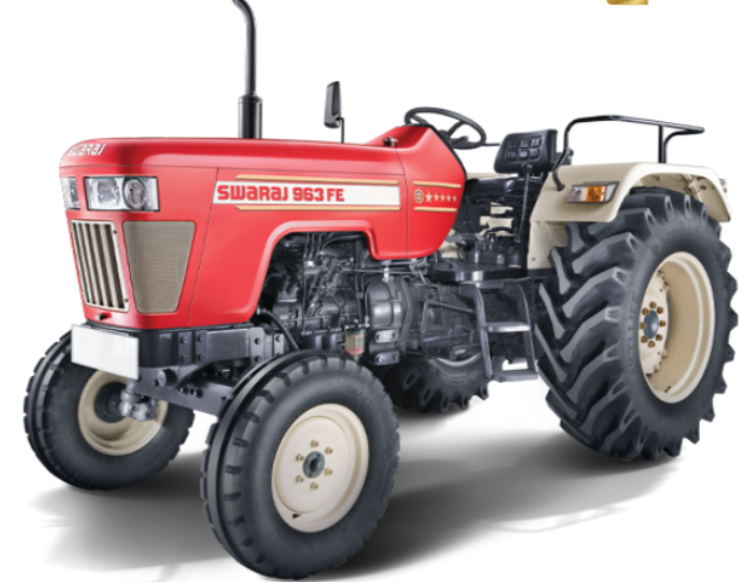

Swaraj 963 FE – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj 963 FE |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tasks (Tilling, Hauling, Heavy-Duty Farming) |
Frame & Drivetrain
|
Specification |
Details |
|

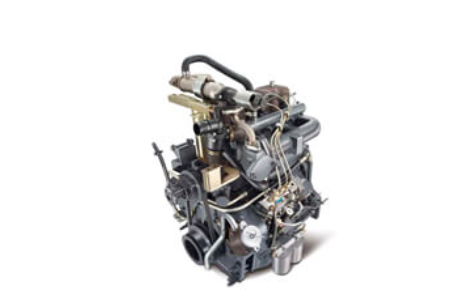

Engine Type |
4 Stroke, Direct Injection, Diesel |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2100 |
|
Engine Power |
60 HP |
|
Engine Displacement |
3820 cc |
|
Bore and Stroke |
110 mm x 134 mm |
|
Transmission Type |
Synchromesh |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
12 Forward + 2 Reverse |
|
Forward Speed Range |
2.60-30.90 km/h |
|
Reverse Speed Range |
3.30-12.90 km/h |
|
Power Range |
60 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Disc Brakes |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
7.50 x 16 in(2WD), 9.50 x 24 in (4WD) |
|
Rear Tyre Size |
16.9 x 28 in (2WD/4WD) |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
2-Lever, ADDC with 2 SA/DA Auxiliary Hydraulic Circuit |
|
Three Point Linkage |
Category II with Fixed Type Lower Links |
|
Lifting Capacity |
2200 kg |
|
PTO Type |
Multispeed Forward and Reverse |
|
PTO Speeds |
540 r/min, 540E, 8 Multispeed Forward & 2 Reverse |
|
PTO Power |
51.6 HP |
|
Clutch Type |
Mechanically Actuated Double Clutch (Independent PTO) with Cerametallic Friction Lining, 12-inch |
|
Wheelbase |
2215 mm (2WD), 2240 mm (4WD) |
|
Weight |
2700 kg (2WD), 3080 kg (4WD) |
|
Overall Length |
3715 mm (2WD), 3980 mm (4WD) |
|
Overall Width |
1920 mm (2WD), 1915 mm (4WD) |
|
Overall Height |
2270 mm (2WD), 2180 mm (4WD) |
|
Ground Clearance |
407 mm (2WD), 340 mm (4WD) |
|
Air Cleaner Type |
Dry Type |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Fuel Tank Capacity |
60 litres (2WD/4WD) |
|
Battery |
12V, 100 Ah |
|
Instruments |
Digital Instrument Cluster |
|
Rear Axle |
Planetary Reduction |
|
Neutral Safety Switch |
Yes |
|
Warranty |
2000 Hours or 2 Years |
|
Accessories |
Toplink, Canopy, Drawbar, Hitch |
|
Front Wheel Track |
1445 mm (2WD), 1570 mm (4WD) |
|
Rear Wheel Track |
1470 mm (2WD), 1480 mm (4WD) |
