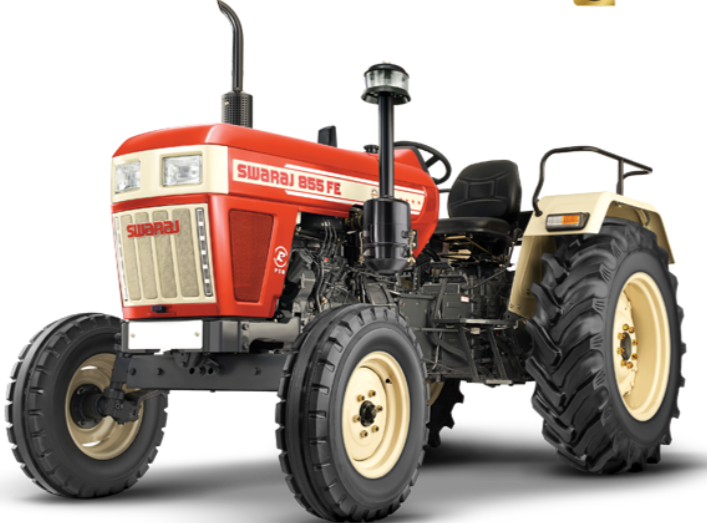

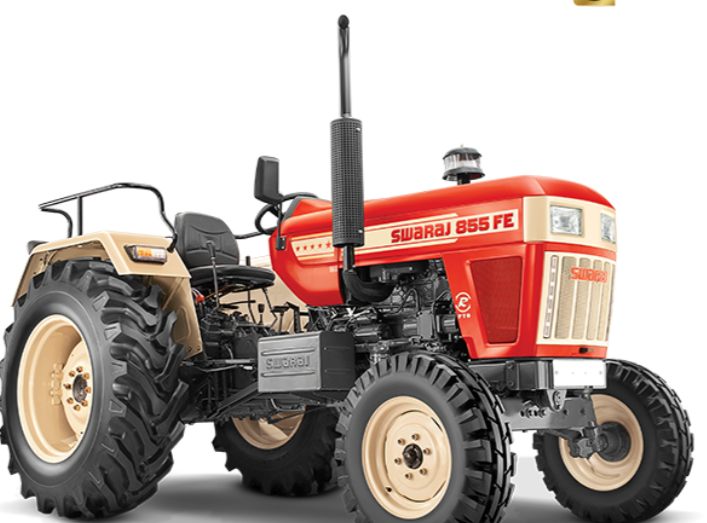

Swaraj 855 FE – Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj 855 FE |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tasks (Tilling, Hauling, Heavy-Duty Farming) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Water Cooled, Diesel |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2000 |
|
Engine Power |
52 HP |
|
Engine Displacement |
3478 cc |
|
Bore and Stroke |
110 mm x 122 mm |
|
Service Interval |
400 h |
|
Transmission Type |
Sliding Mesh/Partial Constant Mesh |
|
Drive Type |
2WD/4WD |
|
Front Axle Type |
Adjustable/Fixed |
|
Number of Gears |
8 Forward + 2 Reverse (Center/Side Shift) or 12 Forward + 3 Reverse (Side Shift) |
|
Forward Speed Range |
3.1-30.9 km/h |
|
Reverse Speed Range |
2.6-12.9 km/h |
|
Power Range |
52 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Mechanical (2WD Standard), Power/Balanced Power (2WD Optional, 4WD Standard) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 16 or 7.50 x 16 in (2WD), 9.50 x 20 or 9.50 x 24 in (4WD) |
|
Rear Tyre Size |
14.9 x 28 in or 16.9 x 28 in (2WD/4WD) |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
ADDC with Single/Dual (Optional) Remote Valve |
|
Three Point Linkage |
Category I & II |
|
Lifting Capacity |
2000 kg |
|
PTO Type |
Standard (2WD) or Multispeed Forward and Reverse (4WD) |
|
PTO Speeds |
540 r/min (2WD), 540 r/min with 4 Multispeed Forward and 1 Reverse (4WD) |
|
PTO Power |
42.9 HP |
|
Clutch Type |
Single Clutch (2WD), Dual/Double Clutch (2WD Optional, 4WD Standard) |
|
Wheelbase |
2250 mm (2WD), 2165 mm (4WD) |
|
Weight |
2220 kg (2WD), 2455 kg (4WD) |
|
Overall Length |
3575 mm (2WD), 3560 mm (4WD) |
|
Overall Width |
1845 mm (2WD), 1830 mm (4WD) |
|
Overall Height |
2295 mm (2WD), 2290 mm (4WD) |
|
Ground Clearance |
437 mm (2WD), 350 mm (4WD) |
|
Air Cleaner Type |
3-Stage Oil Bath |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Fuel Tank Capacity |
62 litres (2WD/4WD) |
|
Battery |
12V, 80 Ah |
|
Headlamps Type |
Glass/Clear Lens |
|
Fender and Tail Lamps Type |
Regular/LED |
|
Neutral Safety Switch |
Yes |
|
Warranty |
2000 Hours or 2 Years |
|
Accessories |
Tools, Bumper, Top Link, Canopy, Drawbar, Hitch |
|
Front Wheel Track |
1395 mm (2WD), 1365 mm (4WD) |
|
Rear Wheel Track |
1430 mm (2WD), 1420 mm (4WD) |
