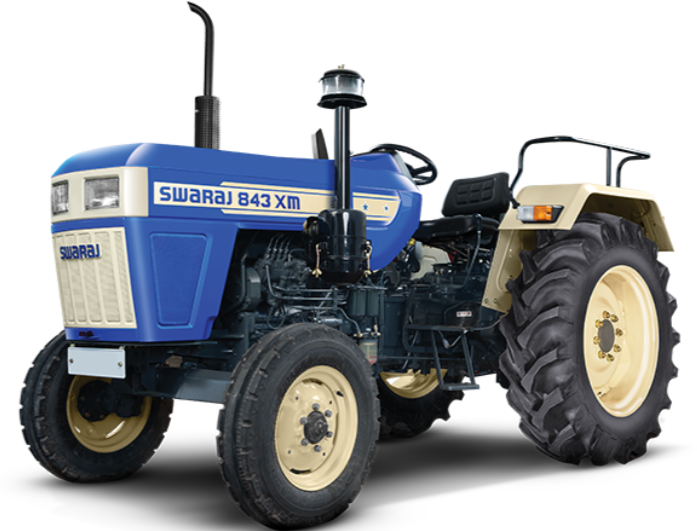

Swaraj 843 XM – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
843 XM |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Displacement |
2730 cc (2WD), 3307 cc (4WD) |
|
Engine Power |
29.82-37.28 kW (41-50 HP) |
|
Number of Cylinders |
4 Cylinders |
|
Bore |
88.90 mm (2WD), 110 mm (4WD) |
|
Stroke |
110 mm (2WD), 116 mm (4WD) |
|
Rated RPM |
1900 RPM (2WD), 2000 RPM (4WD) |
|
Service Interval |
240 h (2WD), 400 h (4WD) |
|
Clutch |
SC/IPTO (2WD), IPTO (4WD) |
|
Transmission Type |
Sliding Mesh/PCM (2WD), PCM (4WD) |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Shift Pattern |
Center Shift or Side Shift (2WD), Center Shift (4WD) |
|
Front Axle Type |
Fixed |
|
Front Axle Drive |
2WD/4WD |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Brakes |
|
Steering Type |
Mechanical/Power Steering (2WD), Power Steering (4WD) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 in (152.40 x 406.40 mm) (2WD), 8.30 x 20 in (203.82 x 508.00 mm) (4WD) |
|
Rear Tyres |
13.6 x 28 in (345.44 x 711.20 mm) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1500 kg (2WD), 1700 kg (4WD) |
|
Power Take Off |
540 RPM with 4 Multi-Speed Forward and 1 Reverse Speed |
|
Total Weight |
1840 kg (2WD), 2286 kg (4WD) |
|
Fuel Tank Capacity |
56 litre |
|
Additional Features |
Modern Aesthetics, Handles Diverse Agricultural Duties, Aesthetic Design Prioritizing Farmer Comfort |
|
Overall Length |
3430 mm |
|
Overall Width |
1770 mm (2WD), 1790 mm (4WD) |
|
Overall Height |
2215 mm (2WD), 2250 mm (4WD) |
|
Wheelbase |
1980 mm (2WD), 2090 mm (4WD) |
|
Wheel Track Front |
1330 mm (2WD), 1375 mm (4WD) |
|
Wheel Track Rear |
1405 mm |
|
Minimum Ground Clearance |
400 mm (2WD), 345 mm (4WD) |
