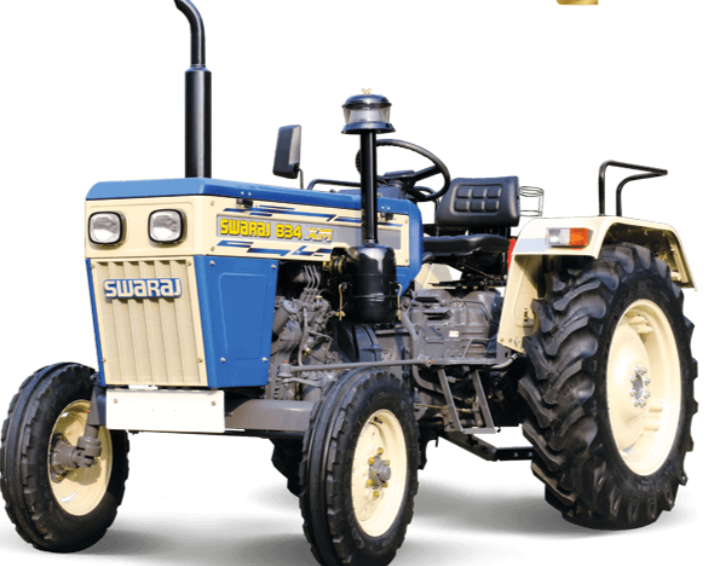

Swaraj 834 XM – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
834 XM |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
RV-30 XM+ 3A |
|
Engine Type |
4 Stroke, Direct Injection |
|
Engine Displacement |
2592 cc |
|
Engine Power |
22.37-29.82 kW (31-40 HP) |
|
Number of Cylinders |
3 Cylinders |
|
Bore and Stroke |
100 mm x 110 mm |
|
Rated RPM |
1800 RPM |
|
Air Cleaner |
3-Stage Oil Bath Type |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Clutch |
Diaphragm Type Single Clutch (280 mm diameter) |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speeds |
2.14 to 27.80 km/h |
|
Reverse Speeds |
2.67 & 10.52 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Dry Disc Type Brakes (Standard) / Oil Immersed Brakes (Optional) |
|
Steering Type |
Mechanical Steering with Heavy Duty Single Drop Arm (Standard) / HPAS (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 in (152.40 x 406.40 mm) |
|

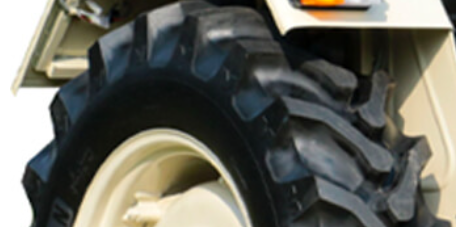

Rear Tyres |
12.4 x 28 in (314.9 x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1000 kg |
|
Power Take Off |
540 RPM / 1000 RPM |
|
Total Weight |
1780 kg |
|
Additional Features |
Oil Immersed Brakes, Bigger Rear Tyres, Taper Front Axle, Mobile cum Carrier Charger, Stabiliser Bar, Live Hydraulics (Position Control, Automatic Draft Control, Mix Control), 3-Point Linkage (Category-I & II), Suitable for Disc Harrow, Cultivator, and Rotavator |
|
Overall Length |
3460 mm |
|
Overall Width |
1750 mm |
|
Overall Height |
2200 mm |
|
Wheelbase |
2065 mm |
|
Wheel Track Front |
1300-1550 mm |
|
Wheel Track Rear |
1350-1900 mm |
|
Minimum Ground Clearance |
315 mm |
