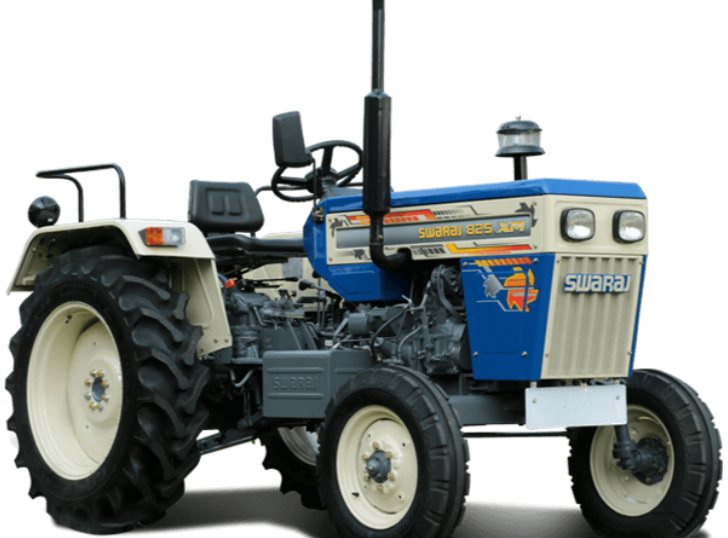

Swaraj 825 XM – 2WD Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj 825 XM |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haulage, Cultivation, Threshing, Water Pump Operations |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Stroke, Direct Injection, Diesel |
|
Engine Model |
S-15 XM |
|
Number of Cylinders |
1 |
|
Engine Rated RPM |
1650 |
|
Engine Power |
14.91-22.37 kW (20-30 HP) |
|
Engine Displacement |
1537 cc |
|
Bore and Stroke |
170 mm x 136 mm |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
3.08-28.40 km/h |
|
Reverse Speed Range |
2.71-9.34 km/h |
|
Power Range |
20-30 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Dry Disc Brakes |
|
Steering Type |
Mechanical Steering with Heavy Duty Single Drop Arm |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 16 in |
|
Rear Tyre Size |
12.4 x 28 in |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Live Hydraulics with Position, Automatic Draft, and Mix Control |
|
Three Point Linkage |
Category I & II |
|
Lifting Capacity |
1000 kg |
|
PTO Type |
Standard PTO |
|
PTO Speeds |
540 r/min |
|
PTO Power |
21.25 HP |
|
Clutch Type |
Single Dry Disc Friction Plate |
|
Wheelbase |
1915 mm |
|
Weight |
1850 kg |
|
Overall Length |
3335 mm |
|
Overall Width |
1700 mm |
|
Overall Height |
2220 mm |
|
Ground Clearance |
380 mm |
|
Air Cleaner Type |
3-Stage Oil Bath Type |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Fuel Tank Capacity |
45 litres |
|
Battery |
12V, 88 Ah |
|
Instruments |
Engine RPM Cum Hour Meter, Fuel Gauge, Ammeter, Water Temp. Gauge, Oil Pressure Indicator |
|
Neutral Safety Switch |
Yes |
|
Front Axle Type |
Straight |
|
Front Wheel Track |
1340 mm |
|
Rear Wheel Track |
1355 mm |
