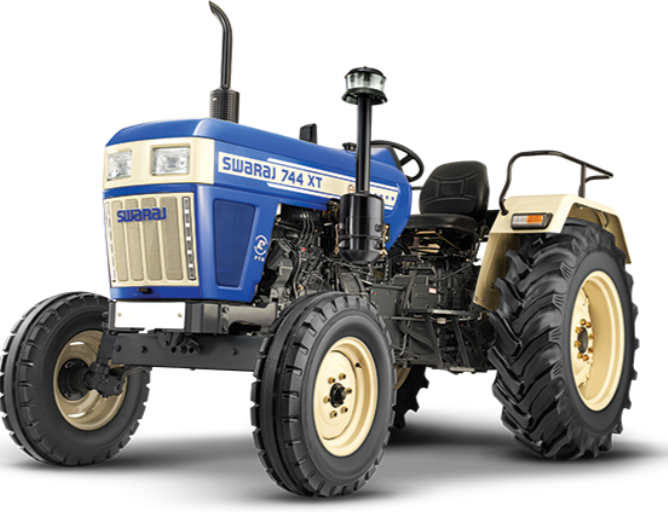

Swaraj 744 XT – 2WD/4WD Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj 744 XT |
|
Vehicle Category |
2WD/4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tasks (Tilling, Hauling, Heavy-Duty Farming) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
Water Cooled, Diesel |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
2000 |
|
Engine Power |
48 HP |
|
Engine Displacement |
3478 cc |
|
Bore and Stroke |
110 mm x 122 mm |
|
Service Interval |
400 h |
|
Transmission Type |
Sliding Mesh/Partial Constant Mesh |
|
Drive Type |
2WD/4WD |
|
Front Axle Type |
Adjustable/Fixed |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
3.10-29.20 km/h |
|
Reverse Speed Range |
4.30-14.30 km/h |
|
Power Range |
48 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Mechanical/Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size (2WD) |
6.00 x 16 or 7.50 x 16 in |
|
Rear Tyre Size (2WD) |
14.9 x 28 or 9.50 x 20 in |
|
Front Tyre Size (4WD) |
8.00 x 18 or 9.50 x 20 in |
|
Rear Tyre Size (4WD) |
14.9 x 28 in |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
ADDC with Position, Draft, and Mix Control |
|
Three Point Linkage |
Category I & II |
|
Lifting Capacity |
2000 kg |
|
Remote/Auxiliary Valve |
Single/Dual (Optional) |
|
PTO Type |
Multi-Speed Forward and Reverse |
|
PTO Speeds |
540 r/min with 4 Multispeed Forward and 1 Reverse |
|
PTO Power |
41.8 HP |
|
Clutch Type |
Single/Dual Clutch (Independent PTO) |
|
Wheelbase (2WD) |
2100 mm |
|
Weight (2WD) |
2235 kg |
|
Overall Length (2WD) |
3450 mm |
|
Overall Width (2WD) |
1835 mm |
|
Overall Height (2WD) |
2270 mm |
|
Ground Clearance (2WD) |
435 mm |
|
Wheelbase (4WD) |
2165 mm |
|
Weight (4WD) |
2435 kg |
|
Overall Length (4WD) |
3570 mm |
|
Overall Width (4WD) |
1830 mm |
|
Overall Height (4WD) |
2280 mm |
|
Ground Clearance (4WD) |
380 mm |
|
Air Cleaner Type |
3-Stage Oil Bath |
|
Cooling System |
Water Cooled |
|
Fuel Tank Capacity |
56 litres |
|
Battery |
12V, 100 Ah |
|
Headlamps Type |
Glass/Clear Lens |
|
Fender and Tail Lamps Type |
Regular/LED |
|
Neutral Safety Switch |
Yes |
|
Warranty |
6000 Hours or 6 Years |
|
Accessories |
Tow Hook, Drawbar, Hitch, Top Link |
|
Front Wheel Track (2WD) |
1390 mm |
|
Rear Wheel Track (2WD) |
1420 mm |
|
Front Wheel Track (4WD) |
1375 mm |
|
Rear Wheel Track (4WD) |
1410 mm |
