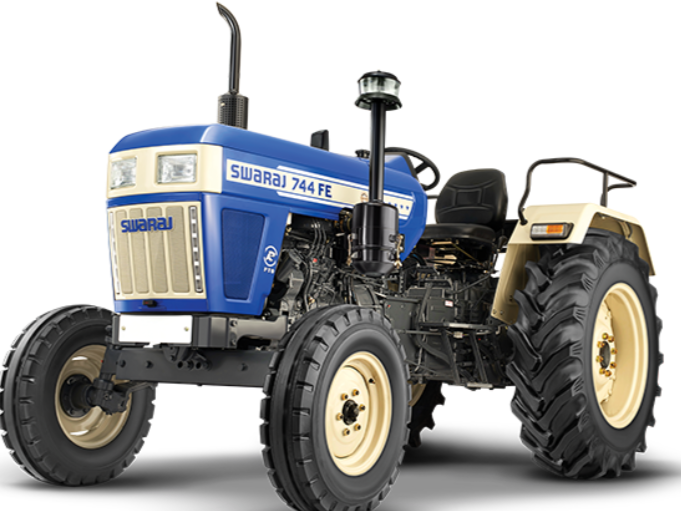

Swaraj 744 FE – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
744 FE |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Displacement |
3307 cc |
|
Engine Power |
33.56-37.28 kW (46-50 HP) |
|
Number of Cylinders |
3 Cylinders |
|
Bore |
110 mm |
|
Stroke |
116 mm |
|
Rated RPM |
2000 RPM |
|
Service Interval |
400 h |
|
Clutch |
Double Clutch (Independent PTO) (4WD) / Single Clutch (2WD) / Optional Dual Clutch |
|
Transmission Type |
Sliding Mesh/PCM |
|
Number of Gears |
8 Forward + 2 Reverse (Standard), 12 Forward + 3 Reverse (Optional) |
|
Forward Speeds |
2.79 to 30.90 km/h |
|
Reverse Speeds |
3.32 to 11.44 km/h |
|
Shift Pattern |
Centre Shift (Standard) / Side Shift (Optional) |
|
Front Axle Type |
Adjustable/Fixed |
|
Front Axle Drive |
2WD/4WD |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Brakes |
|
Steering Type |
Power Steering (4WD) / Mechanical Steering (2WD) / Optional Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (2WD) |
6.00 x 16 (152.40 x 406.40 mm), 7.50 x 16 (190.50 x 406.40 mm) in |
|
Rear Tyres (2WD) |
13.6 x 28 (345.44 x 711.20 mm), 14.9 x 28 (378.34 x 711.20 mm) in |
|
Front Tyres (4WD) |
8.00 x 18 (203.82 x 457.20 mm), 7.50 x 16 (190.50 x 406.40 mm) in |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
2000 kg |
|
Power Take Off |
540 RPM (2WD), 540 RPM with 4 Multi-Speed Forward and 1 Reverse Speed (4WD) |
|
Total Weight |
2060 kg |
|
Fuel Tank Capacity |
62 litre |
|
Additional Features |
Modern Design, Suitable for Various Agricultural Tasks, Increased Power and Versatility |
|
Overall Length |
3455 mm (2WD), 3545 mm (4WD) |
|
Overall Width |
1830 mm (2WD), 1810 mm (4WD) |
|
Overall Height |
2250 mm |
|
Wheelbase |
2095 mm (2WD), 2135 mm (4WD) |
|
Wheel Track Front |
1350 mm |
|
Wheel Track Rear |
1420 mm |
|
Minimum Ground Clearance |
435 mm |
