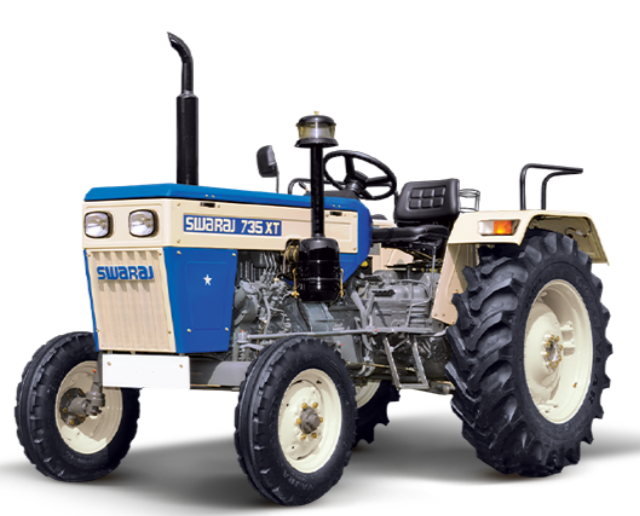

Swaraj 735 XT – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
735 XT |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Displacement |
3307 cc |
|
Number of Cylinders |
3 Cylinders |
|
Rated RPM |
2000 RPM |
|
Service Interval |
250 h |
|

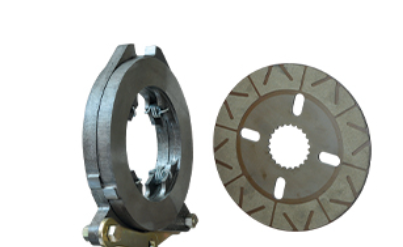

Clutch |
Single Clutch/Dual Clutch |
|
Transmission Type |
Sliding Mesh/PCM |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Shift Pattern |
Center Shift/Side Shift |
|
Front Axle Type |
Fixed |
|
Front Axle Drive |
2WD |
|
Power Range |
35-40 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil Immersed Brakes |
|
Steering Type |
Power/Manual |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 in (152.40 x 406.40 mm) |
|
Rear Tyres |
13.6 x 28 in (345.44 x 711.20 mm) |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
1500 kg |
|
Power Take Off |
540 RPM |
|
Total Weight |
1905 kg |
|
Additional Features |
High-Torque Engine, Side-Gear Mechanism with PCM, Dual Clutch, Oil-Immersed Brakes, Isolating Valve, Power Steering, Bigger Clutch Size, Optional DCV, Suitable for Agricultural and Non-Agricultural Tasks |
|
Overall Length |
3450 mm |
|
Overall Width |
1780 mm |
|
Wheelbase |
1925 mm |
