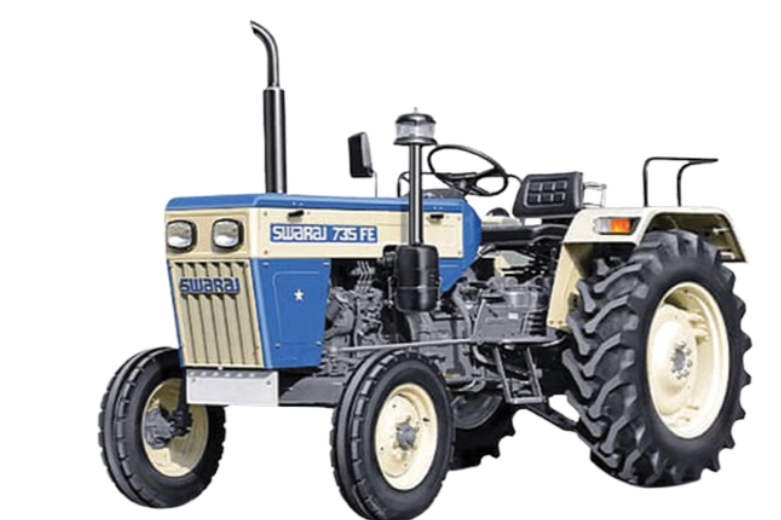

Swaraj 735 FE – 2WD Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj 735 FE |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tasks (Cultivation, Rotavation, Threshing) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Stroke, Direct Injection, Diesel |
|
Engine Model |
RV-3 XM+ 3A |
|
Number of Cylinders |
3 |
|
Engine Rated RPM |
1800 |
|
Engine Power |
26.09-29.82 kW (35-40 HP) |
|
Engine Displacement |
2734 cc |
|
Bore and Stroke |
110 mm x 116 mm |
|
Service Interval |
250 h |
|
Transmission Type |
Sliding Mesh/Partial Constant Mesh |
|
Drive Type |
2WD |
|
Front Axle Type |
Fixed |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
2.30-27.80 km/h |
|
Reverse Speed Range |
2.73-10.74 km/h |
|
Power Range |
35-40 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Power/Manual |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 16 in |
|
Rear Tyre Size |
13.6 x 28 in |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Live Hydraulics with Position and Automatic Draft Control |
|
Three Point Linkage |
Category I & II |
|
Lifting Capacity |
1500 kg |
|
Draft Control Valve |
Optional |
|
PTO Type |
Standard PTO |
|
PTO Speeds |
540 r/min |
|
PTO Power |
32.6 HP |
|

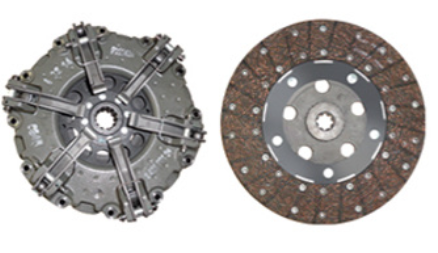

Clutch Type |
Single/Dual Clutch |
|
Wheelbase |
1945 mm |
|
Weight |
1830 kg |
|
Overall Length |
3560 mm |
|
Overall Width |
1790 mm |
|
Ground Clearance |
395 mm |
|
Air Cleaner Type |
Dry Type, Dual Element |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Fuel Tank Capacity |
45 litres |
|
Battery |
12V, 80 Ah |
|
Headlamps Type |
Regular |
|
Fender and Tail Lamps Type |
Regular |
|
Neutral Safety Switch |
Yes |
|
Front Wheel Track |
1330 mm |
|
Rear Wheel Track |
1350 mm |
