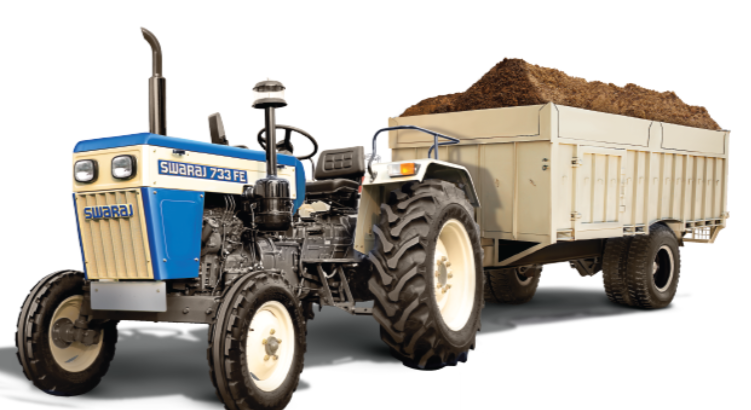

Swaraj 733 FE – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
733 FE |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Displacement |
2734 cc |
|
Engine Power |
22.37-29.82 kW (31-40 HP) |
|
Number of Cylinders |
3 Cylinders |
|
Rated RPM |
1800 RPM |
|
Service Interval |
250 h |
|
Clutch |
Single Clutch/Dual Clutch |
|
Transmission Type |
Sliding Mesh/PCM |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Shift Pattern |
Center Shift/Side Shift |
|
Front Axle Type |
Fixed |
|
Front Axle Drive |
2WD |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-Immersed Brakes |
|
Steering Type |
Power/Manual |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6.00 x 16 in (152.40 x 406.40 mm) |
|
Rear Tyres |
13.6 x 28 in(345.44 x 711.20 mm) |
Components & Features
|
Specification |
Details |
|
Power Take Off |
540 RPM |
|
Total Weight |
1340 kg |
|
Additional Features |
Isolator Valve, Oil-Immersed Brakes, Substantial Wheelbase, Suitable for Heavy-Duty Applications |
|
Overall Length |
3560 mm |
|
Overall Width |
1790 mm |
|
Overall Height |
2210 mm |
|
Wheelbase |
1945 mm |
|
Wheel Track Front |
1310-1550 mm |
|
Wheel Track Rear |
1345-1895 mm |
|
Minimum Ground Clearance |
395 mm |
