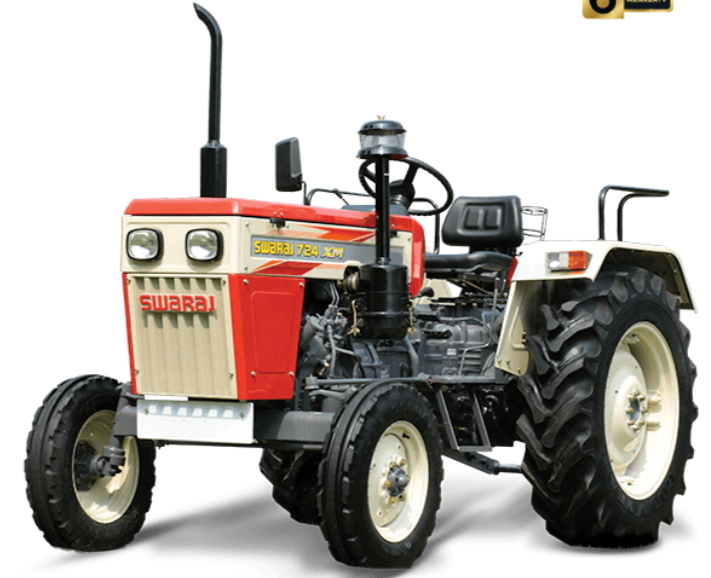

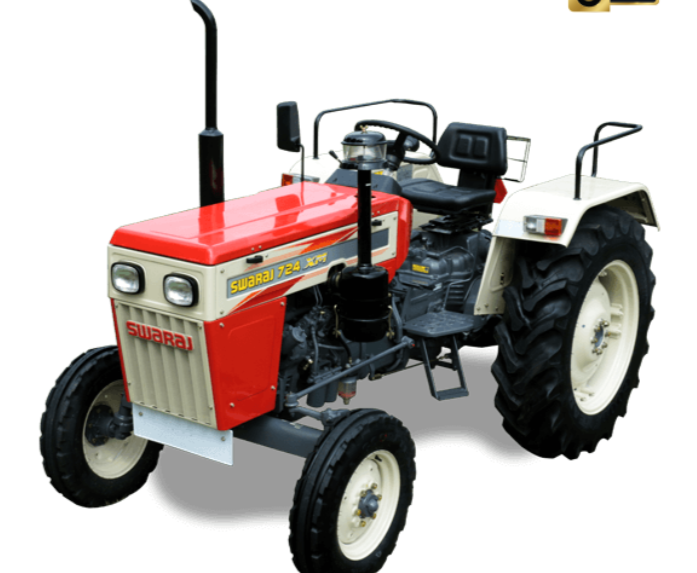

Swaraj 724 XM – 2WD Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
Swaraj 724 XM |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
Haulage and Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
4 Stroke, Direct Injection, Diesel |
|
Engine Model |
RV-2 XM + 3A |
|
Number of Cylinders |
2 |
|
Engine Rated RPM |
1800 |
|
Engine Power |
18.64-22.37 kW (25-30 HP) |
|
Engine Displacement |
1823 cc |
|
Bore and Stroke |
110 mm x 116 mm |
|
Transmission Type |
Sliding Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Forward Speed Range |
2.19-27.7 km/h |
|
Reverse Speed Range |
2.74-10.77 km/h |
|
Power Range |
25-30 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brakes |
|
Steering Type |
Mechanical (Standard), Power Steering (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
6.00 x 16 in |
|
Rear Tyre Size |
12.4 x 28 in (Standard), 13.6 x 28 (Optional) |
Components & Features
|
Specification |
Details |
|
Hydraulic Control System |
Automatic Depth & Draft Control (ADDC) |
|
Three Point Linkage |
Category I & II |
|
Lifting Capacity |
1000 kg |
|
Auxiliary Valve |
1 |
|
PTO Type |
Dual PTO |
|
PTO Speeds |
1000 r/min (Standard), 540 r/min (Optional) |
|
PTO Power |
22.5 HP |
|
Clutch Type |
Single Dry Clutch (Standard), Dual Clutch (Optional) |
|
Wheelbase |
1935 mm |
|
Weight |
1750 kg |
|
Overall Length |
3320 mm |
|
Overall Width |
1675 mm |
|
Ground Clearance |
375 mm |
|
Air Cleaner Type |
3-Stage Oil Bath Type |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Fuel Tank Capacity |
35 litres |
|
Battery |
12V, 88 Ah |
|
Quick Release Coupler |
Yes |
|
Neutral Safety Switch |
Yes |
