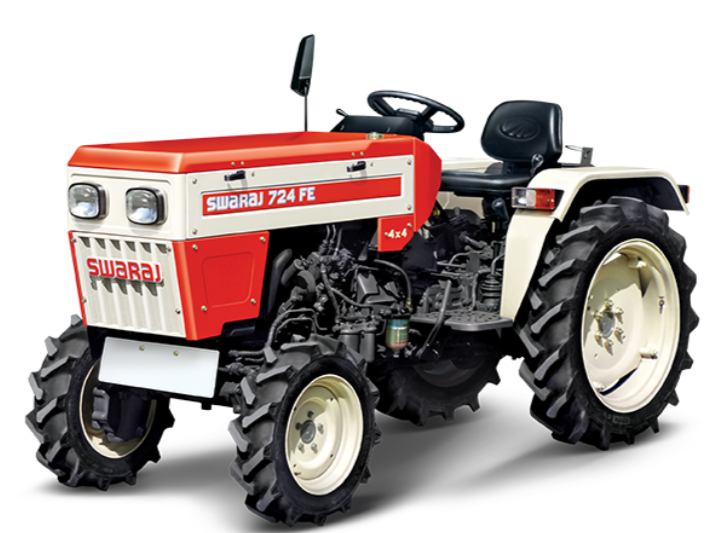

Swaraj 724 4WD – Agricultural Tractor by Swaraj
Specifications
|
Specification |
Details |
|
Tractor Model |
724 4WD |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Stroke |
4 Stroke |
|
Injection Type |
Direct Injection |
|
Cooling System |
Water Cooled with No Loss Tank |
|
Number of Cylinders |
2 Cylinders |
|
Bore and Stroke |
100 x 116 mm |
|
Engine Displacement |
1823 cc |
|
Engine Power |
18.64-22.37 kW (25-30 HP) |
|
Engine Torque |
114 Nm |
|
Rated RPM |
1800 RPM |
|
Air Cleaner |
Dry Type, Dual Element with Dust Unloader |
|
Clutch |
10" Single Diaphragm Clutch |
|
Transmission Type |
Sliding Mesh |
|
Number of Gears |
8 Forward + 4 Reverse |
|
Additional Drivetrain Features |
Side Shift Gearbox |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Oil-Immersed Multi Disc Brakes |
|
Steering Type |
Balanced Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 14 in |
|
Rear Tyres |
8.3 x 24 in |
Components & Features
|
Specification |
Details |
|
Maximum Lifting Capacity |
750 kg |
|
Power Take Off |
540 & 540E RPM |
|
Fuel Tank Capacity |
24.5 Litres |
|
Total Weight |
1250 kg |
|
Additional Features |
4WD Axle, Side Shift Gearbox, Wide Platform, Highest PTO Power in Segment, Live Hydraulics with ADDC, Position Control, Automatic Draft Control, 3-point Linkage (Category I & II), Isolator Valve, Electricals (12 V, 100 Ah Battery, Starter Motor, Alternator), Instruments (Digital Instrument Cluster), Bull Gear Reduction Rear Axle, Suitable for Inter-Cultivation and Orchard Operations |
|
Overall Length |
2932 mm |
|
Overall Width |
1120 mm |
|
Overall Height |
1480 mm |
|
Wheelbase |
1762 mm |
|
Wheel Track Front |
955 mm |
|
Wheel Track Rear |
880 mm |
|
Minimum Ground Clearance |
260 mm |
