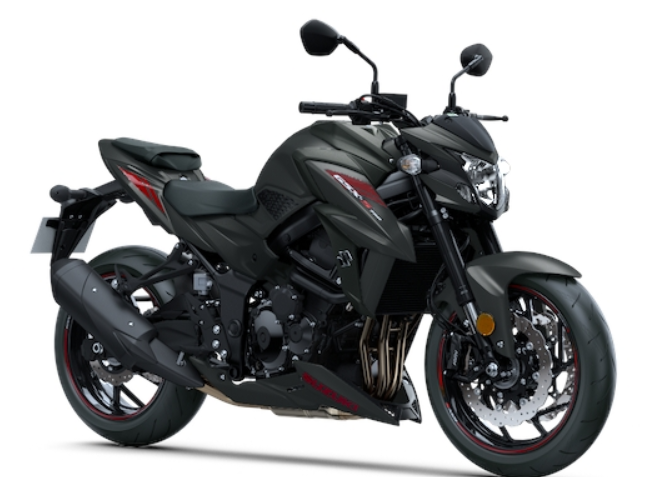

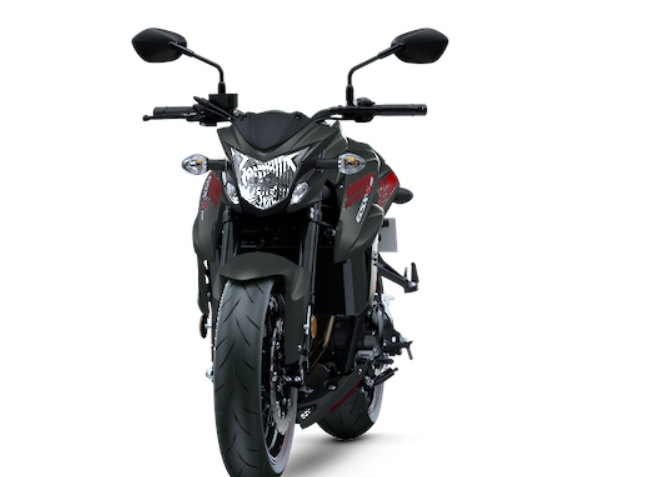

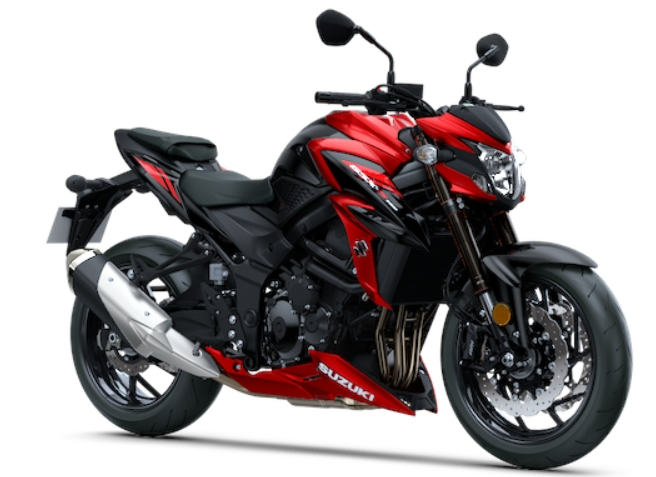

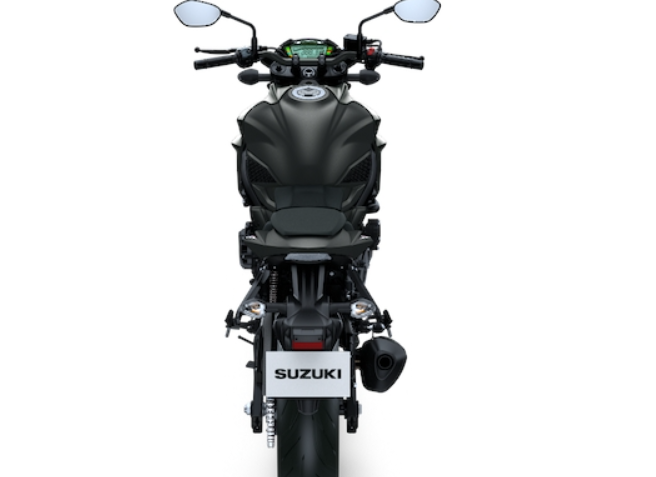

Suzuki GSX-S750 2025 – Middleweight Naked Sportbike
Specifications
|
Specification |
Details |
|
Engine |
749 cc, 4-stroke, liquid-cooled, DOHC, inline-four, Euro 4 |
|
Power |
112.6 hp (84 kW) @ 10,500 rpm |
|
Torque |
81 Nm (59.7 lb-ft) @ 9,000 rpm |
|
Transmission |
6-speed manual, chain drive |
|
Fuel System |
Fuel injection, Suzuki Dual Throttle Valve (SDTV), 10-hole injectors |
|
Brakes |
Front: Dual 310 mm discs, Nissin radial-mount 4-piston calipers, ABS; Rear: 240 mm disc, Nissin single-piston caliper, ABS |
|
Suspension |
Front: Inverted KYB forks, adjustable preload, 4.7 in (120 mm) travel; Rear: Link-type KYB monoshock, adjustable preload, 5.4 in (138 mm) travel |
|
Wheel Size |
Front: 17-inch; Rear: 17-inch |
|
Tyres |
Front: 120/70ZR17M/C (58W); Rear: 180/55ZR17M/C (73W), Bridgestone Battlax Hypersport |
|
Weight |
467 lbs (212 kg, curb) |
|
Dimensions (LxWxH) |
83.7 x 30.9 x 41.3 in (2125 x 785 x 1050 mm) |
|
Wheelbase |
57.3 in (1455 mm) |
|
Ground Clearance |
5.3 in (135 mm) |
|
Fuel Capacity |
4.2 gal (16 L) |
|
Mileage |
~47 mpg (20 kmpl, claimed, ~188-mile range) |
|
Top Speed |
~137 mph (220 km/h, estimated) |
|
Price (MSRP, Philippines) |
₱568,000 (~$10,000 USD) (Year-2025) |
|
Seating Capacity |
2 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Tubular steel backbone, twin-spar sportbike design |
|
Engine Type |
Inline-four, liquid-cooled, DOHC, 11.0:1 compression ratio |
|
Transmission |
6-speed manual, Suzuki Clutch Assist System (SCAS) |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Inverted KYB forks, adjustable preload, 4.7 in (120 mm) travel |
|
Rear Suspension |
Link-type KYB monoshock, adjustable preload, 5.4 in (138 mm) travel |
|
Front Brake |
Dual 310 mm discs, Nissin radial-mount 4-piston calipers, ABS |
|
Rear Brake |
240 mm disc, Nissin single-piston caliper, ABS |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
10-spoke cast aluminum; Front: 17-inch; Rear: 17-inch |
|
Tyres |
Front: 120/70ZR17M/C (58W); Rear: 180/55ZR17M/C (73W), Bridgestone Battlax Hypersport |
|
Wheel Size |
Front: 17-inch; Rear: 17-inch |
Components & Features
|
Specification |
Details |
|
Seat |
Dual seat, rider: 32.3 in (820 mm) height |
|
Handlebar |
Tapered aluminum, upright streetfighter position |
|
Instrument Cluster |
Full LCD (speedometer, tachometer, traction control, gear position, odometer, trip meters, fuel, temperature, range, consumption, clock) |
|
Features |
Suzuki Advanced Traction Control (3 modes, off), Low RPM Assist, Easy Start, halogen headlight, LED tail light, 5 tachometer display patterns |
|
Safety Features |
ABS, traction control, Suzuki Clutch Assist System (SCAS), pass switch |
Available Colors
|
Specification |
Details |
|
Colors |
Metallic Triton Blue/Glass Sparkle Black, Metallic Oort Gray/Glass Sparkle Black, Pearl Mira Red, Metallic Matte Black |
