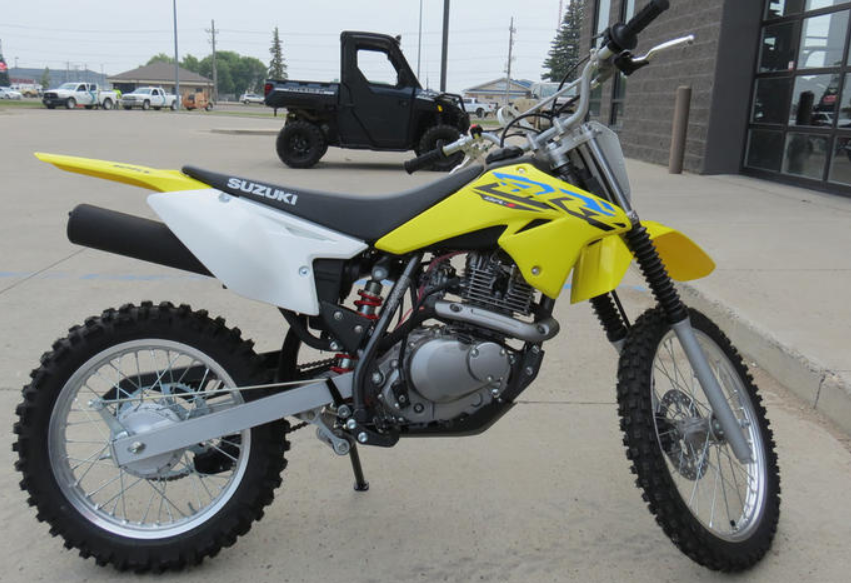

Suzuki DR-Z125L 2025 – Youth Off-Road Motorcycle
Specifications
|
Specification |
Details |
|
Engine |
124 cc, 4-stroke, air-cooled, single-cylinder, SOHC |
|
Power |
~8.5 hp (6.3 kW) @ 7,500 rpm |
|
Torque |
~7.4 lb-ft (10 Nm) @ 5,500 rpm |
|
Transmission |
5-speed manual, wet multi-plate clutch, chain drive |
|
Fuel System |
Mikuni VM20SS 20 mm carburetor |
|
Brakes |
Front: 190 mm disc, single-piston caliper; Rear: Drum |
|
Suspension |
Front: Telescopic forks, 5.3 in (135 mm) travel; Rear: Link-type monoshock, adjustable preload, 5.7 in (145 mm) travel |
|
Wheel Size |
Front: 19-inch; Rear: 16-inch |
|
Tyres |
Front: 70/100-19M/C (42M); Rear: 90/100-16M/C (52M), tube-type |
|
Weight |
196 lbs (89 kg, curb) |
|
Dimensions (LxWxH) |
72.2 x 30.3 x 43.3 in (1835 x 770 x 1100 mm) |
|
Wheelbase |
49.8 in (1265 mm) |
|
Ground Clearance |
10.0 in (255 mm) |
|
Fuel Capacity |
1.1 gal (4.2 L) |
|
Mileage |
Not applicable (off-road use) |
|
Top Speed |
~45 mph (72 km/h, estimated) |
|
Price (MSRP, US) |
$3,599(Year-2025) |
|
Price (MSRP, Canada) |
$4,499 CAD(Year-2025) |
|
Price (MSRP, Europe) |
Not available |
|
Seating Capacity |
1 |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Steel backbone frame, steel swingarm |
|
Engine Type |
Single-cylinder, SOHC, air-cooled, 2-valve |
|
Transmission |
5-speed manual, wet multi-plate clutch, DID 428HG chain |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Telescopic forks, 5.3 in (135 mm) travel |
|
Rear Suspension |
Link-type monoshock, adjustable preload, 5.7 in (145 mm) travel |
|
Front Brake |
190 mm disc, single-piston caliper |
|
Rear Brake |
Drum |
Wheels & Tyres
|
Specification |
Details |
|
Wheels |
Spoke-style steel; Front: 19-inch; Rear: 16-inch |
|
Tyres |
Front: 70/100-19M/C (42M); Rear: 90/100-16M/C (52M), tube-type |
|
Wheel Size |
Front: 19-inch; Rear: 16-inch |
Components & Features
|
Specification |
Details |
|
Seat |
Single seat, 30.5 in (775 mm) height |
|
Handlebar |
Steel, upright off-road position |
|
Instrument Cluster |
None (off-road focused) |
|
Features |
Kickstarter, lightweight plastic skid plate, RM-Z-inspired styling, manual clutch, adjustable throttle limiter, spark-arrestor muffler |
|
Safety Features |
No ABS (off-road use), parental supervision required, not for public roads, single rider, weight limit 132 lbs (60 kg) |
Available Colors
|
Specification |
Details |
|
Colors |
Champion Yellow No. 2 |
