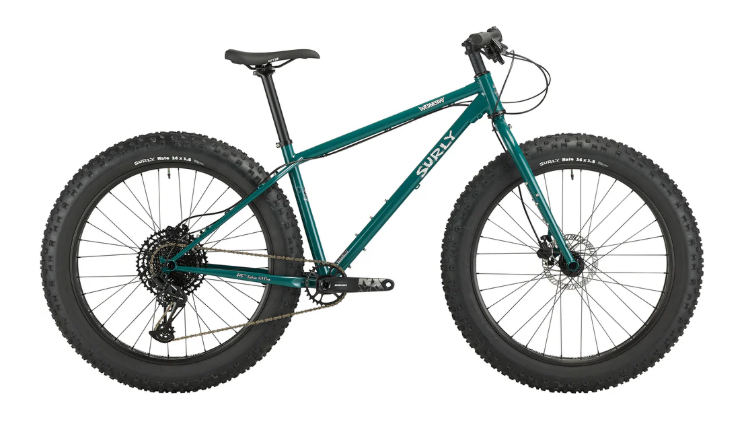

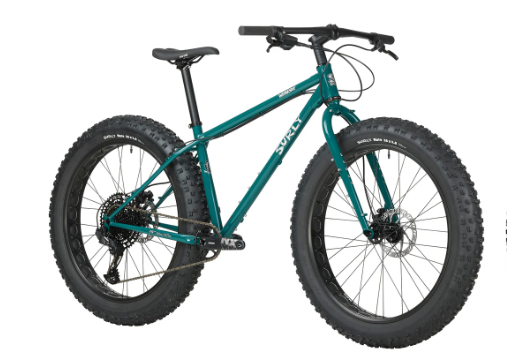

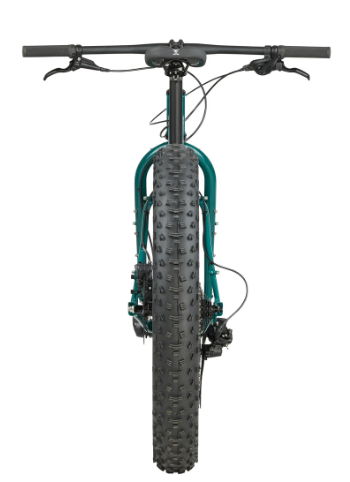

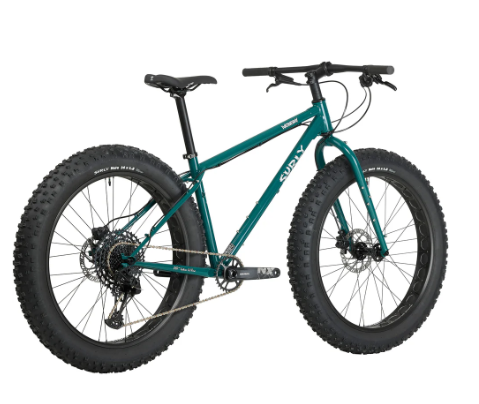

2025 Surly Wednesday Fat Bike (OG Algae)
Specifications
|
Specification |
Details |
|
Model |
Wednesday |
|
Vehicle Category |
Fat Bike |
|
Application |
Bikepacking, fat-biking, all-terrain |
|
Starting Price (2025) |
$1,849.00 USD |
|
Color Options |
OG Algae |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Surly Wednesday, 100% Surly proprietary 4130 Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated |
|
Fork |
Surly Wednesday, 100% Surly 4130 Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated, 468mm axle-to-crown, 47mm offset, 100mm suspension-corrected |
|
Drivetrain Compatibility |
1x12 speed, compatible with 1x (Fat bike 170: 34T), 2x (Fat bike 170: 26/38T, Surly OD: 22/36T) |
|
Dropouts |
Universal cast, 12x177mm rear (thru-axle included), 15x150mm front (thru-axle included) |
|
Bottom Bracket |
100mm threaded (1.37" x 24TPI), SRAM DUB |
|
Crankset |
SRAM NX Eagle DUB, 30T |
|
Chain |
SRAM SX Eagle |
|
Rear Derailleur |
SRAM SX Eagle |
|
Shifter |
SRAM SX Eagle |
|
Cassette |
SRAM PG-1210 Eagle, 11–50T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports front and rear racks, multiple three-pack mounts, fenders, 2 standard bottle mounts (XS–M), 3 standard bottle mounts (L–XL) |
|
Wheels/Tyres |
Surly Nate 26 x 3.8", 60 tpi, tubeless ready |
|
Wheel Size |
26" |
|
Alternate Wheel/Tyre Sizes |
Frame: 26 x 4.6" (rear axle position), 26 x 3.8" (front axle position), 27.5 x 4.0" (rear axle position), 29 x 3.0"; Fork: 26 x 5.25", 29 x 3.0" |
|
Brakes |
Tektro HD-M275/276, disc, 160mm front/rear rotors, 6-bolt |
|
Brake Levers |
Tektro HD-M275/276 |
|
Handlebar |
Width 700mm (XS–S), 750mm (M–XL) |
|
Stem |
Promax, 31.8mm, length 60mm (XS–S), 70mm (M–L), 80mm (XL) |
|
Headset |
Cane Creek, ZS44/28.6 upper, EC44/30 lower |
|
Saddle |
WTB Volt |
|
Seatpost |
Promax, 30.9mm, 0 offset |
|
Seatpost Clamp |
Stainless, 33.1mm, Black |
|
Grips |
Velo Black |
|
Front Hub |
Novatec, 15x150mm, 32H, 6-bolt |
|
Rear Hub |
Novatec, 12x177mm, 32H, 6-bolt |
|
Rims |
Surly My Other Brother Darryl, tubeless ready |
|
Spokes |
14G Black |
|
Interior Features |
2 standard bottle mounts (XS–M), 3 standard bottle mounts (L–XL), stealth dropper post routing |
|
Exterior Features |
Front and rear rack mounts, multiple three-pack mounts, rear fender mounts, 2 three-pack mounts on fork (upper, lower, mid-blade threaded) |
|
Weight |
36.1 lb (Medium) |
