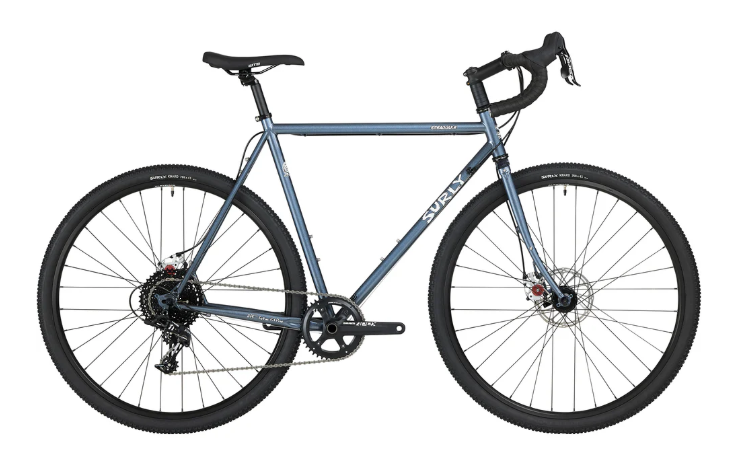

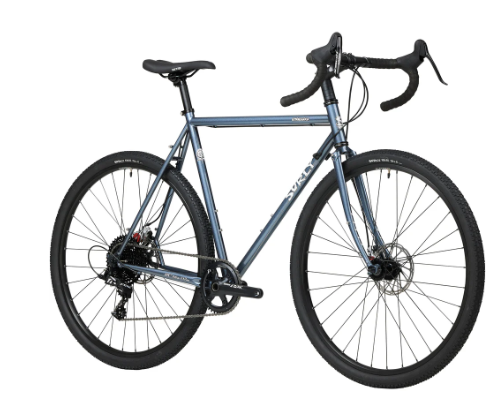

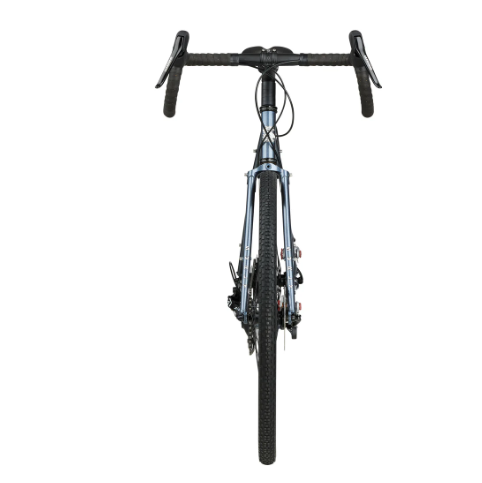

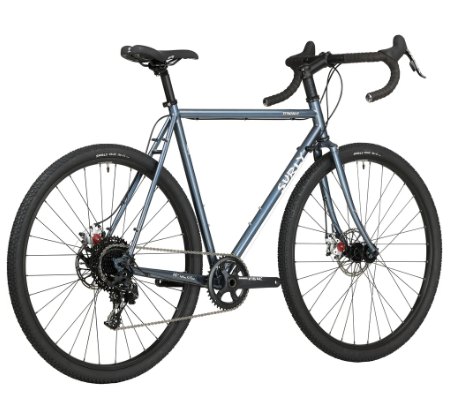

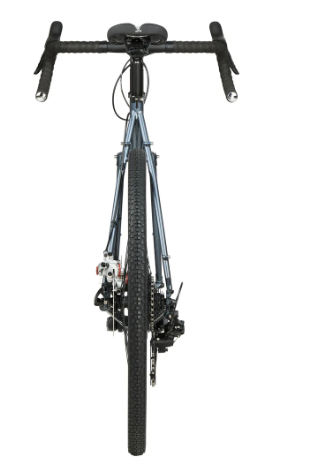

2025 Surly Straggler 700c Gravel Bike (Cold Steel Blue)
Specifications
|
Specification |
Details |
|
Model |
Straggler 700c |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel, endurance road, light bikepacking |
|
Starting Price (2025) |
$1,699.00 USD |
|
Color Options |
Cold Steel Blue |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Surly Straggler, 100% Surly proprietary 4130 Chromoly tubing, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|
Fork |
Surly Straggler, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated, 400mm axle-to-crown (700c), 44mm offset |
|
Drivetrain Compatibility |
1x11 speed, compatible with 1x (Road: 50T), 2x (Road: 39/53T) |
|
Dropouts |
Forward-exiting horizontal, 10x135mm rear, 10x100mm front, singlespeed compatible |
|
Bottom Bracket |
68mm threaded (1.37" x 24TPI), SRAM |
|
Crankset |
SRAM Apex 1, 42T |
|
Chain |
SRAM PC-1110 |
|
Rear Derailleur |
SRAM Apex 1 |
|
Shifter |
SRAM Apex |
|
Cassette |
SunRace CSMS7, 11–42T, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports racks (Surly 8- and 24-Pack), fenders, frame bags, seat bags, 2 standard bottle mounts, upper/lower/mid-blade rack mounts on fork |
|
Wheels/Tyres |
Surly Knard 700c x 41mm, 33 tpi |
|
Wheel Size |
28" (700c) |
|
Alternate Wheel/Tyre Sizes |
700c x 50mm (w/o fenders), 700c x 47mm (w/ fenders), 650b x 50mm (w/ fenders) |
|
Brakes |
SRAM Avid BB7, disc, 160mm front/rear rotors, 6-bolt |
|
Brake Levers |
SRAM Apex |
|
Handlebar |
Salsa Cowbell, width 420mm (54cm), 440mm (56–58cm), 460mm (60–62cm) |
|
Stem |
Kalloy, 31.8mm, length 100mm (54–56cm), 120mm (58–62cm) |
|
Headset |
Cane Creek 40, EC34/28.6 upper, EC34/30 lower |
|
Saddle |
WTB Volt |
|
Seatpost |
Kalloy, 27.2 x 350mm, offset on 52–62cm frames |
|
Seatpost Clamp |
Surly Stainless, 30.0mm |
|
Grips |
Black Cork |
|
Front Hub |
Novatec, 6-bolt disc, 32H, QR, 10x100mm |
|
Rear Hub |
Novatec, 6-bolt disc, 32H, QR, 10x135mm |
|
Rims |
Alex Adventurer 2, tubeless ready, 32H |
|
Spokes |
14G Black |
|
Interior Features |
2 standard bottle mounts, downtube mounted shifter bosses |
|
Exterior Features |
Front and rear fender mounts, upper/lower/mid-blade rack mounts on fork, Surly 8- and 24-Pack rack compatibility |
|
Weight |
27 lb 2 oz (56cm) |
