2025 Surly Straggler 700c Bike (Black)
Specifications
|
Specification |
Details |
|
Model |
Straggler 700c |
|
Vehicle Category |
Gravel Bike |
|
Application |
Gravel, endurance road, light bikepacking |
|
Starting Price (2025) |
$1,699.00 USD |
|
Color Options |
Black |
Frame & Drivetrain
|
Specification |
Details |
|

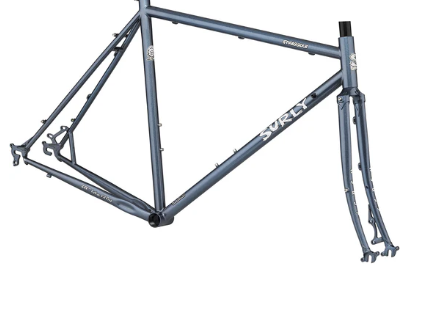

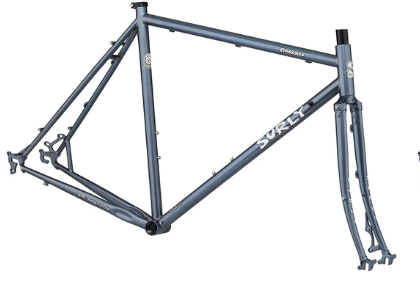

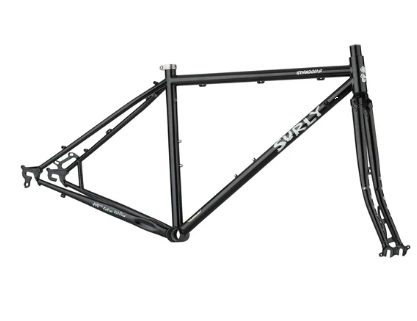

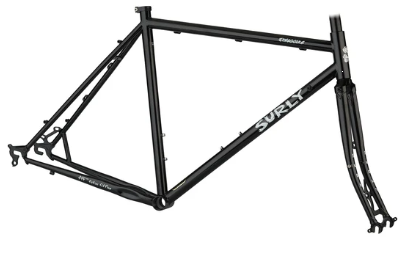

Frame |
Surly Straggler, 100% Surly proprietary 4130 CroMoly tubing, double-butted main triangle, TIG-welded, ED coated |
|
Fork |
Surly Straggler, 4130 CroMoly, disc only, lugged and brazed, sloping crown with threaded eyelets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets |
|
Drivetrain Compatibility |
1x (Road: 50T), 2x (Road: 39/53T) |
|
Dropouts |
Forward-exiting horizontal, 10 x 135mm rear, 10 x 100mm front |
|
Bottom Bracket |
68mm threaded (1.37" x 24TPI), SRAM GXP |
|
Crankset |
SRAM FC Apex, 42T |
|
Chain |
CNP1110 |
|
Rear Derailleur |
SRAM Apex 1x11 |
|
Shifter |
SRAM Apex |
|
Cassette |
SunRace CSMS7, 11–42T, 11-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt 142 saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports 8- and 24-Pack Racks, frame bags, seat bags, fenders, bottle cages (2 Standard) |
|
Wheels/Tyres |
Surly Knard, 700c x 41mm, 33 tpi |
|
Wheel Size |
700c |
|
Alternate Wheel/Tyre Sizes |
700c x 50mm (w/o fenders), 700c x 47mm (w/ fenders), 650b x 50mm (w/ fenders) |
|
Brakes |
SRAM Avid BB7 Road, 160mm front/rear, 6-Bolt |
|
Brake Levers |
SRAM Apex |
|
Handlebar |
Salsa Cowbell, 420mm (54cm), 440mm (56–58cm), 460mm (60–62cm) |
|
Stem |
31.8, 4-bolt, 100mm (54–56cm), 120mm (58–62cm) |
|
Headset |
Cane Creek 40, EC34/28.6 upper, EC34/30 lower |
|
Saddle |
WTB Volt 142 |
|
Seatpost |
Promax SP-2016, 27.2 x 350mm, offset (54–62cm) |
|
Seatpost Clamp |
Surly Stainless, 30.0mm |
|
Grips |
Black Cork |
|
Front Hub |
Novatec, 10 x 100mm QR, 6-Bolt, 32h |
|
Rear Hub |
Novatec, 10 x 135mm QR, 6-Bolt, 32h |
|
Rims |
Alex Adventurer 2, tubeless ready |
|
Spokes |
14G Black |
|
Interior Features |
Bottle mounts (2 Standard), downtube-mounted shifter bosses (cable housing stops not included) |
|
Exterior Features |
Rack mounts (upper, lower, and mid-blade threaded), fender mounts (front and rear), frame bags, seat bags, singlespeed compatibility |
