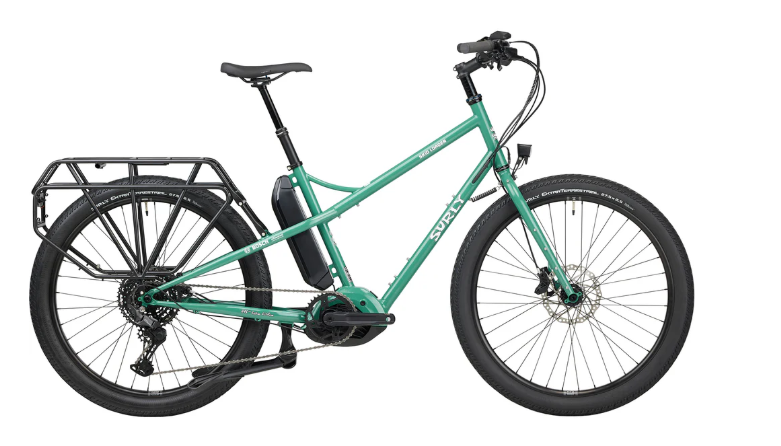

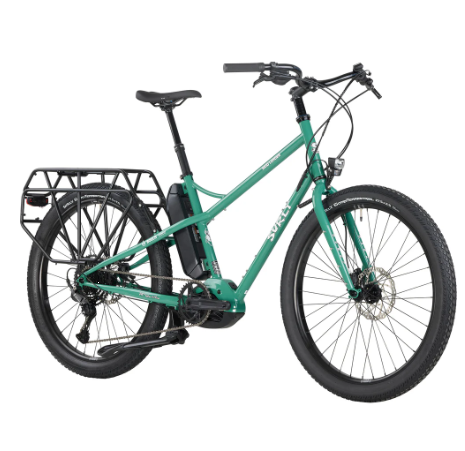

2025 Surly Skid Loader 27.5" Electric Cargo Bike (Illegal Smile Green)
Specifications
|
Specification |
Details |
|
Model |
Skid Loader |
|
Vehicle Category |
Electric Cargo Bike |
|
Application |
Commuting, 1 child passenger, e-assist midtail |
|
Starting Price (2025) |
$4,599.00 USD |
|
Color Options |
Illegal Smile Green |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated |
|
Fork |
100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated |
|
Drivetrain Compatibility |
1x (38T) |
|
Dropouts |
12 x 148mm rear (Surly axle included), 15 x 110mm front (Surly axle included) |
|
Crankset |
FSA CK-763, 38T |
|
Chain |
Shimano Linkglide LG500 |
|
Rear Derailleur |
Shimano CUES U6000 GS |
|
Shifter |
Shimano CUES U6000 |
|
Cassette |
Shimano Linkglide LG300, 11-48T, 10-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt Medium saddle), 1 child passenger capacity |
|
Fuel Type |
Electric-assist (Bosch Performance Line Cargo, 545Wh, 36V, 14.4Ah) |
|
Cargo Capacity |
400 lb max (rider + cargo), dedicated rear rack (100 lb, deck alone 59 lb), supports front rack, fenders, bottle cages (1 Standard on Small, 2 Standard on Medium-Large) |
|
Wheels/Tyres |
Surly ExtraTerrestrial, 27.5 x 2.5", 60 tpi, tubeless ready |
|
Wheel Size |
27.5 in |
|
Brakes |
Tektro HD-M750, 4-piston, 180mm front/rear, 6-bolt |
|
Brake Levers |
Tektro HD-M750 |
|
Handlebar |
Surly Terminal, 718mm (Small), 735mm (Medium-Large) |
|
Stem |
Kalloy 31.8, 60mm (Small), 70mm (Medium), 80mm (Large) |
|
Headset |
Cane Creek Viscoset Upper / 40 Series Lower, EC34/28.6 upper, EC34/30 lower |
|
Saddle |
WTB Volt Medium |
|
Seatpost |
Tranz-X YSP15 Dropper, 30.9mm, 120mm travel |
|
Seatpost Clamp |
Surly Stainless, 33.1mm |
|
Grips |
Velo Black |
|
Front Hub |
Novatec, 15 x 110mm, 6-bolt, 36h |
|
Rear Hub |
Novatec, 12 x 148mm, 6-bolt, 36h |
|
Rims |
WTB HTZ Trail i35, 27.5", TCS 2.0 |
|
Spokes |
14 Gauge Stainless |
|
Interior Features |
Bottle mounts (1 Standard on Small, 2 Standard on Medium-Large), dual Bosch PowerPack battery mounts, internal cable routing for dropper post, brake, shifter, and lights |
|
Exterior Features |
Dedicated rear rack (100 lb, deck 59 lb), front rack mounts, fender mounts (front and rear), Ursus Jumbo 80 dual-leg kickstand, front wheel stabilizer, integrated AXA Nxt 60 headlight and AXA Blueline taillight |
|
Weight |
60 lb 15 oz (Medium) |
