Specifications
|
Specification |
Details |
|
Model |
Ogre |
|
Vehicle Category |
All-Season Commuter Bike |
|
Application |
Bikepacking, doubletrack, exploration |
|
Starting Price (2025) |
$1,899.00 USD |
|
Color Options |
Orlok's Shadow |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated |
|
Fork |
100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated, 445mm axle-to-crown, 45mm offset |
|
Drivetrain Compatibility |
1x12 speed, compatible with 1x (Mtn: 42T, Boost: 46T), 2x (Mtn: 34/46T, Boost: 42/48T), 3x (Mtn: 24/36/48T) |
|
Dropouts |
Gnot-Boost 145mm, 12x142mm or 12x148mm (axle included), 10x135mm with Surly 10/12 Adapter Washers (not included), 10x100mm front |
|
Bottom Bracket |
73mm threaded (1.37" x 24TPI), Shimano MT501 BSA |
|
Crankset |
Shimano MT511, 30T |
|
Chain |
KMC X12 EPT Anti-Rust |
|
Rear Derailleur |
Shimano Deore M6100 SGS |
|
Shifter |
Shimano Deore M6100 |
|
Cassette |
Shimano Deore M6100, 10-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt Medium saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports racks, panniers, fenders, 2 Three-Pack mounts (XS-SM), 1 Standard + 2 Three-Pack mounts (MD-XL), fork rack mounts (2 Four-Pack, upper, lower, mid-blade), Surly Trailer mounts |
|
Wheels/Tyres |
Surly ExtraTerrestrial, 29 x 2.5", 60tpi, Tubeless Ready (Slate wall), Tubes installed, WTB TCS sealant included |
|
Wheel Size |
29" |
|
Alternate Wheel/Tyre Sizes |
27.5 x 3.0", 27.5 x 2.8" (w/ fenders) |
|

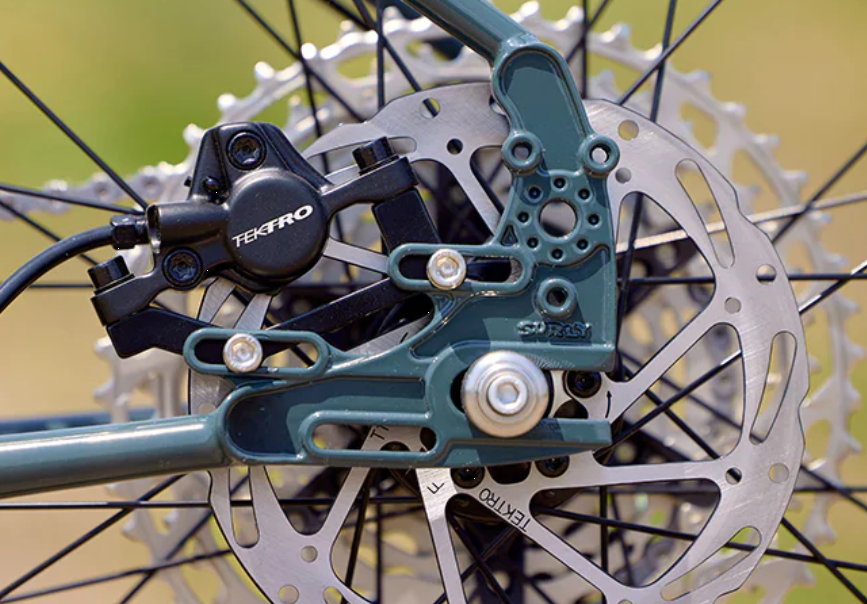

Brakes |
Tektro HD-275/276, 2-piston, disc, 160mm front/rear rotors, 6-bolt |
|
Brake Levers |
Tektro HD-M275/HD-M276 |
|
Handlebar |
Salsa Bend, width 700mm (Small), 740mm (Medium-XL) |
|
Stem |
Promax DA-296, length 70mm (Small), 80mm (Medium), 90mm (Large), 100mm (X-Large) |
|
Headset |
Cane Creek 40, EC34/28.6 upper, EC34/30 lower |
|
Saddle |
WTB Volt Medium |
|
Seatpost |
Promax SP-2016, 27.2 x 300mm |
|
Seatpost Clamp |
Surly Stainless, 30.0mm |
|
Grips |
Velo Black |
|
Front Hub |
Novatec QR, 9x100mm, 32H, 6-bolt |
|
Rear Hub |
Novatec TA, 12x142mm, 32H, 6-bolt |
|
Rims |
WTB ST i30, 29", TCS 2.0, 32H |
|
Spokes |
14G Black |
|
Interior Features |
2 Three-Pack mounts (XS-SM), 1 Standard + 2 Three-Pack mounts (MD-XL), dedicated Rohloff cable routing and mount for OEM 2 axle plate |
|
Exterior Features |
Front and rear fender mounts, fork rack mounts (2 Four-Pack, upper, lower, mid-blade), dedicated Surly Trailer mounts |
|
Weight |
30 lb 1 oz (Medium) |
