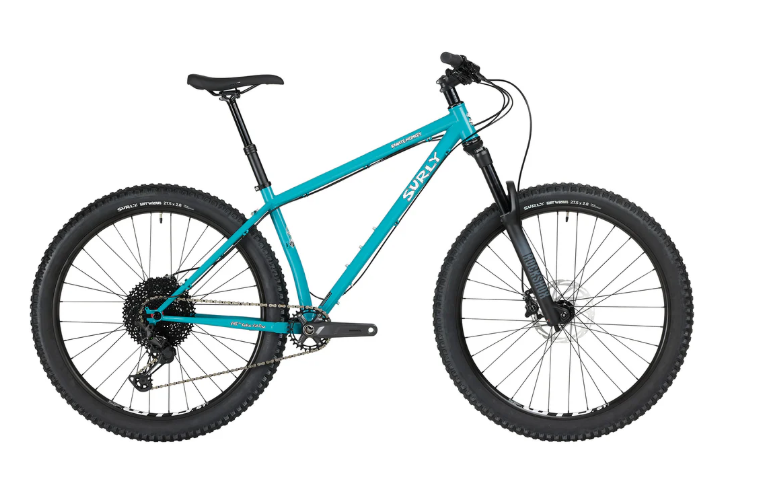

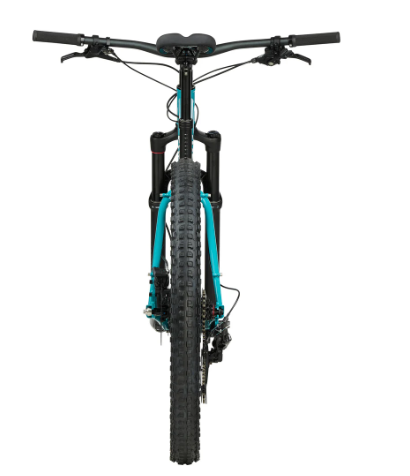

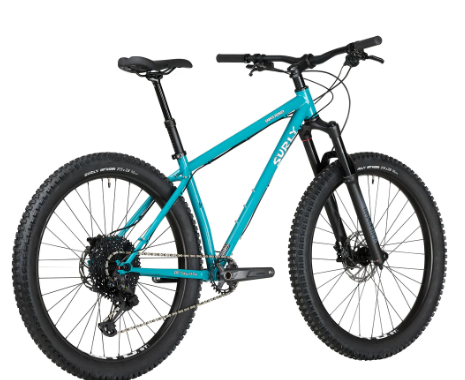

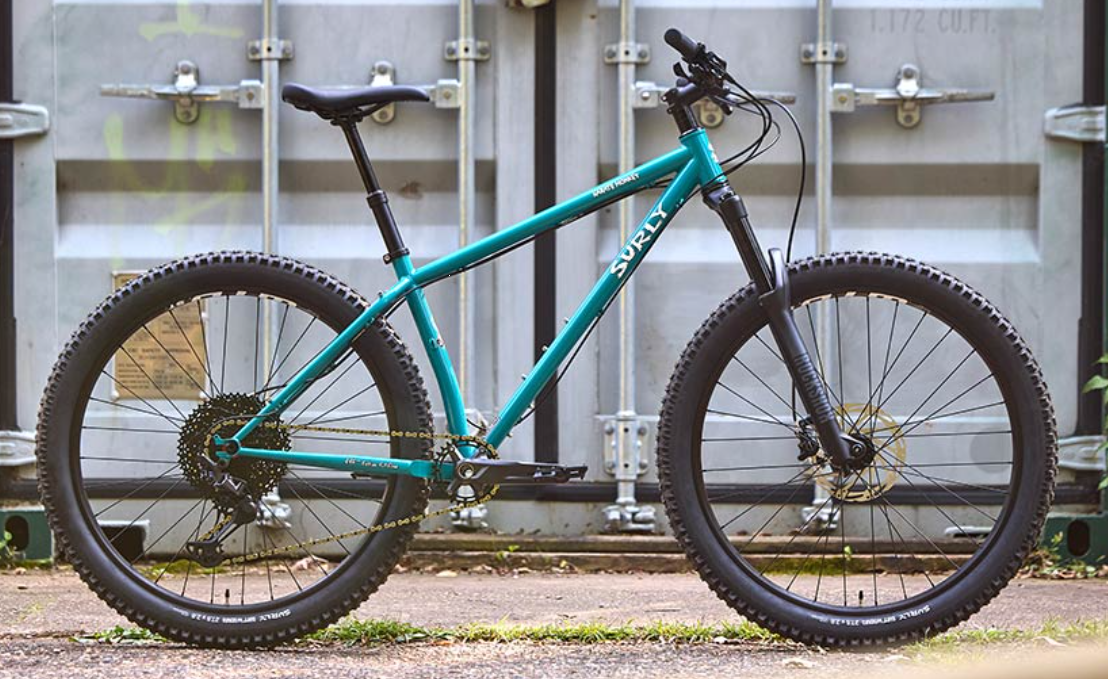

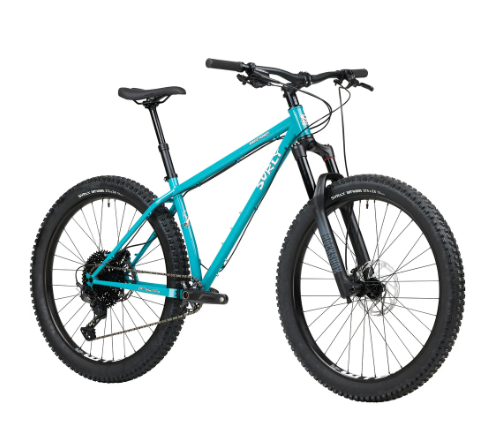

2025 Surly Karate Monkey Front Suspension 27.5" Bike (Lost at Sea Blue)
Specifications
|
Specification |
Details |
|
Model |
Karate Monkey Front Suspension |
|
Vehicle Category |
Hardtail Mountain Bike |
|
Application |
Singletrack, doubletrack, bikepacking |
|
Starting Price (2025) |
$2,599.00 USD |
|
Color Options |
Lost at Sea Blue |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Surly Karate Monkey, 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated |
|
Fork |
RockShox 35 Gold RL, 27.5", 15 x 110mm, 140mm travel, 44mm offset |
|
Drivetrain Compatibility |
1x (Mtn: 28T, Boost: 32T), 2x (Mtn: 24/34T, Boost: 24/36T) |
|
Dropouts |
Gnot-Boost, 12 x 142mm or 12 x 148mm (Surly axle included), 15 x 110mm front (Surly axle included) |
|
Bottom Bracket |
73mm threaded (1.37" x 24TPI), Shimano MT501, BSA |
|
Crankset |
Shimano MT511, 30T |
|
Chain |
KMC X12 Anti-Rust |
|
Rear Derailleur |
Shimano M8100 XT SGS |
|
Shifter |
Shimano Deore XT M8100 |
|
Cassette |
SunRace CSMZ800, 11-51T, 12-speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt Medium saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports racks, framebags, water bottle cages |
|
Wheels/Tyres |
Surly Dirt Wizard, 27.5 x 2.8", 60tpi, tubeless ready |
|
Wheel Size |
27.5 in |
|
Alternate Wheel/Tyre Sizes |
29 x 2.5" |
|
Brakes |
Tektro HD-M3520, 180mm front, 160mm rear, 6-bolt |
|
Brake Levers |
Tektro HD-M3520 |
|
Handlebar |
Salsa Rustler, 31.8mm, width 750mm (XS–Small), 800mm (Medium–X-Large) |
|
Stem |
Promax DA-296, 31.8mm, length 60mm (XS), 70mm (Small–Large), 80mm (X-Large) |
|
Headset |
Cane Creek, ZS44/28.6 upper, EC44/30 lower |
|
Saddle |
WTB Volt Medium |
|
Seatpost |
TranzX YSP15, 30.9mm, travel 100mm (XS), 120mm (Small–X-Large), dropper post compatible |
|
Seatpost Clamp |
Surly stainless, 33.1mm |
|
Grips |
Velo Black |
|
Front Hub |
Novatec, 15 x 110mm, 32h |
|
Rear Hub |
Novatec, 12 x 148mm, 32h |
|
Rims |
WTB ST i35 TCS 2.0, 27.5" |
|
Spokes |
14G Black |
|
Interior Features |
Bottle mounts (1 Standard + 1 Three-Pack: XS–M, 2 Standard + 1 Three-Pack: L–XL), stealth dropper post routing |
|
Exterior Features |
Rear fender mounts, fork mounts (2 Three-Pack), compatible with racks, framebags |
|
Weight |
33 lb 13 oz (Medium) |
