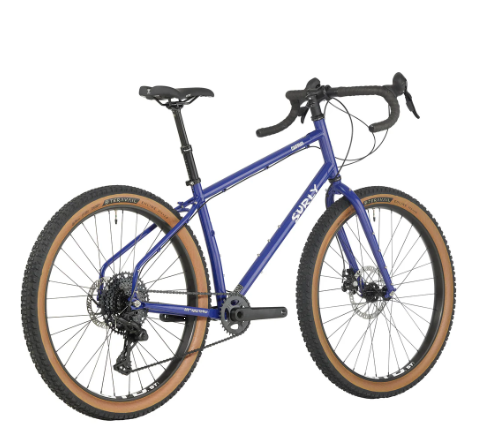

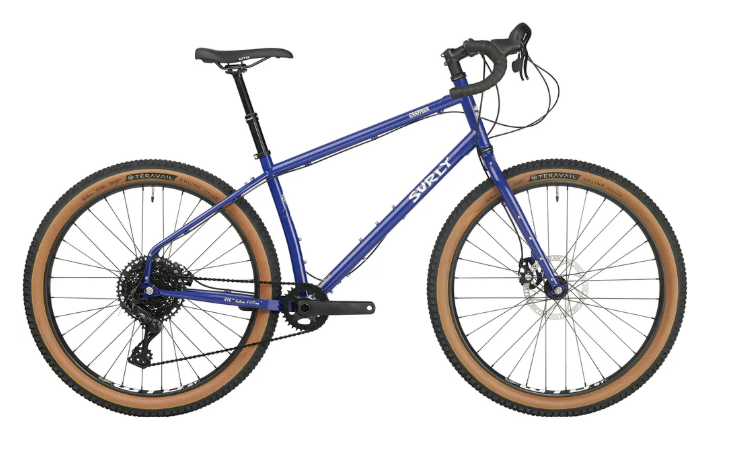

2025 Surly Grappler Bike Subterranean Homesick Blue
Specifications
|
Specification |
Details |
|
Model |
Grappler |
|
Vehicle Category |
Drop Bar Trail Bike |
|
Application |
Bikepacking, singletrack, fire roads |
|
Starting Price (2025) |
$1,899.00 USD (Sale Price: $1,499.00 USD) |
|
Color Options |
Subterranean Homesick Blue |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Surly Grappler, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|
Fork |
Surly Dinner Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |
|
Drivetrain Compatibility |
1x10 speed, compatible with 1x (mtn: 36T, Boost: 38T), 2x (mtn: 36/26T, Boost: 39/32T) |
|
Dropouts |
Horizontal-slotted, Gnot-Boost spacing, 12x142mm or 12x148mm (Surly axle included), 10x135mm with Surly 10/12 Adapter Washers (not included) |
|
Bottom Bracket |
73mm BSA, threaded, Samox BSA |
|
Crankset |
Samox BSA 2PCS Boost, 32T |
|
Chain |
KMC X10 Black |
|
Rear Derailleur |
microSHIFT M6205 |
|
Shifter |
microSHIFT SB-M100A, AdventX Dual Control Levers |
|
Cassette |
microSHIFT, 11-48T, 10 speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt 142 saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports racks, panniers, fenders, water bottle cages, three-pack mounts |
|

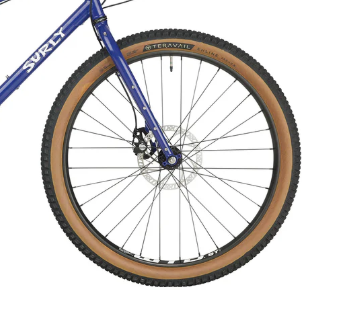

Wheels/Tyres |
Teravail Ehline, 27.5 x 2.5", 60tpi |
|
Wheel Size |
27.5" (650b) |
|
Alternate Wheel/Tyre Sizes |
27.5 x 2.8" with fender, 27.5 x 3.0" without fender, 29 x 2.1" with fender (front axle), 29 x 2.5" with fender (rear axle) |
|
Brakes |
Tektro Mira, 51mm IS mount, 180mm front rotor, 160mm rear rotor |
|
Brake Levers |
microSHIFT SB-M100A, AdventX Dual Control Levers |
|
Handlebar |
Salsa Cowchipper, 31.8mm, width 400mm (XS), 420mm (S), 440mm (M), 460mm (L), 480mm (XL) |
|
Stem |
Promax DA-296, 31.8mm, length 60mm (XS-XL) |
|
Headset |
Cane Creek 40, EC34/28.6 upper, EC34/30 lower |
|
Saddle |
WTB Volt 142 |
|
Seatpost |
TransX YSP15 Dropper, 30.9mm, 360mm, 100mm travel |
|
Seatpost Clamp |
Surly Stainless 33.1mm |
|
Grips |
Black Cork |
|
Front Hub |
Novatec 15x110mm, 6-bolt, 32H |
|
Rear Hub |
Novatec 12x148mm, 6-bolt, 32H |
|
Rims |
WTB ST i40 TCS |
|
Spokes |
14G Black |
|
Interior Features |
Seatstay-mounted bottle bosses (S-XL), three-pack mounts on upper and lower downtube (S-XL), stealth dropper post routing |
|
Exterior Features |
Three-pack mounts on each fork blade, upper and lower threaded rack mounts, front and rear fender mounts |
