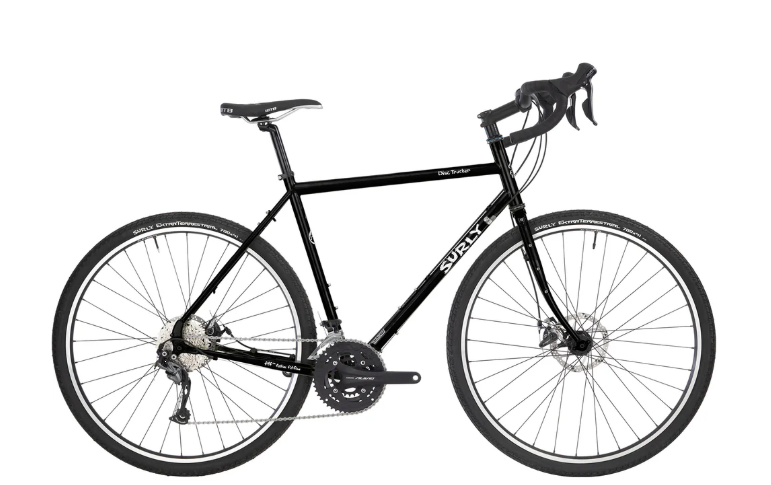

2025 Surly Disc Trucker 700c Bike (Hi-Viz Black)
Specifications
|
Specification |
Details |
|
Model |
Disc Trucker 700c |
|
Vehicle Category |
Drop Bar Touring Bike |
|
Application |
On-road touring, commuting, light gravel |
|
Starting Price (2025) |
$2,099.00 USD |
|
Color Options |
Hi-Viz Black |
Frame & Drivetrain
|
Specification |
Details |
|
Frame |
Surly Disc Trucker, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|
Fork |
Surly Disc Trucker, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated |
|
Drivetrain Compatibility |
3x9 speed, compatible with 1x (Road: 47T), 2x (Road: 34/50T), 3x (Road: 33/47/56T) |
|
Dropouts |
Redesigned front and rear dropouts, 12mm thru-axles (12x100mm front, 12x142mm rear) |
|
Bottom Bracket |
68mm threaded (1.37" x 24TPI), Shimano SM-BB52 |
|
Crankset |
Shimano Alivio 48x36x26T |
|
Chain |
KMC X9 |
|
Front Derailleur |
Shimano Sora R3030 |
|
Rear Derailleur |
Shimano Alivio M4000 SGS |
|
Shifter |
Shimano Sora 3x9 |
|
Cassette |
Shimano Alivio, 11-34T, 9 speed |
Components & Features
|
Specification |
Details |
|
Seating |
1 passenger (WTB Volt Sport saddle) |
|
Fuel Type |
Human-powered |
|
Cargo Capacity |
Supports racks, panniers, fenders, water bottle cages, spare spoke holders |
|
Wheels/Tyres |
Surly ExtraTerrestrial 700x41, Tubeless Ready |
|
Wheel Size |
700c |
|
Alternate Wheel/Tyre Sizes |
700c x 47mm with or without fenders |
|
Brakes |
TRP Spyre C, Flat-mount disc, 160mm front and rear rotors |
|
Brake Levers |
Shimano Sora |
|
Handlebar |
Surly Truckstop Bar, width 480mm (56-64cm) |
|
Stem |
ProMax, 31.8mm, 4-bolt, length 100mm (56-58cm), 110mm (60cm), 120mm (62-64cm) |
|
Headset |
Cane Creek 40, EC34/28.6 upper, EC34/30 lower |
|
Saddle |
WTB Volt Sport |
|
Seatpost |
ProMax 27.2mm, 350mm, offset (56-64cm), not dropper post compatible |
|
Seatpost Clamp |
Surly Stainless 30.0mm |
|
Grips |
Black Cork |
|
Front Hub |
Novatec 12x100mm, 6 bolt, 36H |
|
Rear Hub |
Novatec 12x142mm, 6 bolt, 36H |
|
Rims |
Alex Adventurer 2 |
|
Spokes |
14G Black |
|
Interior Features |
3 standard bottle mounts (seat tube, downtube top, downtube bottom), seatstay-mounted spoke holder, Surly removable kickstand plate |
|
Exterior Features |
Fork blade three-pack mounts, dynamo hub routing, fender mounts (front and rear), rack mounts (upper, lower, mid-blade threaded), spare spoke holders |
