Specification

Details

Model

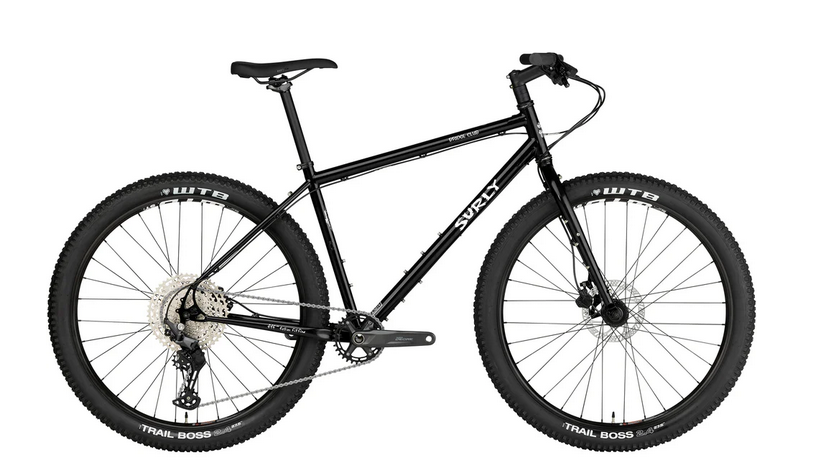

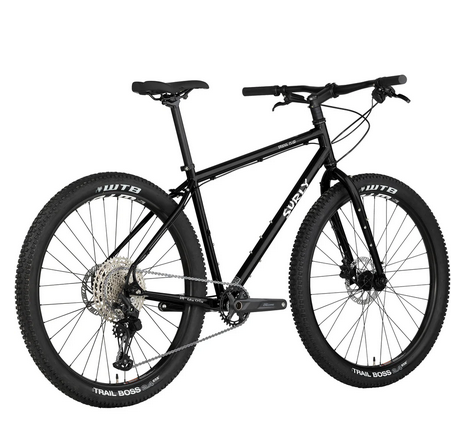

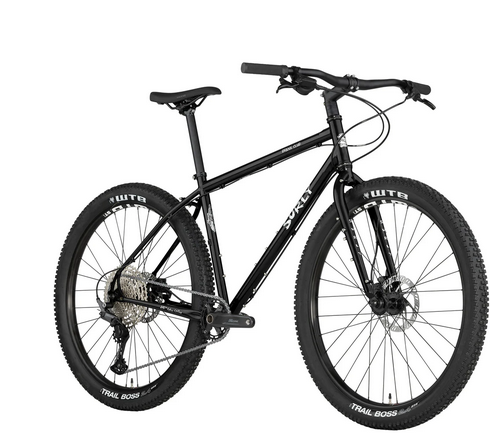

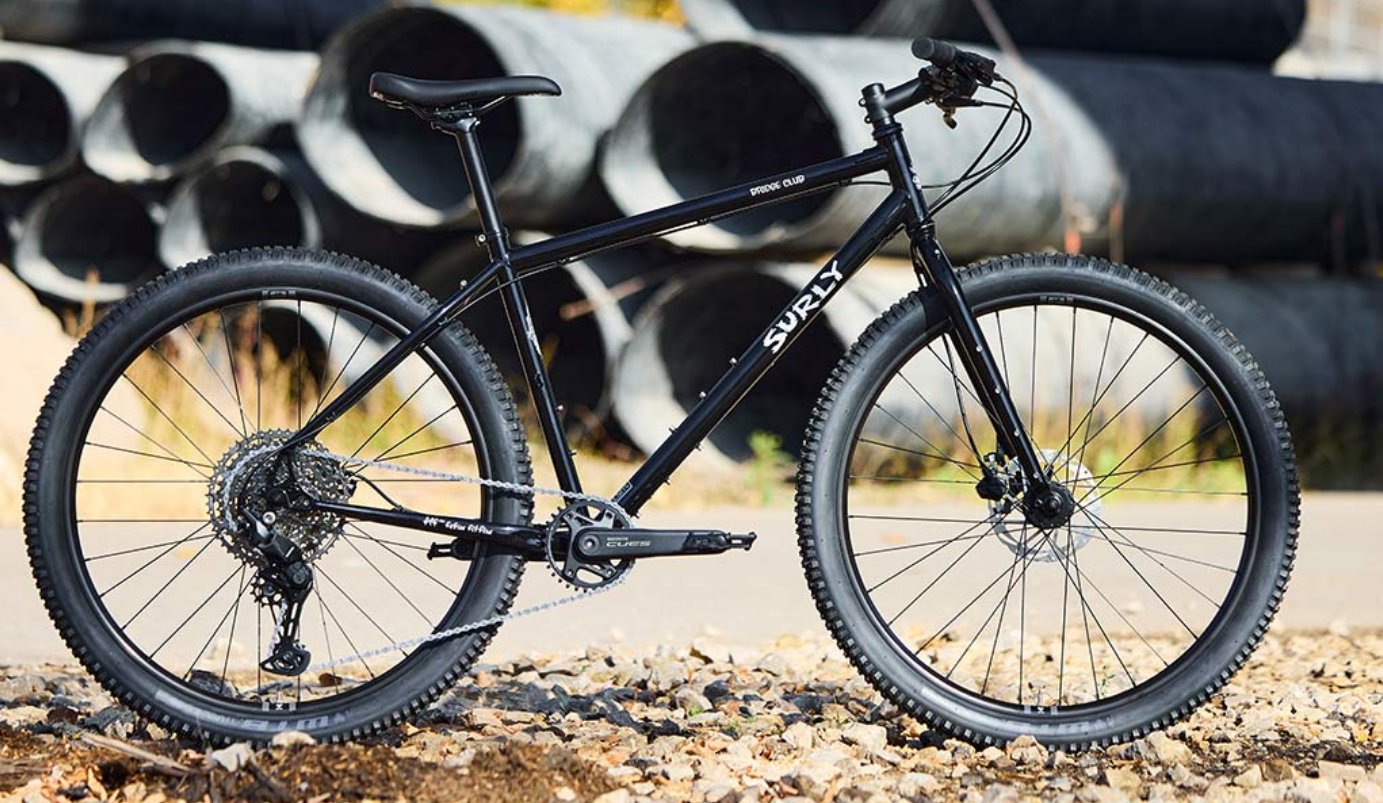

Bridge Club

Vehicle Category

All Road Touring Bike

Application

Light bikepacking, doubletrack, commuting

Starting Price (2025)

$1,499.00 USD

Color Options

Black

Specification

Details

Frame

Surly Bridge Club, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork

Surly Cocktail Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Drivetrain Compatibility

1x11 speed, compatible with 1x (Mtn: 34T, Boost: 40T), 2x (Mtn: 26/40T, Boost: 32/42T), 3x (Mtn: 22/36/44T)

Dropouts

Single position vertical, Gnot-Boost 138mm, 10 x 135mm or 10 x 141mm

Bottom Bracket

73mm threaded (1.37" x 24TPI), Shimano

Crankset

Shimano Deore FC-M5100, 32t

Chain

KMC X11

Rear Derailleur

Shimano Deore RD-M5100, Shadow Plus

Shifter

Shimano Deore SL-M5100-R

Cassette

Shimano Deore 11-speed, 11-51t

Specification

Details

Seating

1 passenger (WTB Volt saddle)

Fuel Type

Human-powered

Cargo Capacity

Supports racks, panniers, framebags

Wheels/Tyres

WTB Trail Boss 27.5 x 2.4", 27tpi, Tubeless Ready

Wheel Size

27.5 in

Alternate Wheel/Tyre Sizes

26 x 3.0" (2.8" with fenders), 27.5 x 2.8" (2.6" with fenders), 700c x 47mm with or without fenders

Brakes

Tektro HD-M275/276, 51mm I.S. (203mm max rotor), Tektro 160/160mm 6-Bolt rotors

Brake Levers

Tektro HD-M275/276

Handlebar

Salsa Bend

Stem

Promax, 31.8mm

Headset

Cane Creek, EC34/28.6 upper, EC34/30 lower

Saddle

WTB Volt

Seatpost

Promax 27.2mm, not dropper post compatible

Seatpost Clamp

Surly Stainless 30.0mm

Grips

Velo Black

Front Hub

Novatec, QR x 100mm, 6 bolt, 32h

Rear Hub

Novatec, QR x 141mm, 6 bolt, 32h

Rims

WTB ST i29 TCS

Interior Features

Bottle mounts (XS: 2 Three-Pack; S-XL: 1 Standard, 2 Three-Pack)

Exterior Features

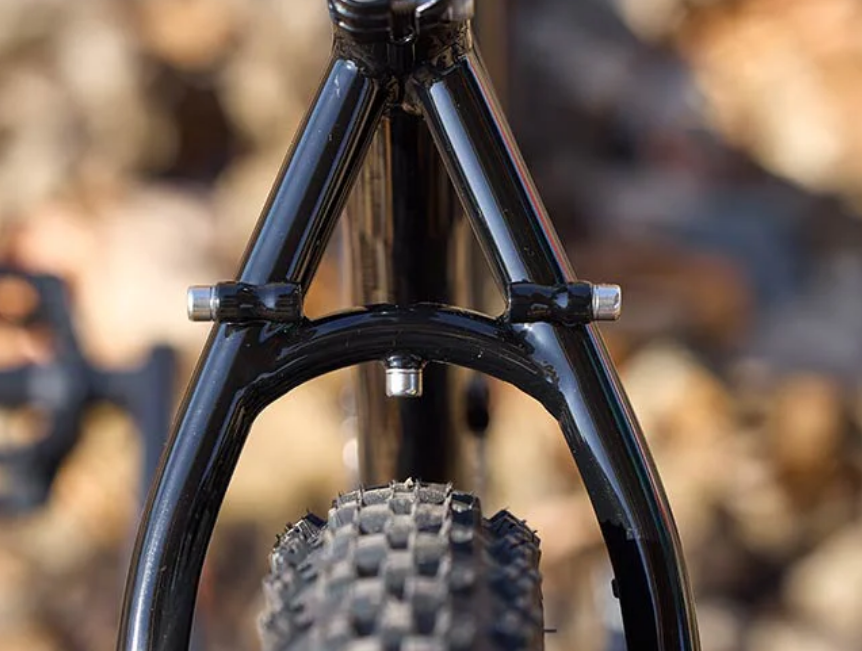

Fender mounts (front and rear), fork rack mounts (upper, lower, mid-blade threaded), 2 Three-Pack mounts on fork, compatible with racks, panniers, framebags
