Specification

Details

Model

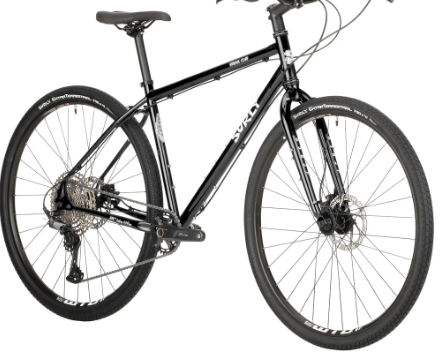

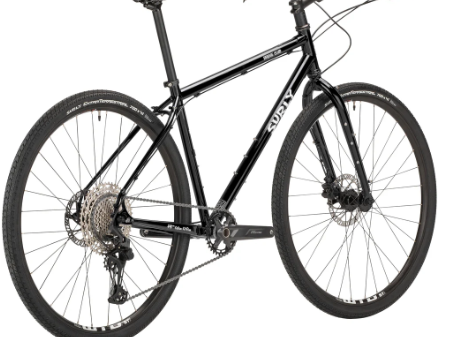

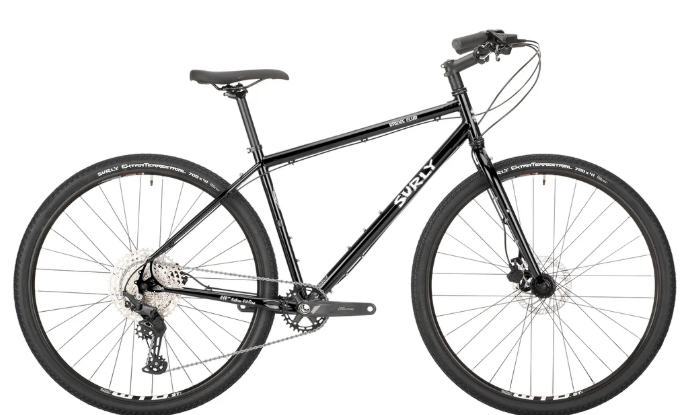

Bridge Club 700c

Vehicle Category

All Road Touring Bike

Application

Light bikepacking, doubletrack, commuting

Starting Price (2025)

$1,449.00 USD

Color Options

Black

Specification

Details

Frame

Surly Bridge Club, 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

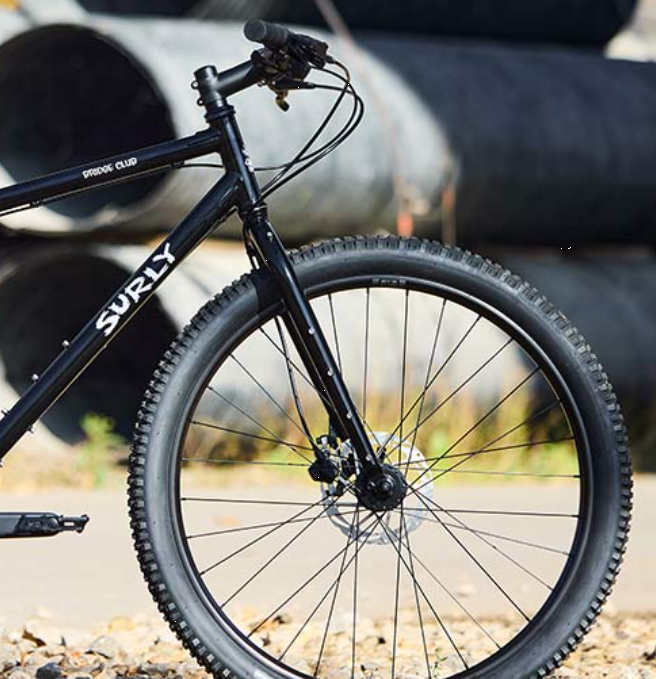

Fork

Surly Cocktail Fork, 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Drivetrain Compatibility

1x11 speed, compatible with 1x (Mtn: 34T, Boost: 40T), 2x (Mtn: 26/40T, Boost: 32/42T), 3x (Mtn: 22/36/44T)

Dropouts

Single position vertical, Gnot-Boost 138mm, 10 x 135mm or 10 x 141mm

Bottom Bracket

73mm threaded (1.37" x 24TPI), Shimano BSA

Crankset

Shimano Deore M5100, 32T

Chain

KMC X11 EPT

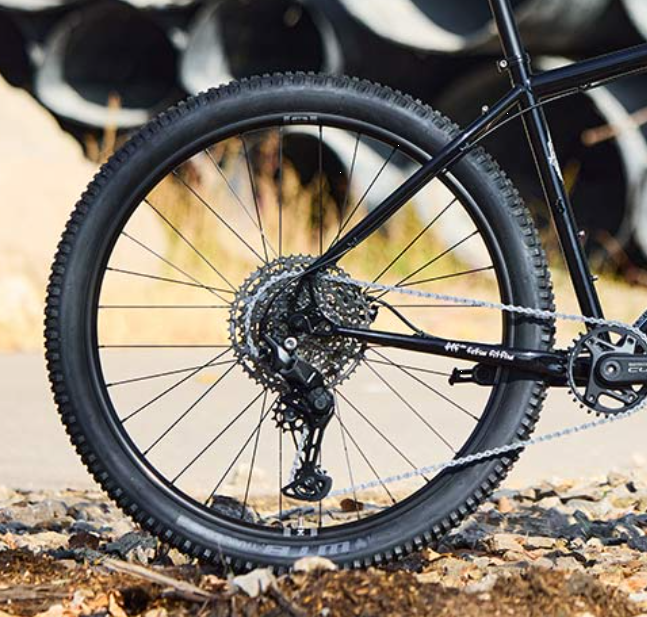

Rear Derailleur

Shimano Deore M5100 Shadow Plus

Shifter

Shimano Deore M5100 Rapid Fire

Cassette

Shimano Deore CSM5100, 11-51t

Specification

Details

Seating

1 passenger (WTB Volt 142 saddle)

Fuel Type

Human-powered

Cargo Capacity

Supports racks, panniers, framebags

Wheels/Tyres

Surly Extraterrestrial 700x41, 60tpi, Tubeless Ready

Wheel Size

700c

Alternate Wheel/Tyre Sizes

26 x 3.0" (2.8" with fenders), 27.5 x 2.8" (2.6" with fenders), 700c x 47mm with or without fenders

Brakes

Tektro HD-M275, 51mm I.S. (203mm max rotor), Tektro 160/160mm 6-Bolt rotors

Brake Levers

Tektro HD-M275

Handlebar

Surly Terminal Bar, width 700mm (XS, Small), 740mm (Medium, Large, XL)

Stem

Promax, 31.8mm, length 80mm (XS, Small), 90mm (Medium, Large, XL)

Headset

Cane Creek 40, EC34/28.6 upper, EC34/30 lower

Saddle

WTB Volt 142

Seatpost

Promax 27.2mm, not dropper post compatible

Seatpost Clamp

Surly Stainless 30.0mm

Grips

Velo Black

Front Hub

Novatec, QR x 100mm, 6 bolt, 32h

Rear Hub

Novatec, QR x 141mm, 6 bolt, 32h

Rims

WTB ST i21 TCS

Spokes

14G Black

Interior Features

Bottle mounts (XS: 2 Three-Pack; S-XL: 1 Standard, 2 Three-Pack)

Exterior Features

Fender mounts (front and rear), fork rack mounts (upper, lower, mid-blade threaded), 2 Three-Pack mounts on fork, compatible with racks, panniers, framebags

Weight

Not specified (frame designed for versatility and durability)
