STEYR TERRUS CVT 6290 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR TERRUS CVT 6290 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel (Compatible with HVO) |
|
Application |
Rapid Transport, Heavy-Duty Field Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6-Cylinder, 6,728 cm³, Common Rail, Turbocharger with e-VGT, Intercooler, HI-eSCR2, Stage V, 24 Valves, Reversible Fan, Engine Exhaust Brake |
|
Maximum Power |
288 HP / 212 kW @ 1,800 RPM |
|
Rated Power (ECE R120) |
271 HP / 199 kW @ 2,100 RPM |
|
Maximum Torque |
1,194 Nm @ 1,400 RPM |
|
Torque Increase |
32% |
|
Transmission Type |
S-Control™ CVT, 0–50 km/h ECO or 0–40 km/h ECO, Double Clutch Technology, Active Hold Control, Kick-Down, S-Tronic Management |
|
Fuel Tank Capacity |
601 Litres (Diesel) / 96 Litres (AdBlue) |
|
Service Intervals |
Engine: 750 hours, Blow-By Filter: 1,500 hours |
|
Frame |
4-Pillar Cab, Semi-Active Suspension, 66 dB(A) Noise Level, Slimline Bonnet, One-Piece Windscreen, High-Visibility Roof |
|
Steering |
Hydraulic Load Sensing, Height/Tilt-Adjustable Steering Wheel, 55° Steering Angle, 7.7 m Turning Radius @ 1,930 mm Track Width, QuickTurn II |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Wet Dual Brake Discs (4 Rear), Hydraulic, All-Wheel Brake with Opti-Stop, S-Brake Trailer Brake System, Electronic Parking Brake, Two-Line Compressed Air Braking |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 650/60R34, Rear: 710/75R42, Optional IF/VF Technology, Optional Central Tyre Inflation System (CTIS), Double Tyres Available |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E/1,000/1,000E RPM @ 1,871/1,598/1,853/1,583 RPM, Front: 1,000/1,000E @ 1,886/1,585 RPM, Electrohydraulic Engagement, PTO Management, Progressive Soft Start |
|
PTO Shaft |
1 3/8" 21-Splines, 1 3/8" 6-Splines, 1 3/4" 20-Splines |
|
Hydraulic System |
Closed Centre Load Sensing (CCLS), 165 l/min (Standard) or 220 l/min (Optional), 215 bar, Up to 5 Rear and 3 Mid-Mounted Electrohydraulic Valves, Power Beyond, Configurable Valves |
|
Rear Lift |
11,058 kg, Cat III/IVN, Electronic Hitch Regulation (EHR), Ride Control, High-Speed Tail Hook |
|
Front Lift |
6,016 kg, Remote Operating Switches, Seven-Pin Lighting, 40-A Plug Sockets |
|

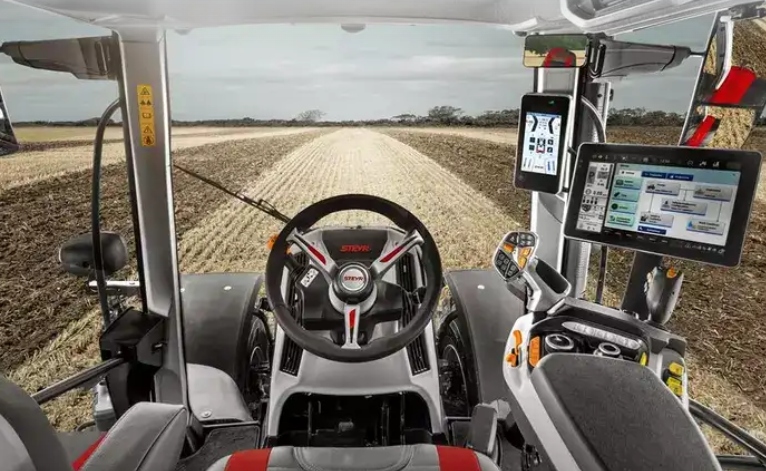

Driving Position |
Dual-Motion Seat, Multicontroller III Armrest (Adjustable in 4 Directions), Infomat 1200 Touchscreen Monitor (52° Pivot), A-Pillar Display with Night Mode, Up to 24 LED Worklights (2,000–2,500 Lumens), Front/Rear Cameras, Wireless Camera, Deluxe/Active Luxury Cab with HVAC, Premium Speakers, Cooled Storage, Toolbox |
|
Precision Farming |
S-Guide (DGPS, RTK+ with 1.5 cm Accuracy, RTK FILL), S-Turn II, ISOBUS II/III, Easy-Tronic II, FieldOps™, Tractor Implement Management (TIM), Section Control |
|
Additional Features |
ECO-Drive™ Levers, Key Fob with Lock/Unlock and Anti-Theft, S-Tech Protect (3 Years/3,000 Hours Warranty), 24/7 Support |
|
Track Width |
Front: 1,858–2,258 mm, Rear: 1,840–2,052 mm (Flange Axle) or 1,840–2,374 mm (Adjustable Bar Axle) |
|
Weight |
11,530 kg (Shipping), 17,200 kg (Permissible Total) |
|
Dimensions |
Length: 5,825 mm, Width: 2,536–2,993 mm, Height: 3,457 mm, Wheelbase: 2,995 mm |
