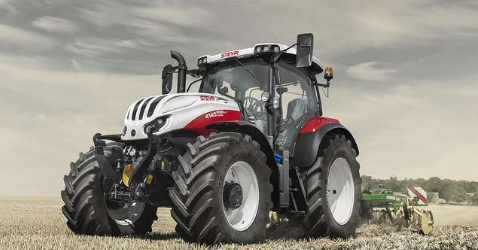

STEYR PROFI 4145 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR PROFI 4145 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel (Compatible with HVO) |
|
Application |
Multi-Purpose Farming, Loader Work, Tillage |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4-Cylinder, 4,486 cm³, Common Rail, Turbocharger, Intercooler, HI-eSCR2, Stage V, Reversible Fan, Engine Exhaust Brake |
|
Maximum Power |
155 HP / 114 kW @ 1,800–1,900 RPM |
|
Rated Power (ECE R120) |
145 HP / 107 kW @ 2,200 RPM |
|
Maximum Power (PowerPlus) |
175 HP / 129 kW |
|
Rated Power (PowerPlus) |
Field: 160 HP / 118 kW, Road: 174 HP / 128 kW |
|
Maximum Torque |
650 Nm @ 1,500 RPM |
|
Maximum Torque (PowerPlus) |
700 Nm @ 1,500 RPM |
|
Torque Increase |
Standard: 40%, PowerPlus: 37% |
|
Transmission Type |
S-Control™ 8, 8-Speed Powershift, 24x24 Gears or 48x48 with Creeper, 40 or 50 km/h, S-Stop II, Pedal Kick-Down, Crawler Speeds up to 190 m/h |
|
Fuel Tank Capacity |
210 Litres (Standard) or 250 Litres (Optional) Diesel / 39.5 Litres AdBlue |
|
Service Intervals |
750 hours |
|
Frame |
4-Pillar Cab (High or Low Roof), Standard or Optional Suspension, 69 dB(A) Noise Level, Slimline Bonnet, Roof Window, Low Mounted Wiper (60% Increased Coverage) |
|
Steering |
Hydraulic Load Sensing, 44° Steering Angle, 4.6 m Turning Radius @ 1,830 mm Track Width, QuickTurn II |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Wet Dual Brake Discs (4 Rear), Hydraulic, All-Wheel Brake with Opti-Stop, Two-Line Compressed Air Braking |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 480/65R28, Rear: 600/65R38, Optional Central Tyre Inflation System (CTIS) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E/1,000 or 540E/1,000/1,000E RPM @ 1,969/1,546/1,893 or 1,592/1,893/1,621 RPM, Front: 1,000 RPM @ 1,895 RPM, Electrohydraulic Engagement, PTO Management, Progressive Soft Start, Stationary PTO |
|
PTO Shaft |
1 3/8" 21-Splines |
|
Hydraulic System |
Closed Centre Load Sensing (CCLS), 150 l/min, Up to 4 Rear and 3 Mid-Mounted Electrohydraulic Valves, Power Beyond, Configurable Valves |
|
Rear Lift |
7,864 kg, Cat III or III N, Electronic Hitch Regulation (EHR), Ride Control |
|
Front Lift |
3,100 kg, Electronic Front Implement Damping, Seven-Pin Lighting, 40-A Plug Sockets |
|

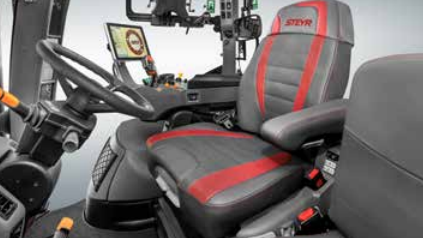

Driving Position |
Dual-Motion Leather Seat (Optional), Multicontroller Armrest, S-TECH 700 Plus Touchscreen Monitor, Advanced Loader Joystick, Up to 20 LED Worklights, Front/Rear Cameras, Air Conditioning or Automatic Climate Control, DAB-Radio, Handsfree Microphone, Cool Box, USB Sockets |
|
Precision Farming |
S-Guide (DGPS, RTK+ with 1.5 cm Accuracy, X-FILL), S-Turn II, ISOBUS II/III, Easy-Tronic II, S-FLEET Telematics, Section Control |
|
Additional Features |
ECO-Drive™ Levers, STEYR S Series Front Loader (U/T Range, 2,366–3,076 kg Lift, 4.02–4.57 m Height), STEYR PROTECT Warranty, 24/7 Support |
|
Dimensions |
Length: 5,137 mm (Standard) or 5,189 mm (Suspended), Width: 2,470 mm, Height: 2,130 mm (Standard Cab) / 2,150 mm (Suspended Cab) / 2,012 mm (Low-Roof Cab) / 2,032 mm (Low-Roof Suspended Cab), Wheelbase: 2,642 mm (Standard) or 2,684 mm (Suspended) |
|
Weight |
4,890 kg (Shipping), 10,500 kg (Permissible Total) |
|
Track Width |
Front: 1,580–2,256 mm, Rear: 1,430–2,134 mm |
