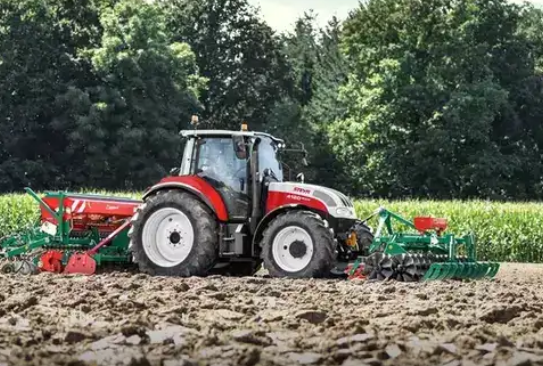

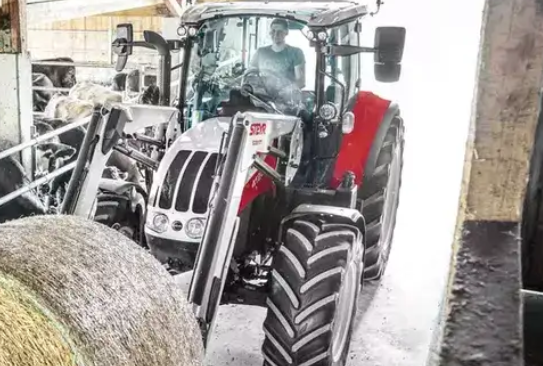

STEYR MULTI 4110 – 4WD Utility Tractor
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR MULTI 4110 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel (Compatible with HVO) |
|
Application |
Multi-Purpose Farming, Loader Work, Tillage |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4-Cylinder, 3,600 cm³, Common Rail, Turbocharger, Intercooler, HI-eSCR2, Stage V |
|
Maximum Power |
110 HP / 81 kW @ 1,900 RPM |
|
Rated Power (ECE R120) |
110 HP / 81 kW @ 2,300 RPM |
|
Maximum Torque |
490 Nm @ 1,300 RPM |
|
Torque Increase |
46% |
|
Transmission Type |
S-Control™ 4, 32x32 Automated 4-Stage Synchromesh, Powershuttle, 0–40 km/h ECO @ 1,730 RPM, Power Clutch, Pack-lock |
|
Fuel Tank Capacity |
145 Litres Diesel / 14 Litres AdBlue |
|
Frame |
4-Pillar Cab, 360° Visibility, 72 dB(A) Noise Level, Optional Heated Windscreen/Rear Window/Mirrors, Engine/Transmission Preheating |
|
Steering |
55° Steering Angle, 4.28 m Turning Radius |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Hydraulic, All-Wheel Drive with Automatic Differential Lock |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Front: 480/65R24, Rear: 540/65R38 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E/1,000/1,000E @ 1,805/1,542/1,880/1,606 RPM, Front: 1,000 @ 1,920 RPM, Electrohydraulic Engagement, Ground Speed PTO |
|
PTO Shaft |
1 3/8" 21-Splines or 1 3/8" 6-Splines |
|
Hydraulic System |
Closed Centre Load Sensing (CCLS), 80 l/min (Optional 100 l/min), 4 Rear + 2 Mid-Mounted Valves |
|
Rear Lift |
5,550 kg (4,700 kg @ 610 mm), Electronic Hitch Control (EHR) |
|
Front Lift |
1,985 kg, Electronic Front Hitch Control (EFH), Implement Strain Relief |
|
Driving Position |
Multicontroller Armrest, 12 Worklights (2 Rear Low-Mounted), Optional Heated Windscreen/Rear Window/Mirrors |
|
Precision Farming |
S-TECH, ISOBUS II, Section Control |
|
Additional Features |
ECOTRONIC, STEYR Front Loader Attachment, STEYR PROTECT Warranty, 24/7 Support |
|
Dimensions |
Length: 4,403 mm, Width: 2,100 mm, Height: 2,740 mm, Wheelbase: 2,420 mm (Standard) or 2,430 mm (Suspended) |
|
Weight |
4,450 kg (Shipping), 8,000 kg (Permissible Total) |
