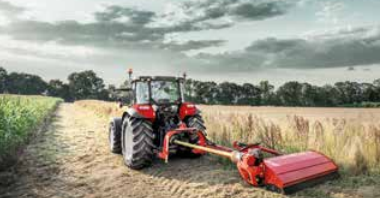

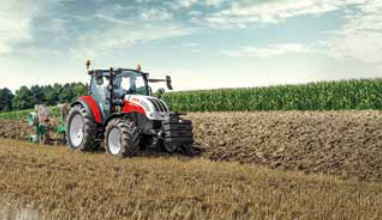

STEYR KOMPAKT 4090 – 4WD Agricultural Tractor for Versatile Operations
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR KOMPAKT 4090 (4WD) |
|
Vehicle Category |
Agricultural Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agriculture, Forestry, Commercial, Municipal Operations, Front-Loader Operations, Farmyard Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT F5, Common rail, Turbocharged with intercooler, HI-eSCR2, 4 cylinders, 3600 cc, Stage V |
|
Rated Horsepower |
90 HP (66 kW) |
|
Maximum Horsepower |
90 HP (66 kW) |
|
Maximum Torque |
380 Nm at 1300 rpm |
|
Torque Increase |
38.7% |
|
Transmission Type |
S-Control M: 12x12 Synchroshift with mechanical shuttle or Powershuttle, 40 kph; S-Control 2: 24x24 2-speed Powershift with Powershuttle, 40 kph; Optional 20x20 or 40x40 creeper |
|
Engine Speed at Max Power |
1900 rpm |
|
Rated Engine Speed |
2300 rpm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Air-suspended, laterally pivoting driver’s seat |
|
Braking System |
4-wheel brake with Opti-Stop, Wet disc brakes, Parking brake (with Powershuttle) |
Wheels & Tyres
|
Specification |
Details |
|
Maximum Tyre Size |
Front: 440/65R24, Rear: 540/65R34 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E/1000 at 1938/1535/1926 rpm, Electrohydraulic or mechanical engagement, Ground speed PTO (optional), Front: 1000 rpm at 1920 engine rpm (optional) |
|
PTO Shaft Type |
1 3/8" 21-splines, 1 3/8" 6-splines |
|
Hydraulic System |
Tandem pump, 64 l/min (hydraulics) + 36 l/min (steering), Maximum pressure 210 bar, Up to 3 rear mechanical control valves, 2 transaxle mechanical control valves |
|
Rear Lift |
Mechanical Draft Control or Electronic Draft Control, Maximum lifting capacity 4400 kg, Quick lift/lower control |
|
Front Lift |
Axle-guided, Maximum lifting capacity 1670 kg, Electronic Front Hitch (EFH) with load relief (optional) |
|
Fuel Tank Capacity |
Diesel: 128.8 L, AdBlue: 9.6 L |
|
Weight |
Permissible total: 6200 kg (Heavy Duty axle) |
|
Dimensions |
Total length: 4147 mm, Width: 1923 mm, Height (min/max): 2494-2569 mm, Wheelbase: 2285 mm, Height from rear axle center to cab top: 1819 mm |
|
Cab Features |
360° visibility with 5.2 m² glass surface, Air conditioning and heating, Multicontroller, High-view window, 200° windscreen wiper, Roof-mounted headlights |
|
Minimum Turning Radius |
4.23 m |
|
Steering Angle |
55° |
|
Track Width |
Front: 1440-1948 mm, Rear: 1411-1937 mm |
