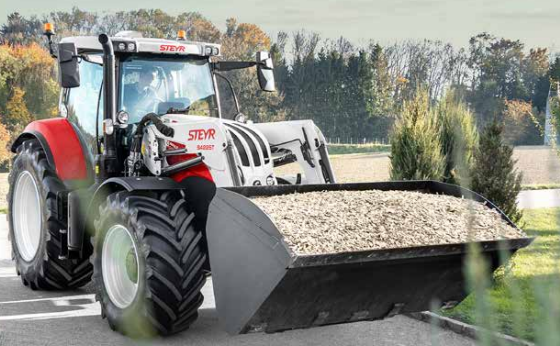

STEYR IMPULS CVT 6175 – 4WD Agricultural Tractor for Large-Scale Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR IMPULS CVT 6175 (4WD) |
|
Vehicle Category |
Agricultural Tractor |
|
Fuel Type |
Diesel, HVO (bio-synthetic diesel) compatible |
|
Application |
Large-Scale Farming, Transport, PTO Operations, Hydraulic Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, Common rail, Turbocharged with intercooler, HI-eSCR2, 6 cylinders, 6728 cc, Stage V |
|
Rated Horsepower |
180 HP (132 kW), 205 HP (151 kW) with PowerPlus |
|
Maximum Horsepower |
200 HP (147 kW), 225 HP (165 kW) with PowerPlus |
|
Maximum Torque |
840 Nm, 940 Nm with PowerPlus at 1500 rpm |
|
Torque Increase |
46% (Standard), 44% (PowerPlus) |
|
Transmission Type |
S-Control CVT, Continuously variable, 0-50 kph or 0-40 kph ECO, Double clutch technology, Active hold control, Kick-down functionality, 50 kph at 1550 rpm |
|
Engine Speed at Max Power |
1800-1900 rpm |
|
Rated Engine Speed |
2200 rpm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Pneumatic cab suspension (Excellence package), Front axle suspension, Dual-Motion driver seat |
|
Braking System |
Wet dual disc brakes (4 on rear axle), S-BRAKE patented trailer brake system, Two-line compressed air braking, Opti-Stop all-wheel brake, Electronic parking brake, Engine exhaust brake |
Wheels & Tyres
|
Specification |
Details |
|
Maximum Tyre Size |
Front: 600/65 R28, Rear: 710/70 R38 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E/1000 or 540E/1000/1000E at 1969/1546/1893 or 1592/1893/1621 rpm, Electrohydraulic engagement, Front: 1000 rpm at 1895 engine rpm, Progressive soft start |
|
PTO Shaft Type |
1 3/8" 21-splines, 1 3/8" 6-splines |
|
Hydraulic System |
CCLS, 140 l/min pump (standard), 160 l/min (optional), Maximum pressure 210 bar, Up to 5 rear and 3 mid-mounted electrical remote valves, Power-Beyond connection |
|
Rear Lift |
Electronic hitch regulation (EHR), Maximum lifting capacity 8257 kg, Category II/III with high-speed tail hook, Ride Control |
|
Front Lift |
Integrated, Maximum lifting capacity 3568 kg, Seven-pin lighting and 40-A plug sockets |
|
Fuel Tank Capacity |
Diesel: 330 L, AdBlue: 48 L |
|
Weight |
Shipping: 6480-6782 kg, Permissible total: 11500 kg |
|
Dimensions |
Max length: 5316 mm, Fender width: 2060-2476 mm, Total height: 3026 mm, Wheelbase: 2789 mm |
|
Cab Features |
4-pillar cab, 69 dB(A) noise level, Mechanical or pneumatic cab suspension, Air conditioning or automatic climate control, Up to 20 LED worklights (2000 lumens), Front/rear cameras, S-TECH 700 Plus touchscreen monitor, Multicontroller armrest, DAB-Radio, Handsfree microphone, Tablet/mobile mount |
|
Precision Farming |
S-Tech: S-GUIDE with 1.5 cm RTK+ precision, S-TURN II, ISOBUS II/III, Easy-Tronic II headland management |
|
Telematics |
S-Fleet: Remote monitoring, Data sharing, Crop/weather monitoring, Machine tracking |
|
Minimum Turning Radius |
5.45 m at track width 1829 mm |
|
Steering Angle |
55° at track width 1829 mm |
|
Track Width |
Front: 1325-2285 mm, Rear: 1430-2230 mm |
