STEYR EXPERT CVT 4140 – 4WD Agricultural Tractor for Compact Performance
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR EXPERT CVT 4140 (4WD) |
|
Vehicle Category |
Agricultural Tractor |
|
Fuel Type |
Diesel, HVO (bio-synthetic diesel) compatible |
|
Application |
Grassland, Arable Fields, Farmyards, Transport, PTO Operations, Hydraulic Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, Common rail, Turbocharged with intercooler, HI-eSCR2, 4 cylinders, 4485 cc, Stage V |
|
Rated Horsepower |
130 HP (96 kW) |
|
Maximum Horsepower |
140 HP (103 kW) |
|
Maximum Torque |
630 Nm at 1400 rpm |
|
Torque Increase |
41% |
|
Transmission Type |
S-Control CVT, Continuously variable, 0-40 kph, Double clutch technology, Active hold control, Kick-down functionality, 40 kph at 1600 rpm |
|
Engine Speed at Max Power |
1700-1900 rpm |
|
Rated Engine Speed |
2200 rpm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Cab suspension, Front axle suspension (optional, standard with Evolution/Excellence), Dual-Motion driver seat, Automatic self-levelling |
|
Braking System |
Wet dual disc brakes, Opti-Stop all-wheel brake, Two-line compressed air braking system, Engine exhaust brake |
Wheels & Tyres
|
Specification |
Details |
|
Maximum Tyre Size |
Front: 480/65R28, Rear: 600/65R38 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540/540E/1000 at 1969/1546/1893 rpm, Electrohydraulic engagement, Progressive soft start, Stationary PTO (optional), Front: 1000 rpm at 1895 engine rpm (optional), Wet clutch |
|
Hydraulic System |
CCLS, 110 l/min pump, Maximum pressure 210 bar, Up to 4 rear (2 mechanical + 2 mechanical/electrical or 3/4 electrohydraulic) and 3 mid-mounted electrical remote valves, Power-Beyond connection |
|
Rear Lift |
Electronic hitch regulation (EHR), Maximum lifting capacity 5600 kg, Category II/III N with high-speed tail hook, Ride Control |
|
Front Lift |
Integrated, Maximum lifting capacity 2300 kg, Electronic front hitch control (optional), Seven-pin lighting and 40-A plug sockets |
|
Fuel Tank Capacity |
Diesel: 180 L, AdBlue: 19 L |
|
Weight |
Shipping: 5500 kg, Permissible total: 8800 kg |
|
Dimensions |
Total length: 4784 mm, Width: 1890-2164 mm, Height (Standard/Low/Panorama roof): 2885/2730/2755 mm, Wheelbase: 2490 mm |
|

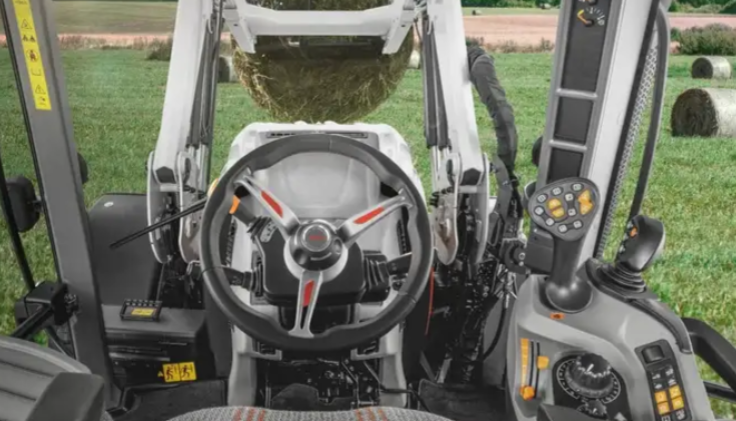

Cab Features |
4-pillar cab, 69 dB(A) noise level, Standard or panorama roof, Automatic air-conditioning, Up to 18 LED worklights (2000 lumens), Multicontroller or Multicontroller II armrest, S-Tech 700 Plus touchscreen monitor, ISOBUS Aux-N |
|
Precision Farming |
S-Tech: S-GUIDE with 1.5 cm RTK+ precision, S-TURN II, ISOBUS II/III, Easy-Tronic II headland management |
|
Telematics |
S-Fleet: Remote monitoring, Data sharing, Crop/weather monitoring, Machine tracking |
|
Minimum Turning Radius |
4.5 m at track width 1830 mm |
|
Steering Angle |
55° at track width 1830 mm |
|
Track Width |
Front: 1446-2154 mm, Rear: 1530-2138 mm |
