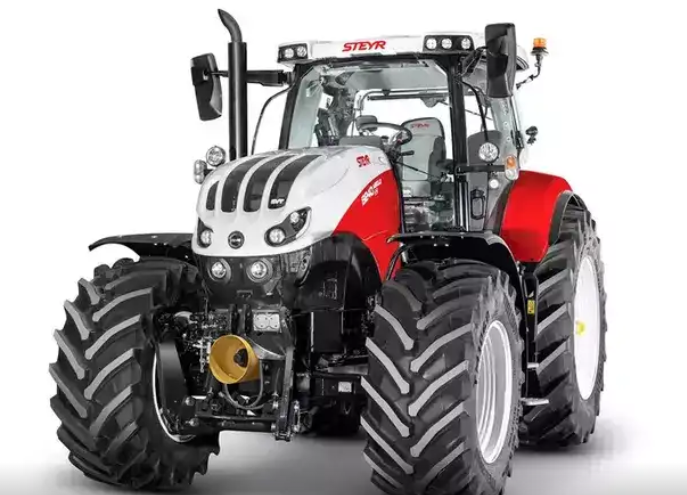

STEYR ABSOLUT CVT 6200 – 4WD Agricultural Tractor for Large-Scale Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
STEYR ABSOLUT CVT 6200 (4WD) |
|
Vehicle Category |
Agricultural Tractor |
|
Fuel Type |
Diesel, HVO (bio-synthetic diesel) compatible |
|
Application |
Large-Scale Farming, Transport, PTO Operations, Hydraulic Applications |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
FPT NEF, Common rail, Turbocharged with e-VGT, Intercooled, HI-eSCR2, 6 cylinders, 6728 cc, Stage V |
|
Rated Horsepower |
180 HP (132 kW), 218 HP (161 kW) with PowerPlus |
|
Maximum Horsepower |
200 HP (147 kW), 224 HP (165 kW) with PowerPlus |
|
Maximum Torque |
Up to 1282 Nm |
|
Transmission Type |
S-Control CVT, Continuously variable, 0-50 kph or 0-40 kph ECO, Double clutch technology, Active hold control, Kick-down functionality |
|
Engine Speed at Max Power |
1800 rpm |
|
Rated Engine Speed |
2200 rpm |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Semi-active cab suspension, Suspended front axle, S-COMFORT synchronized damping |
|
Braking System |
Wet dual disc brakes (4 on rear axle), S-BRAKE patented trailer brake system, Two-line compressed air braking, Opti-Stop all-wheel brake, Engine exhaust brake |
Wheels & Tyres
|
Specification |
Details |
|
Maximum Tyre Size |
Front: 600/65 R28, Rear: 650/65 R42 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Rear: 540E/1000 or 1000/1000E or 540/540E/1000/1000E at 1568/1893/1931/1598/1912/1583 rpm, Electrohydraulic engagement, Front: 1000 rpm at 1900 engine rpm, Progressive soft start |
|
PTO Shaft Type |
1 3/8" 21-splines, 1 3/8" 6-splines, 1 3/4" 20-splines |
|
Hydraulic System |
CCLS, 150 l/min pump (standard), Maximum pressure 215 bar, Up to 5 rear and 3 mid-mounted electrical remote valves, Power-Beyond connection |
|
Rear Lift |
Electronic hitch regulation (EHR), Maximum lifting capacity 10464 kg, Category III with high-speed tail hook, Ride Control |
|
Front Lift |
Integrated, Maximum lifting capacity 5812 kg, Seven-pin lighting and 40-A plug sockets |
|
Fuel Tank Capacity |
Diesel: 383 L (standard), 470 L (optional), AdBlue: 54 L |
|
Weight |
Shipping: 6625-9550 kg, Permissible total: 14400 kg |
|
Dimensions |
Max length: 5467 mm, Fender width: 2360-2750 mm, Total height: 3068 mm, Wheelbase: 2884 mm |
|
Cab Features |
4-pillar cab, 66 dB(A) noise level, +8% volume, +11% glass area, Pressurized HVAC, Up to 24 LED worklights (2000-2500 lumens), Front/rear cameras, Infomat 1200 touchscreen monitor, A-pillar display, Multicontroller III armrest, Key fob with remote locking |
|
Precision Farming |
S-Tech: S-GUIDE with 1.5 cm RTK+ precision, S-TURN II, ISOBUS II/III, Easy-Tronic II headland management |
|
Telematics |
S-Fleet: Remote monitoring, Data sharing, Crop/weather monitoring, Machine tracking |
|
Minimum Turning Radius |
6.1 m at track width 1829 mm |
|
Steering Angle |
55° at track width 1829 mm |
|
Track Width |
Front: 1538-2260 mm, Rear (flange axle): 1530-2230 mm, Rear (bar axle): 1840-2374 mm |
