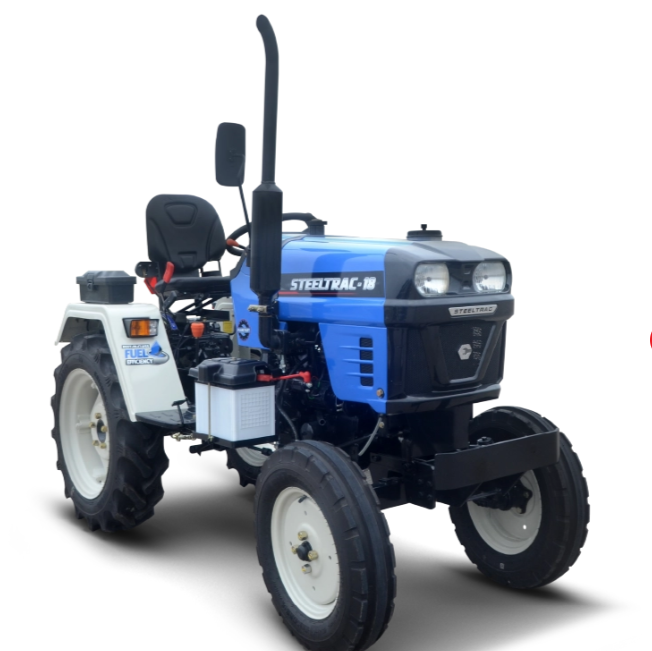

STEELTRAC 18 2WD – 2WD Compact Tractor by FARMTRAC
Specifications
|
Specification |
Details |
|
Tractor Model |
STEELTRAC 18 |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Compact Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
1 |
|
Clutch Type |
Single |
|
Transmission Type |
Synchro Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8F + 2R |
|
Power Range |
12.1 kW (16.2 HP) |
|
Maximum Torque |
61.0 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
5.25 x 14 inch |
|
Rear Tyres |
8 x 18 inch / 8.3 x 20 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
550 kg |
|
PTO RPM |
Standard 540/540E MRPTO |
|
Fuel Tank Capacity |
17.4 L |
|
Front Axle Type |
2WD, Mechanical, Fixed |
|
Rear Axle Type |
Hub Reduction |
|
Power Steering |
Power steering |
|
Overall Length |
2530 mm |
|
Overall Width |
1055 mm |
|
Overall Height |
1397 mm |
|
Ground Clearance |
310 mm |
|
Wheel Base |
1580 mm |
|
Weight |
941 kg |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
