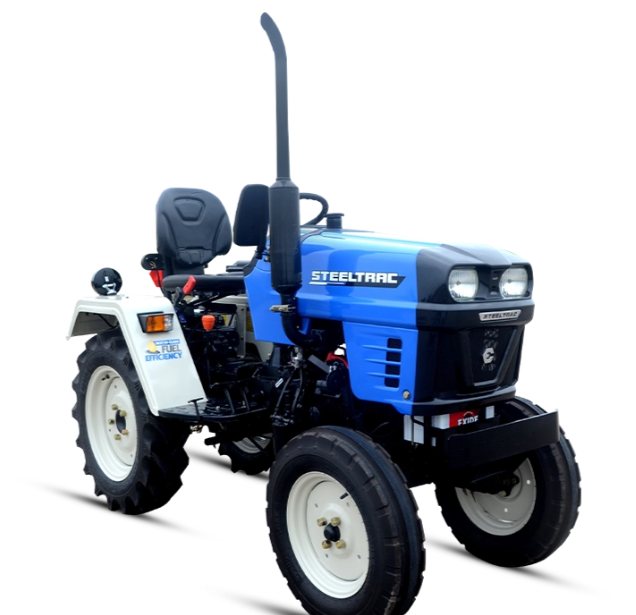

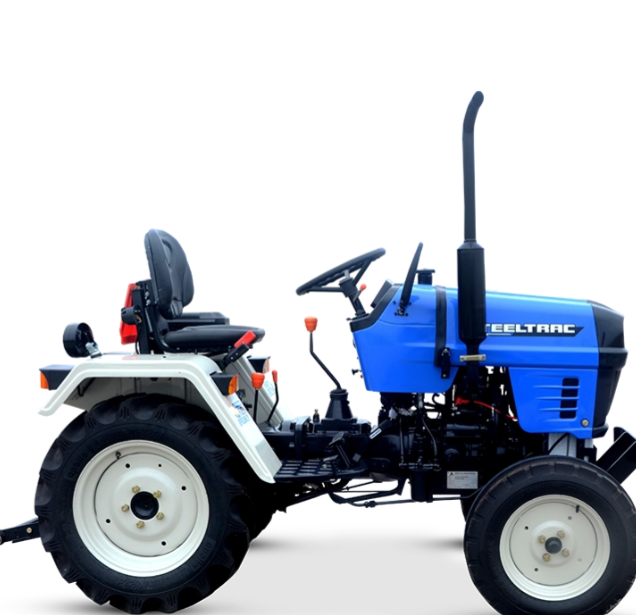

STEELTRAC 15 – 2WD Agricultural Mini Tractor by Powertrac
Specifications
|
Specification |
Details |
|
Tractor Model |
STEELTRAC 15 |
|
Vehicle Category |
2WD Mini Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Mini Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
1 |
|
Engine Power |
8.1 kW (11.0 HP Cat.) |
|
Maximum Torque |
33.0 Nm |
|
Clutch |
Single |
|
Transmission Type |
Synchro Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
13.33 cm x 35.56 cm (5.25 inch x 14 inch) |
|
Rear Tyres |
20.32 cm x 45.72 cm (8 inch x 18 inch) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
550 kg |
|
PTO Speed |
540/540E RPM with MRPTO |
|
Fuel Tank Capacity |
17.4 litres |
|
Front Axle Type |
2WD, Mechanical, Fixed |
|
Rear Axle Type |
Hub Reduction |
|
Overall Width |
1020 mm |
|
Overall Length |
2530 mm |
|
Overall Height |
1380 mm |
|
Ground Clearance |
300 mm |
|
Wheel Base |
1524 mm |
|
Total Weight |
914 kg |
