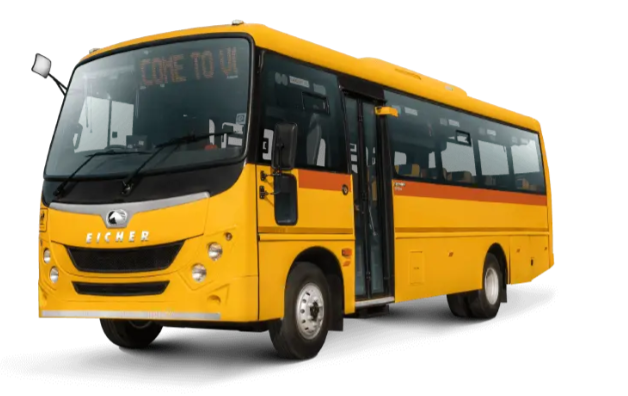

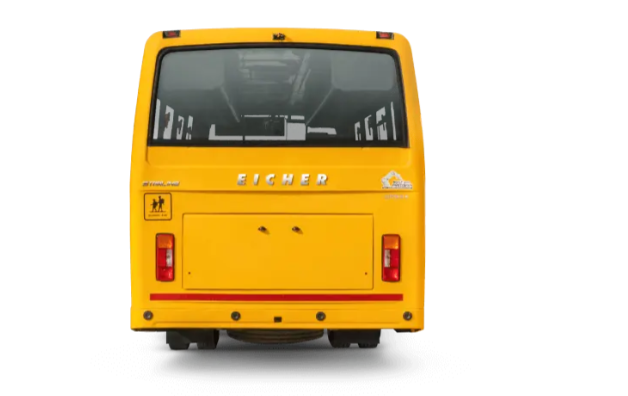

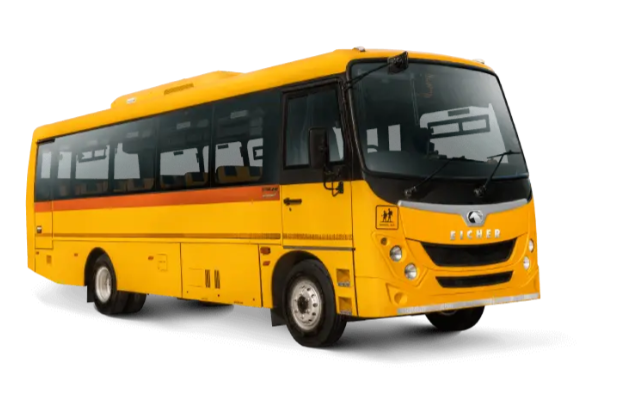

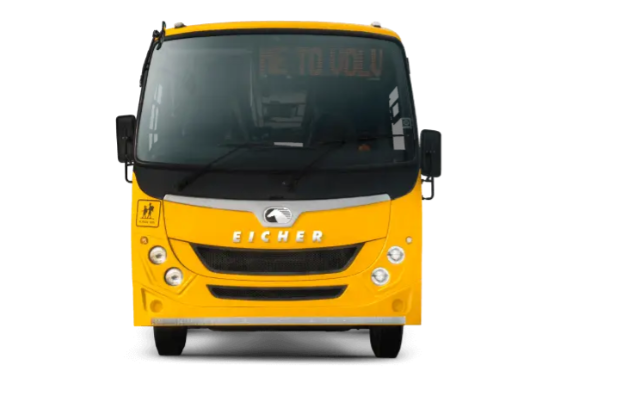

Eicher Starline Next-Gen 2075 H AC Diesel School Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next-Gen 2075 H AC |
|
Seating Capacity |
32+D (2X2 HHR); 40+1+D (3X2) |
|
Wheelbase |
4320 mm |
|
Overall Length |
8112 mm |
|
Overall Width |
2164 mm |
|
Overall Height |
2975 mm |
|
Front Overhang |
1200 mm |
|
Rear Overhang |
2592 mm |
|
Turning Circle Diameter |
16 m |
|
Engine Make |
E474 |
|
Displacement |
2960 cc |
|
Power |
104 kW @ 3200 rpm |
|
Torque |
400 Nm @ 1200 – 2500 rpm |
|
Fuel Type |
Diesel |
|
Max. GVW |
8.15 t |
|
Floor Type |
Button type Vinyl |
|
Application |
school bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Domex 650 |
|
Chassis Dimension |
200X65X5 mm |
|
Clutch |
310 mm |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed+1Rev) |
|
Fuel Tank Capacity |
100 litre |
|
DEF Tank Capacity |
27 litre |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi elliptic |
|
Suspension Rear |
Semi elliptic |
|
Brakes |
Air Brakes with APU |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
7.50x16 – 16 PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Safety |
Fire Detection and Suppression System |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
