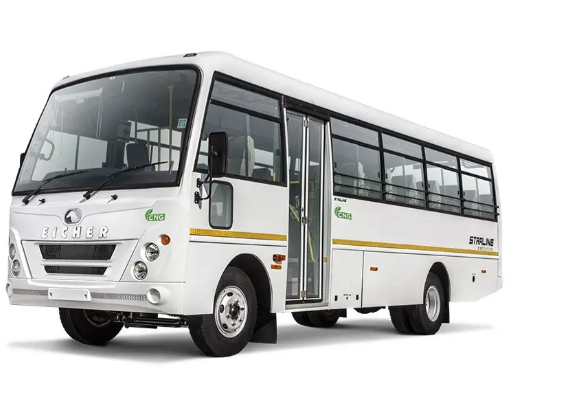

Eicher Starline Next 2090 L CNG Staff Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2090 L CNG |
|
Seating Capacity |
38+1+D |
|
Wheelbase |
5165 mm |
|
Overall Length |
9344 mm |
|
Overall Width |
2160 mm |
|
Overall Height |
2940 mm |
|
Front Overhang |
1080 mm |
|
Rear Overhang |
3099 mm |
|
Engine Make |
E483 TCIC |
|
Displacement |
3298 cc |
|
Power |
85 kW @ 2600 Rpm |
|
Torque |
360 Nm @ 1600-2000 Rpm |
|
Fuel Type |
CNG |
|
Max. GVW |
9.4 t |
|

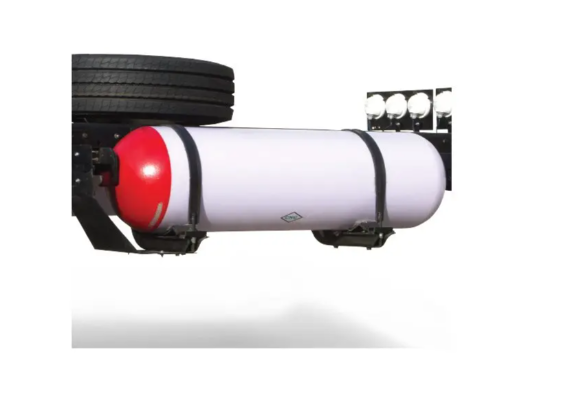

Cylinder Capacity |
480 litres |
|
Cylinder Capacity |
480 litres |
|
Floor Type |
Button vinyl |
|
Application |
staff bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Ladder - Joggle type |
|
Chassis Dimension |
210X65X6 mm |
|
Clutch |
310 mm |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 rev) |
|
Cylinder Capacity |
480 litres |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi elliptic |
|
Suspension Rear |
Semi elliptic |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
8.25 X 16 -16 PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
