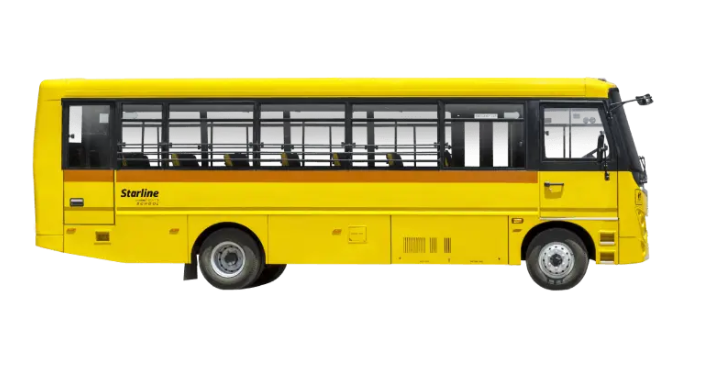

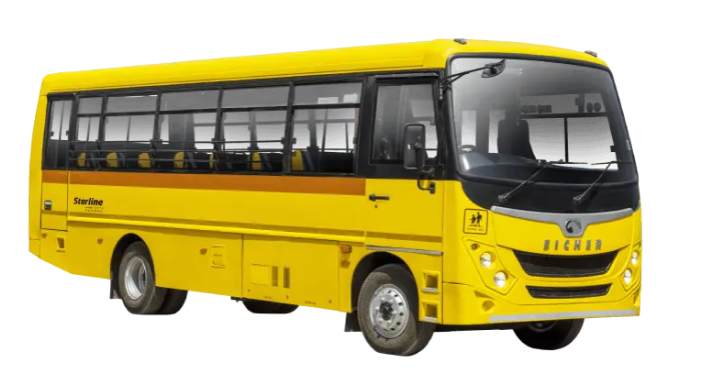

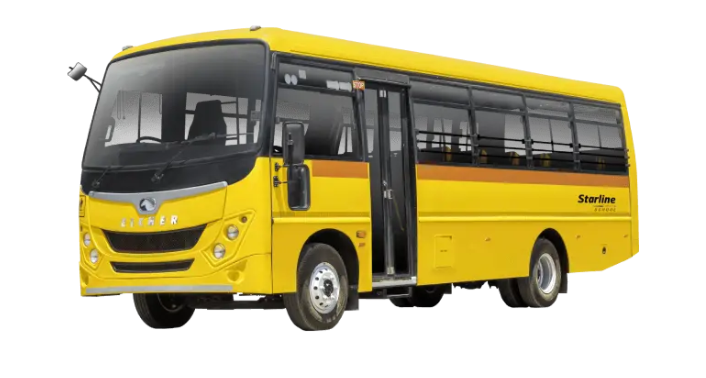

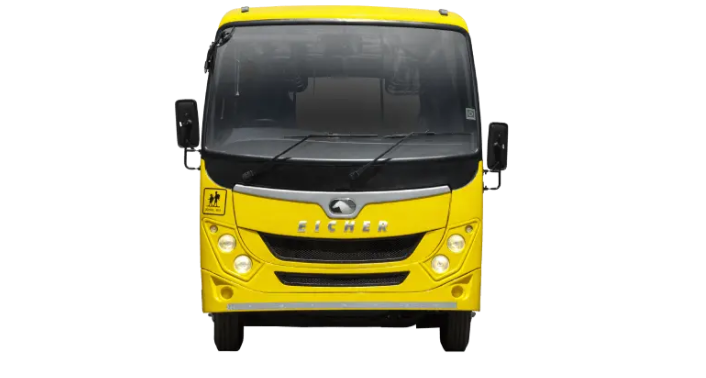

Eicher Starline Next 2065 E Diesel School Bus
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2065 E |
|
Seating Capacity |
25+CD+D (2X2); 30+CD+D (3X2) |
|
Wheelbase |
3515 mm |
|
Overall Length |
6745 mm |
|
Overall Width |
2164 mm |
|
Overall Height |
2765 mm |
|
Front Overhang |
1200 mm |
|
Rear Overhang |
2030 mm |
|
Turning Circle Diameter |
13.8 m |
|
Engine Make |
E366 |
|
Displacement |
1999 cc |
|
Power |
75 kW @ 3200 rpm |
|
Torque |
285 Nm @ 1250 – 2500 rpm |
|
Fuel Type |
Diesel |
|
Max. GVW |
6.5 t |
|
Fuel Tank Capacity |
60 litre |
|
Floor Type |
Button Vinyl |
|
DEF Tank Capacity |
27 litre |
|
Application |
school bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
BSK 46 |
|
Chassis Dimension |
180X60X5 mm |
|
Clutch |
280 mm |
|
Transmission Make |
ET30S5 |
|
Transmission Type |
Synchromesh (5-SPeed+1Rev) |
|
Fuel Tank Capacity |
60 litre |
|
DEF Tank Capacity |
27 litre |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi elliptical |
|
Suspension Rear |
Semi elliptical with ARB |
|
Brakes |
Hydraulic with Disc |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
7.50 X 16 -16 PR |
Components & Features
|
Feature |
Details |
|
Feature: Fuel Efficiency |
Fuel Coaching |
|
Feature: Engine Performance |
MBooster+ |
|
Feature: Driving Control |
Cruise Control |
|
Feature: Telematics |
Eicher Live Telematics System |
|
Feature: Safety |
Seat Belts |
|
Feature: Safety |
Emergency Exit |
|
Feature: Safety |
Fire Detection and Suppression System |
|
Feature: Comfort |
Air Conditioning (AC) Unit |
